GS-R12F Series

Catalog

DC DC CONVERTER 1.235-5.5V

Part	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Applications	Number of Outputs	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Features	Type	Voltage - Output 1 [Min] [custom]	Voltage - Output 1 [Max] [custom]	Package / Case	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]

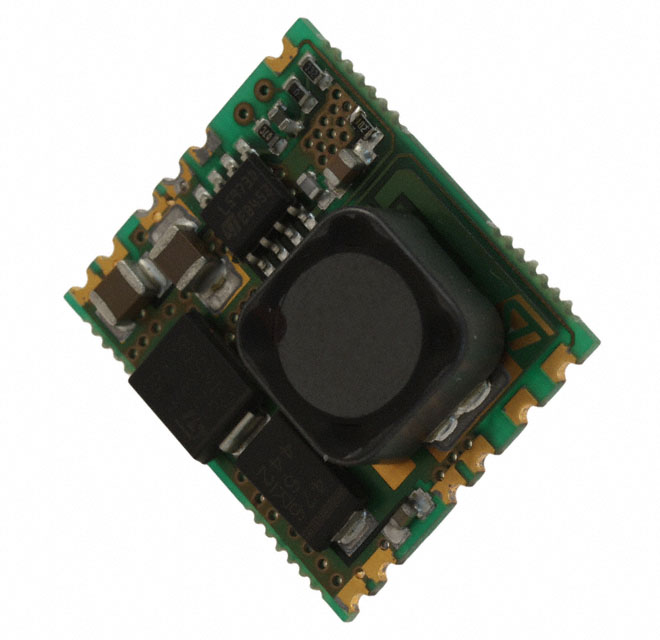

STMicroelectronics GS-R12F0002.0	4.5 V	2 A	15 V	Surface Mount	85 °C	-25 °C	85 %	ITE (Commercial)	1	0.28 " 7 mm	0.89 in 22.6 mm	1.05 " 26.7 mm	OCP OTP OVP Remote On/Off	Non-Isolated PoL Module	1.235 V	5.5 V	12-SMD Module

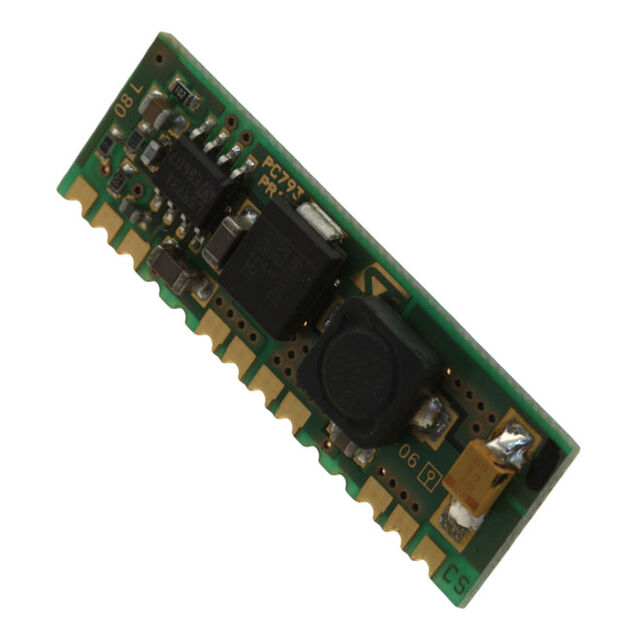

STMicroelectronics GS-R12FS0001.9	4.5 V	1.9 A	15 V	Surface Mount	85 °C	-25 °C	83 %	ITE (Commercial)	1	12.7 mm	4.5 mm	38.7 mm		Non-Isolated PoL Module	1.235 V	5.5 V	10-SMD Module	0.5 in	1.52 in	0.18 in

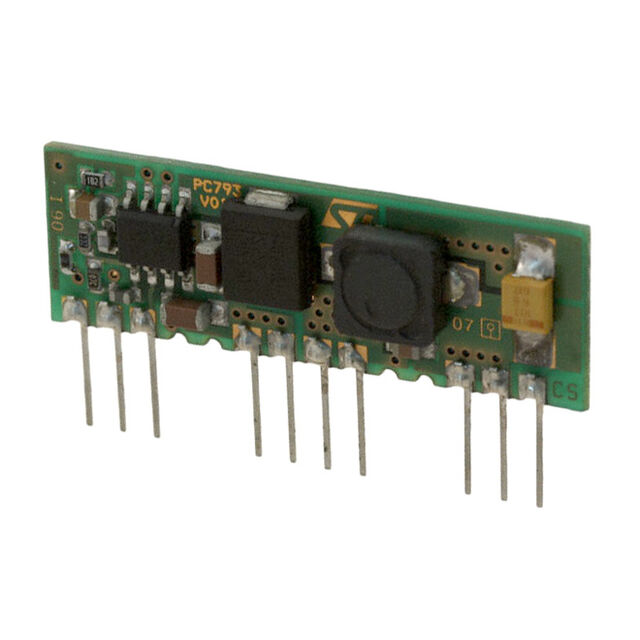

STMicroelectronics GS-R12FV0001.9	4.5 V	1.9 A	15 V	Through Hole	85 °C	-25 °C	83 %	ITE (Commercial)	1	12.7 mm	4.5 mm	38.7 mm		Non-Isolated PoL Module	1.235 V	5.5 V	10-SIP Module	0.5 in	1.52 in	0.18 in
