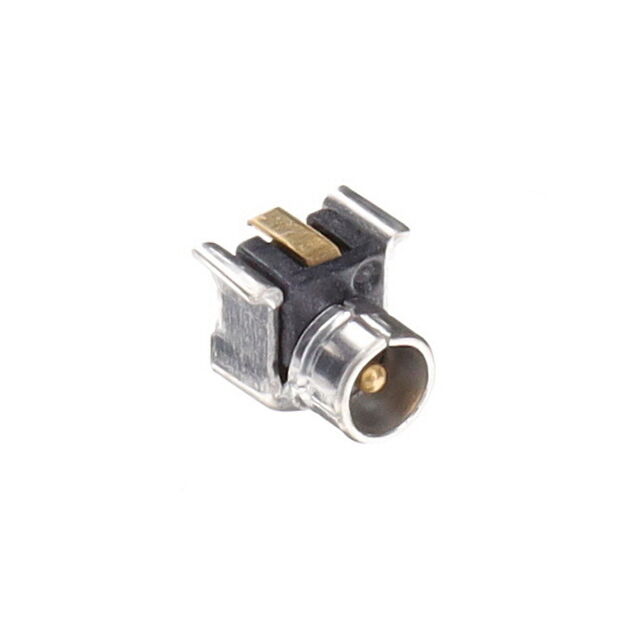

E.FL-LR Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
RF CONNECTORS / COAXIAL CONNECTORS
| Part | Dielectric Material | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Mating Cycles | Body Finish | Center Contact Plating | Fastening Type | Shield Termination | Impedance | Number of Ports | Housing Color | Connector Type | Frequency - Max [Max] | Mounting Type | Contact Termination | Connector Style | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Polybutylene Terephthalate (PBT) | Phosphor Bronze | 90 °C | -40 C | 50 | Gold | Gold | Snap-On | Solder | 50 Ohms | 1 | Gold | Receptacle Female Socket | 2 GHz | Right Angle Surface Mount | Solder | E.FL | Phosphor Bronze |
 Hirose Electric Co Ltd | Liquid Crystal Polymer (LCP) | Phosphor Bronze | 90 °C | -40 C | 50 | Silver | Gold | Snap-On | Solder | 50 Ohms | 1 | Silver | Receptacle Male Pin | 2 GHz | Right Angle Surface Mount | Solder | E.FL | Brass |
