TSM260 Series

Catalog

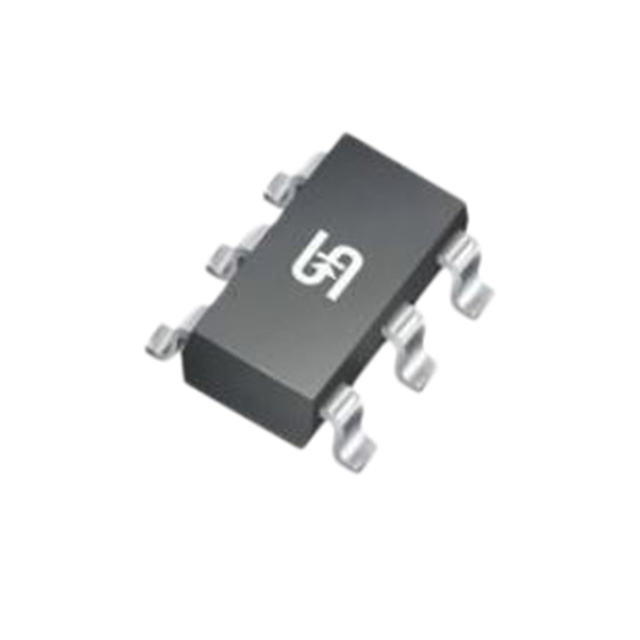

TRANS MOSFET P-CH 20V 6.5A 6-PIN SOT-26 T/R

Part	Supplier Device Package	Vgs (Max)	Rds On (Max) @ Id, Vgs	Input Capacitance (Ciss) (Max) @ Vds [Max]	Vgs(th) (Max) @ Id	Power Dissipation (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	FET Type	Package / Case	Drain to Source Voltage (Vdss)	Technology	Current - Continuous Drain (Id) @ 25°C	Gate Charge (Qg) (Max) @ Vgs	Drive Voltage (Max Rds On, Min Rds On) [Max]	Drive Voltage (Max Rds On, Min Rds On) [Min]	Mounting Type
Taiwan Semiconductor Corporation TSM260P02CX6 RFG	SOT-26	10 V	26 mOhm	1670 pF	1 V	1.56 W	150 °C	-55 °C	P-Channel	SOT-23-6	20 V	MOSFET (Metal Oxide)	6.5 A	19.5 nC	1.8 V	4.5 V	Surface Mount
