ATSAMR30E18A Series

802.15.4 RF Module

Catalog

802.15.4 RF Module

Part	Memory Size	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Frequency	Supplier Device Package	Serial Interfaces	RF Family/Standard	GPIO	Protocol	Type	Power - Output	Current - Transmitting	Current - Receiving	Sensitivity	Data Rate (Max)	Mounting Type	Modulation	Operating Temperature [Max]	Operating Temperature [Min]
Microchip Technology ATSAMR30M18A-I/RM100	40 kB 256 kB	25-SMD Module	3.6 V	1.8 V	700 MHz 800 MHz 900 MHz	Module	ADC I2C USB	802.15.4	16	6LoWPAN Zigbee®	TxRx + MCU
Microchip Technology ATSAMR30E18A-MUT	40 kB 256 kB	32-VFQFN Exposed Pad	3.6 V	1.8 V	700 MHz 800 MHz 900 MHz	32-VQFN (5x5)	I2C SPI	802.15.4	16		TxRx + MCU	11 dBm	26.5 mA	9.2 mA	-110 dBm	1 Mbps	Surface Mount	BPSK O-QPSK	85 °C	-40 °C

Catalog

802.15.4 RF Module

Key Features

• * Compact 802.15.4 Sub-GHz module

• * ATSAMR30E18A SiP with ARM Cortex-M0+ MCU and Sub-GHz transceiver

• * Integrated Ultra Low Power Transceiver for 700/800/900MHz ISM band

• * 256 KB Flash

• * 16 Input/Output pins

• * Maximum operating frequency 48 MHz

• * 128-bit Advanced Encryption Standard (AES) crypto engine

• * 32-bit Medium Access Control (MAC) symbol counter

• * Automatic retransmission modes

• * Single 1.8V - 3.6V supply

• * FCC / ETSI compliant RF front end with harmonic filter

• * Two Serial Communication interface (SERCOM) units left for external applications

• * High precision 16 MHz crystal oscillator

• * 12-bit, 350 ksps Analog-to-Digital Converter (ADC)

• * I2C up to 3.4 MHz

• * Full-speed (12 Mbps) Universal Serial Bus (USB) 2.0 interface

• * 16 External General Purpose Input/Output (GPIO) lines

Description

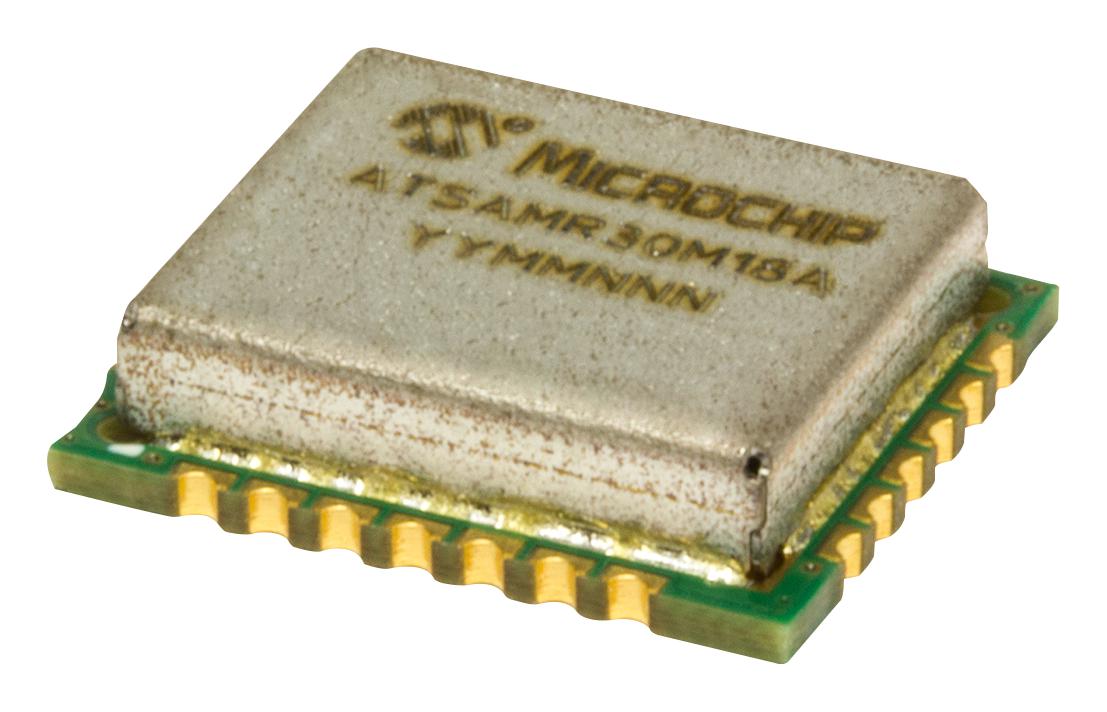

The ATSAMR30M18A is the world's most compact 802.15.4 Sub-GHz module for the IoT. It operates in the 780 MHz (China), 868 MHz (Europe) and 915 MHz (North America) Sub-GHz frequency bands, and is optimized for low power applications such as wireless sensors, building and home automation devices, alarms and industrial networks. The module combines the ATSAMR30E18A SiP (System-in Package) with Cortex M0+ MCU with 256KB Flash, 40KB RAM and a Sub-GHz radio, all in a compact, regulatory-certified 12.7mm x 11.0mm design. It supports IEEE 802.15.4 PHY based protocols such as 6LoWPAN, zigbee, and Microchip's own MiWi Networking protocols for self-healing Point-to-point, Star and Mesh networking. For ease of development, the ATSAMR30M18A is available in a fully-certified Xplained Pro development board. There is also a free MiWi Networking protocol stack, and community support for 6LoWPAN. Microchip's complimentary and confidential [Wireless Check online design review service](https://www.microchip.com/design-check-services) is available for customers who have selected our products for their application design-in\*. \*The online design review service is subject to Microchip's [Program Terms and Conditions](https://www.microchip.com/design-check-services-program-terms-and-conditions) and requires a myMicrochip account.
