LF13WBP Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

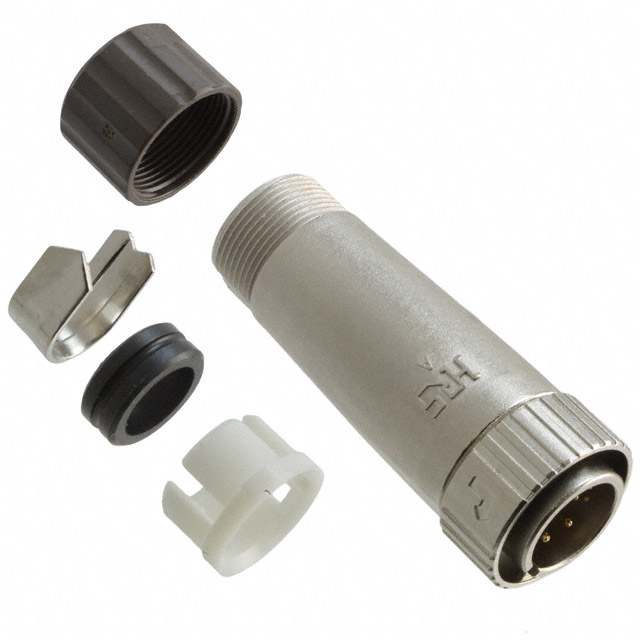

CONN PLUG MALE 20P GOLD SLDR CUP
| Part | Shell Material | Operating Temperature [Max] | Operating Temperature [Min] | Color | Mounting Type | Voltage Rating | Insert Material | Number of Positions | Applications | Material Flammability Rating | Shell Finish | Current Rating (Amps) | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Connector Type | Shell Size - Insert [custom] | Primary Material | Contact Material | Fastening Type | Orientation | Ingress Protection | Contact Finish - Mating | Backshell Material, Plating | Shielding | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Zinc Alloy | 85 °C | -25 °C | Brown Silver | Free Hanging (In-Line) | 30 VAC 42 VDC | Polyphenylene Sulfide (PPS) | 20 | Industrial Telecommunications | UL94 V-0 | Nickel | 2 A | 8 µin | 0.203 µm | Plug Male Pins | 13 | Metal | Copper Alloy | Bayonet Lock | Keyed | IP67/IP68 | Gold | Nickel Zinc Alloy | Shielded | Backshell Clamp Coupling Nut Strain Relief |
