A3E-44PA Series

Catalog

CONN HEADER VERT 44POS 2MM

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Post	Contact Length - Post	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Contact Finish - Mating	Number of Positions Loaded	Insulation Height	Insulation Height	Insulation Material	Contact Type	Insulation Color	Style	Termination	Current Rating (Amps)	Contact Finish - Post	Contact Shape	Voltage Rating	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Features	Number of Rows [custom]	Pitch - Mating	Pitch - Mating	Shrouding	Material Flammability Rating	Contact Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]
Hirose Electric Co Ltd A3E-44PA-2DSA	78.7 µin	2 µm	44	2 mm	0.079 in	0.118 in	3 mm	-55 C	85 °C	Push-Pull	Gold	All	7.87 mm	0.31 in	Nylon Polyamide (PA)	Male Pin	Black	Board to Board Cable	Solder	0.5 A	Tin	Square	12 VDC	Through Hole	8 µin	0.203 µm	Header	Keying Slot	2	0.079 "	2 mm	Shrouded - 4 Wall	UL94 V-0	Brass
Hirose Electric Co Ltd A3E-44PA-2DSA(51)			44			0.118 in	3 mm	-55 C	85 °C	Push-Pull	Gold	All	7.87 mm	0.31 in	Nylon Polyamide (PA)	Male Pin	Black	Board to Board Cable	Solder	500 mA		Square	125 VAC	Through Hole			Header		2	0.079 "	2 mm	Shrouded - 4 Wall	UL94 V-0	Brass	0.1 in	2.54 mm
Hirose Electric Co Ltd A3E-44PA-2DSA(81)	78.7 µin	2 µm	44	2 mm	0.079 in	0.118 in	3 mm	-55 C	85 °C	Push-Pull	Gold	All	7.87 mm	0.31 in	Nylon Polyamide (PA)	Male Pin	Black	Board to Board Cable	Solder	0.5 A	Tin	Square	12 VDC	Through Hole	8 µin	0.203 µm	Header	Keying Slot	2	0.079 "	2 mm	Shrouded - 4 Wall	UL94 V-0	Brass
Hirose Electric Co Ltd A3E-44PA-2DSA(78)	78.7 µin	2 µm	44	2 mm	0.079 in	0.118 in	3 mm	-55 C	85 °C	Push-Pull	Gold	All	7.87 mm	0.31 in	Nylon Polyamide (PA)	Male Pin	Black	Board to Board Cable	Solder	0.5 A	Tin	Square	12 VDC	Through Hole	8 µin	0.203 µm	Header	Keying Slot	2	0.079 "	2 mm	Shrouded - 4 Wall	UL94 V-0	Brass

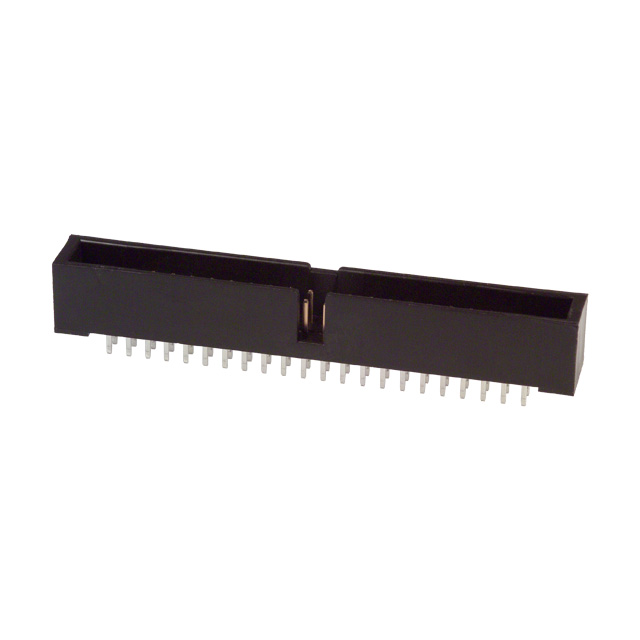

Hirose Electric Co Ltd A3E-44PA-2DSA(71)	78.7 µin	2 µm	44	2 mm	0.079 in	0.118 in	3 mm	-55 C	85 °C	Push-Pull	Gold	All	7.87 mm	0.31 in	Nylon Polyamide (PA)	Male Pin	Black	Board to Board Cable	Solder	0.5 A	Tin	Square	12 VDC	Through Hole	8 µin	0.203 µm	Header	Keying Slot	2	0.079 "	2 mm	Shrouded - 4 Wall	UL94 V-0	Brass
