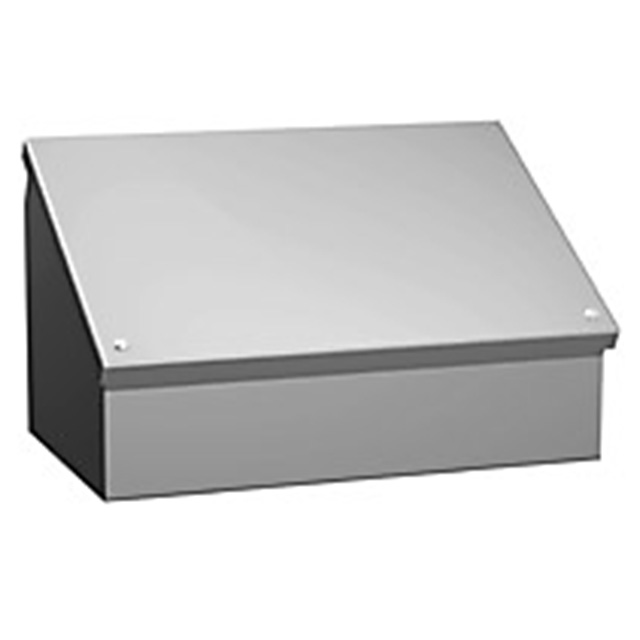

1488 Series

Catalog

METAL ENCLOSURE, HINGED COVER, INSTRUMENT, STEEL, 181.9 MM, 313 MM, 189 MM, IP54

Part	Weight	Weight	Design	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Color	Area (L x W) [custom]	Area (L x W) [custom]	Material	Features	Features	Thickness	Height [z]	Height [z]	Container Type	Ratings	Area (L x W)	Area (L x W)	Weight [custom]	Weight [custom]	Height	Height
Hammond Manufacturing 1488EH7	11 lbs	5 kg	Hinged Lid Slanted Top	8 "	304.8 mm	12 "	203.2 mm	Gray	619 cm²	96 in²	Metal Steel	Slope	30 ° 60 °	14 Gauge	7.16 in	181.86 mm	Console	IP54 NEMA 12 NEMA 13 UL-508
Hammond Manufacturing 1488HJ9			Hinged Lid Slanted Top	12 in	406.4 mm	16 in	304.8 mm	Gray			Metal Steel	Slope	30 ° 60 °	14 Gauge	9.16 in	232.66 mm	Console	IP54 NEMA 12 NEMA 13 UL-508	1239 cm²	192 in²
Hammond Manufacturing 1488JN11			Hinged Lid Slanted Top	16 "	609.6 mm	24 in	406.4 mm	Gray			Metal Steel	Slope	30 ° 60 °	14 Gauge			Console	IP54 NEMA 12 NEMA 13 UL-508	2477 cm²	384 in²	39 lbs	17.7 kg	283.46 mm	11.16 in
Hammond Manufacturing 1488LQ13	47 lbs	21.3 kg	Hinged Lid Slanted Top	20 "	762 mm	30 in	508 mm	Gray	3871 cm²	600 in²	Metal Steel	Slope	30 ° 60 °	14 Gauge	13.16 in	334.26 mm	Console	IP54 NEMA 12 NEMA 13 UL-508
Hammond Manufacturing 1488LL13			Hinged Lid Slanted Top	20 "	508 mm	20 "	508 mm	Gray			Metal Steel	Slope	30 ° 60 °	14 Gauge	13.16 in	334.26 mm	Console	IP54 NEMA 12 NEMA 13 UL-508	2581 cm²	400 in²	37 lbs	16.8 kg
Hammond Manufacturing 1488LN13			Hinged Lid Slanted Top	20 "	609.6 mm	24 in	508 mm	Gray			Metal Steel	Slope	30 ° 60 °	14 Gauge	13.16 in	334.26 mm	Console	IP54 NEMA 12 NEMA 13 UL-508	3097 cm²	480 in²	44 lbs	20 kg
