BM5115 Series

Catalog

FAN BLOWER 51X15MM 12VDC WIRE

Part	Voltage Range [Max]	Voltage Range [Min]	Material - Frame	Current Rating (Amps)	Material - Blade	Bearing Type	Termination	RPM	Approval Agency	Air Flow	Air Flow	Weight [diameter]	Weight [diameter]	Static Pressure	Static Pressure	Size / Dimension [x]	Size / Dimension	Size / Dimension [y]	Width [y]	Fan Type	Voltage - Rated	Noise	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Features	Air Flow
NMB TECHNOLOGIES BM5115-04W-B59-L50	13.8 VDC	12 VDC	Plastic	0.18 A	Plastic	Ball	3 Wire Leads	5500 RPM	CE CSA UL VDE	0.098 mł/min	3.5 CFM	0.055 lb	24.95 g	0.803 in H2O	200 Pa	51 mm	Square/Rounded	51 mm	15 mm	Blower	12 VDC	42 dB	70 °C	-10 °C	2.16 W	Speed Sensor (Tach)
NMB TECHNOLOGIES BM5115-04W-B39-L00	13.8 VDC	12 VDC	Plastic	60 mA	Plastic	Ball	3 Wire Leads	3500 RPM	CE CSA UL VDE			0.055 lb	24.95 g	0.241 in H2O	60 Pa	51 mm	Square/Rounded	51 mm	15 mm	Blower	12 VDC	26 dB	70 °C	-10 °C	720 mW	Locked Rotor Sensor

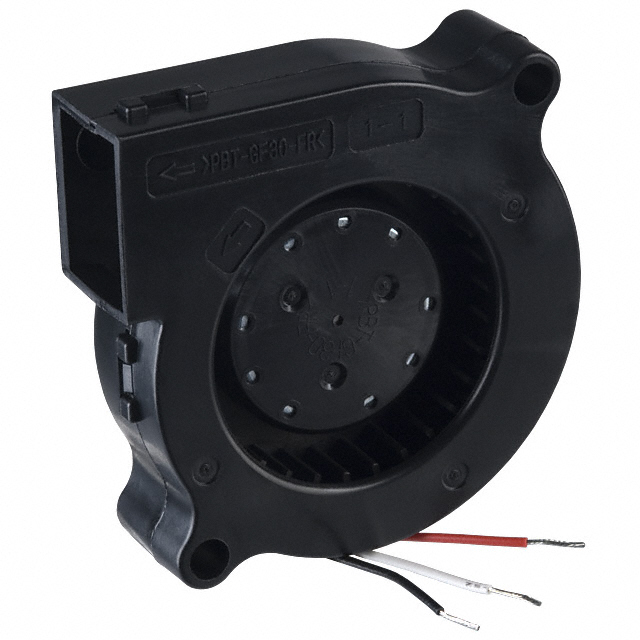

NMB TECHNOLOGIES BM5115-04W-B59-L00	13.8 VDC	10.2 VDC	Plastic	0.18 A	Plastic	Ball	3 Wire Leads	5500 RPM	CE CSA UL VDE	0.098 mł/min	3.5 CFM	0.055 lb	24.95 g	0.803 in H2O	200 Pa	51 mm	Square/Rounded	51 mm	15 mm	Blower	12 VDC	42 dB	70 °C	-10 °C	2.16 W	Locked Rotor Sensor
NMB TECHNOLOGIES BM5115-04W-B39-L50	13.8 VDC	12 VDC	Plastic	60 mA	Plastic	Ball	3 Wire Leads	3500 RPM	CE CSA UL VDE			0.055 lb	24.95 g	0.241 in H2O	60 Pa	51 mm	Square/Rounded	51 mm	15 mm	Blower	12 VDC	26 dB	70 °C	-10 °C	720 mW	Speed Sensor (Tach)
NMB TECHNOLOGIES BM5115-04W-B49-L50	13.8 VDC	12 VDC	Plastic	120 mA	Plastic	Ball	3 Wire Leads	4500 RPM	CE CSA UL VDE	0.078 mł/min	2.8 CFM	0.055 lb	24.95 g			51 mm	Square/Rounded	51 mm	15 mm	Blower	12 VDC	35 dB	70 °C	-10 °C	1.44 W	Speed Sensor (Tach)	2.8 CFM
