UM-QJ-1.5 Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
RF CONNECTORS / COAXIAL CONNECTORS
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Dielectric Material | Center Contact Plating | Mating Cycles | Body Finish | Number of Ports | Housing Color | Connector Style | Center Contact Material | Fastening Type | Frequency - Max [Max] | Shield Termination | Cable Group | Mounting Type | Contact Termination | Impedance | Connector Type | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | 85 °C | -30 ░C | Brass | Polytetrafluoroethylene (PTFE) | Gold | 500 | Nickel | 1 | Silver | U.FL (UMCC) | Brass | Snap-On | 3 GHz | Crimp | 1.5D-2V | Free Hanging (In-Line) | Solder | 50 Ohms | Jack Male Pin | |

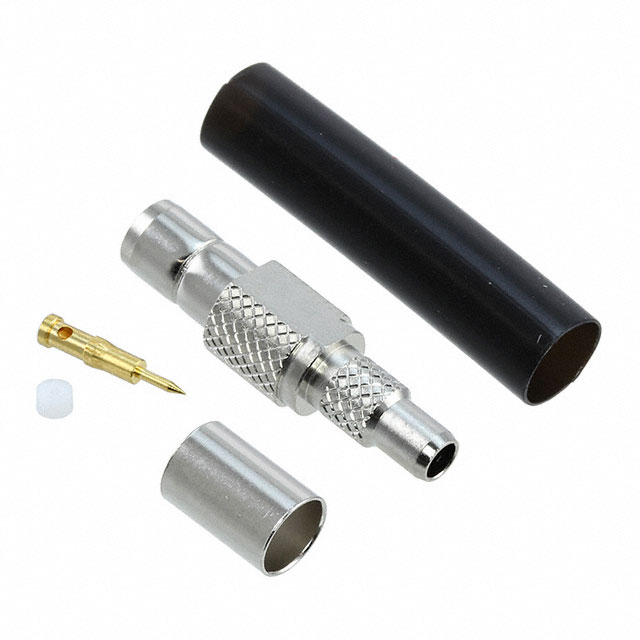

 Hirose Electric Co Ltd | 85 °C | -30 ░C | Brass | Polytetrafluoroethylene (PTFE) | Gold | 1000 | Nickel | 1 | Silver | U.FL (UMCC) | Brass | Snap-On | 2 GHz | Crimp | Free Hanging (In-Line) | Solder | 50 Ohms | Jack Male Pin | 1 Connector 1 Heat Shrink |
