395-069 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SINGLE FML 69POS 0.100
| Part | Material - Insulation | Termination Rows | Termination | Read Out | Mounting Type | Number of Positions | Color | Card Thickness [Max] | Card Thickness [Min] | Contact Finish | Number of Positions/Bay/Row [custom] | Card Type | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Gender | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Pitch | Pitch | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

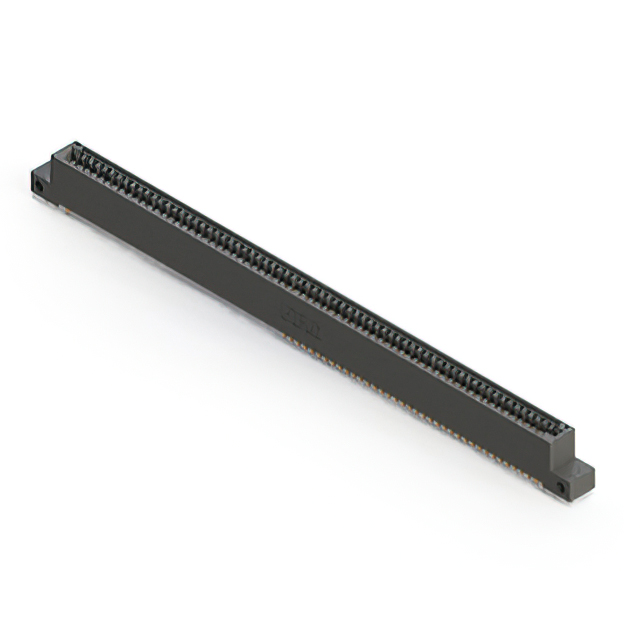

 EDAC Inc. | Polyester Thermoplastic | 1 | Wire Wrap | Single | Through Hole | 69 | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 69 | Non Specified - Single Edge | Copper Alloy | 0.25 Ám | 10 Áin | Cantilever | Female | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | 0.1 " | 2.54 mm | 1 | -40 C | 105 ░C | |

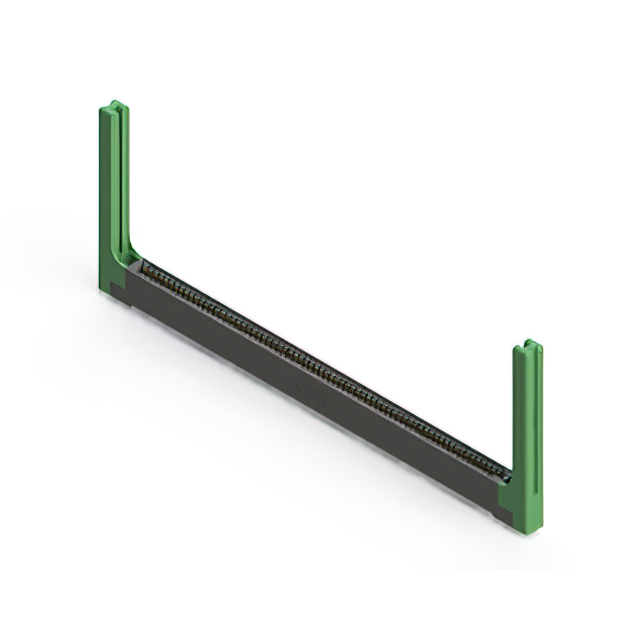

 EDAC Inc. | Polyester Thermoplastic | 1 | Solder | Single | Through Hole | 69 | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 69 | Non Specified - Single Edge | Copper Alloy | 0.25 Ám | 10 Áin | Cantilever | Female | 4-40 Flush Mount Threaded Insert Top Opening | 0.1 " | 2.54 mm | 1 | -40 C | 105 ░C | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Solder | Single | Right Angle Through Hole | 69 | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 69 | Non Specified - Single Edge | Copper Alloy | 0.25 Ám | 10 Áin | Cantilever | Female | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.128 " | 0.1 " | 2.54 mm | 1 | -40 C | 105 ░C | |
 EDAC Inc. | Polyester Thermoplastic | 1 | Wire Wrap | Single | Through Hole | 69 | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 69 | Non Specified - Single Edge | Copper Alloy | 0.25 Ám | 10 Áin | Cantilever | Female | 4-40 Threaded Insert Top Mount Opening | 0.1 " | 2.54 mm | 1 | -40 C | 105 ░C | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Wire Wrap | Single | Through Hole | 69 | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 69 | Non Specified - Single Edge | Copper Alloy | 0.25 Ám | 10 Áin | Cantilever | Female | Flush Mount M3 Threaded Insert Top Opening | 0.1 " | 2.54 mm | 1 | -40 C | 105 ░C | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Solder | Single | Through Hole | 69 | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 69 | Non Specified - Single Edge | Copper Alloy | 0.25 Ám | 10 Áin | Cantilever | Female | 4-40 Threaded Insert Top Mount Opening | 0.1 " | 2.54 mm | 1 | -40 C | 105 ░C | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Solder | Single | Through Hole | 69 | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 69 | Non Specified - Single Edge | Copper Alloy | 0.25 Ám | 10 Áin | Cantilever | Female | 3.96 mm | 0.156 " | 0.1 " | 2.54 mm | 1 | -40 C | 105 ░C | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Solder | Single | Through Hole | 69 | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 69 | Non Specified - Single Edge | Copper Alloy | 0.25 Ám | 10 Áin | Cantilever | Female | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.128 " | 0.1 " | 2.54 mm | 1 | -40 C | 105 ░C | |
 EDAC Inc. | Polyester Thermoplastic | 1 | Wire Wrap | Single | Through Hole | 69 | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 69 | Non Specified - Single Edge | Copper Alloy | 0.25 Ám | 10 Áin | Cantilever | Female | 4-40 Threaded Insert Top Mount Opening | 0.1 " | 2.54 mm | 1 | -40 C | 105 ░C | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Solder | Single | Through Hole | 69 | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 69 | Non Specified - Single Edge | Copper Alloy | 0.25 Ám | 10 Áin | Cantilever | Female | Side Mount Opening Unthreaded | 3.25 mm | 0.128 " | 0.1 " | 2.54 mm | 1 | -40 C | 105 ░C |
