A3-10DA Series

Catalog

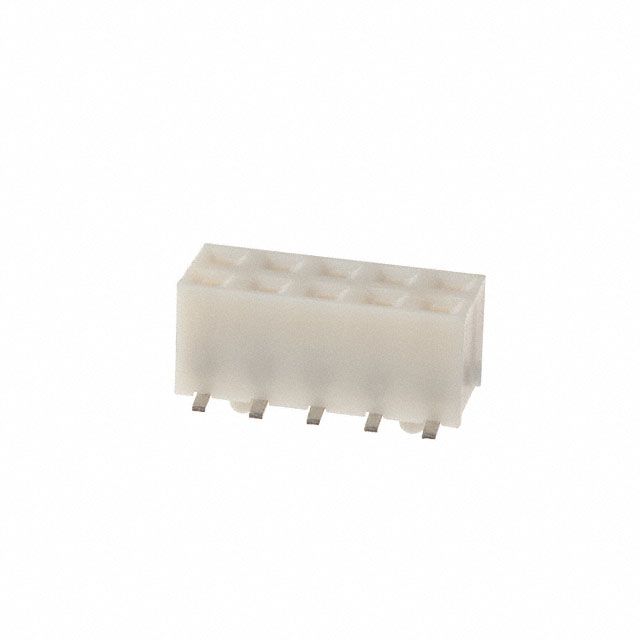

CONN RCPT 10POS 0.079 GOLD SMD

Part	Insulation Material	Contact Shape	Applications	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Style	Termination	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Mated Stacking Heights	Mounting Type	Connector Type	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Voltage Rating	Insulation Color	Contact Finish - Post	Number of Positions Loaded	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Contact Type	Number of Rows [custom]	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mated Stacking Heights [z]	Shrouding	Contact Length - Mating	Contact Length - Mating
Hirose Electric Co Ltd A3-10DA-2SV	Polyphenylene Sulfide (PPS)	Square	General Purpose Telecommunications	Phosphor Bronze	39.4 çin	1 çm	Board to Board Cable	Solder	0.165 in	4.2 mm	-55 C	85 °C	10	5.1 mm 6 mm	Surface Mount	Receptacle	2 mm	0.079 in	Push-Pull	200 VAC	Brown	Tin	All	Gold	0.079 "	2 mm	Female Socket	2	UL94 V-0	8 µin	0.203 µm
Hirose Electric Co Ltd A3-10PA-2SV	Polyphenylene Sulfide (PPS)	Square		Brass			Board to Board Cable	Solder	0.071 in	1.8 mm	-55 C	85 °C	10		Surface Mount	Header	2 mm	0.079 in	Push-Pull	200 V	Brown		All	Gold	0.079 "	2 mm	Male Pin	2	UL94 V-0			6 mm 8.8 mm	Unshrouded	3.5 mm	0.138 in
Hirose Electric Co Ltd A3-10DA-2SV(71)	Polyphenylene Sulfide (PPS)	Square	General Purpose Telecommunications	Phosphor Bronze	39.4 çin	1 çm	Board to Board Cable	Solder	0.165 in	4.2 mm	-55 C	85 °C	10	5.1 mm 6 mm	Surface Mount	Receptacle	2 mm	0.079 in	Push-Pull	200 VAC	Brown	Tin	All	Gold	0.079 "	2 mm	Female Socket	2	UL94 V-0	8 µin	0.203 µm
