ADCMP565 Series
Manufacturer: Analog Devices
Beta
⌘K
DUAL ULTRAFAST VOLTAGE COMPARATOR (FORMERLY THE AD53519)
| Part | Package / Case | Propagation Delay (Max) [Max] | Number of Elements | Output Type | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Current - Quiescent (Max) [Min] | Current - Quiescent (Max) [Max] | Hysteresis | Current - Output (Typ) | Current - Input Bias (Max) | Type | Voltage - Supply, Single/Dual (±) [Min] | Voltage - Supply, Single/Dual (±) [Max] | CMRR, PSRR (Typ) | Function | Supplied Contents | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices | 20-LCC (J-Lead) | 0.375 ns | 2 | Complementary Differential ECL Open-Emitter | 20-PLCC (9x9) | 85 °C | -40 °C | Surface Mount | 18 mA | 80 mA | ±1mV | 30 mA | 40 µA | with Latch | -4.75 V | 5.25 V | 69 dB | ||||

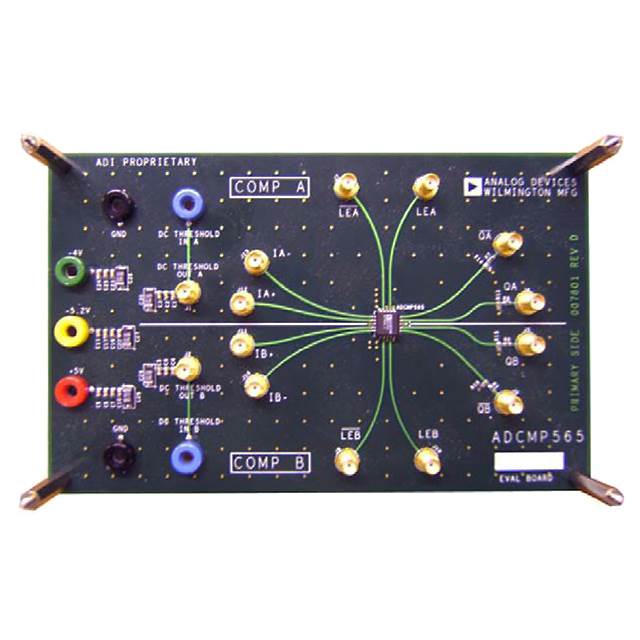

 Analog Devices | Interface | Comparator | Board(s) | ADCMP565 | Board(s) |
