06025VA Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K

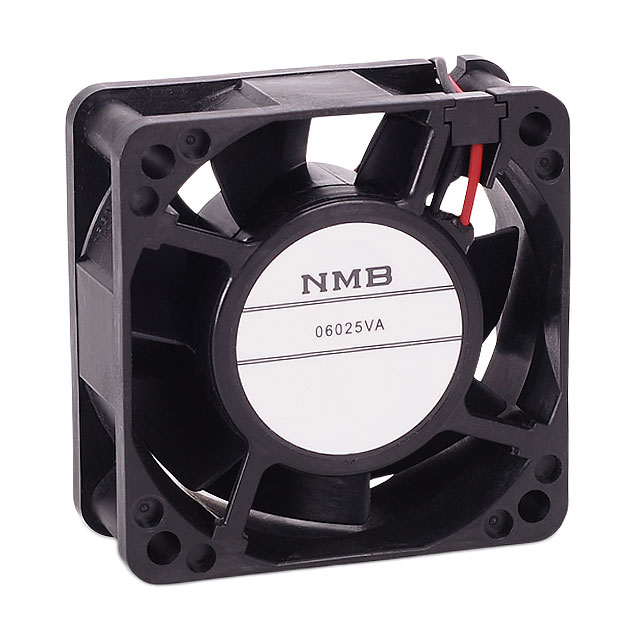

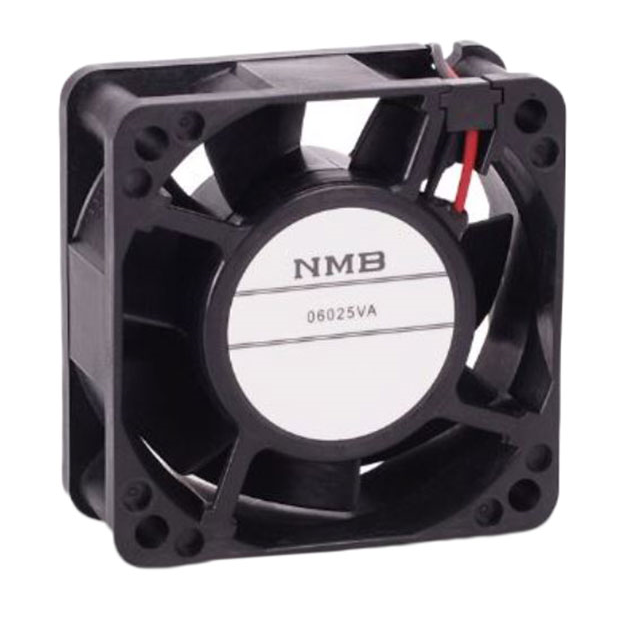

DC AXIAL FAN, 12 V, SQUARE, 60 MM, 25 MM, BALL BEARING, 39.2 CFM
| Part | Voltage Range [Min] | Voltage Range [Max] | Material - Blade | Current Rating (Amps) | Lifetime @ Temp. | Material - Frame | Bearing Type | Termination | Fan Type | Voltage - Rated | Static Pressure | Static Pressure | Features | Approval Agency | Width [y] | Air Flow | Air Flow | RPM | Noise | Power (Watts) | Size / Dimension [z] | Size / Dimension [x] | Operating Temperature [Max] | Operating Temperature [Min] | Weight | Weight | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | 7 V | 13.2 VDC | Plastic | 0.5 A | 40000 Hrs | Plastic | Ball | 4 Wire Leads | Tubeaxial | 12 VDC | 244 Pa | 0.98 in H2O | Auto Restart PWM Control Speed Sensor (Tach) | cULus VDE | 25 mm | 39.2 CFM | 1.1 m³/min | 9200 RPM | 54 dB | 6 W | 60 mm | 60 mm | 70 °C | -10 °C | |||
 NMB TECHNOLOGIES | 10 VDC | 27.6 VDC | Plastic | 270 mA | Plastic | Ball | 2 Wire Leads | Tubeaxial | 24 VDC | 244 Pa | 0.98 in H2O | 25 mm | 39.2 CFM | 1.1 m³/min | 9200 RPM | 54 dB | 6.5 W | 60 mm | 60 mm | 70 °C | -10 °C | 0.198 lb | 89.81 g | IP69K - Dust Tight High Temp Water Jets Waterproof |
