1609 Series

Catalog

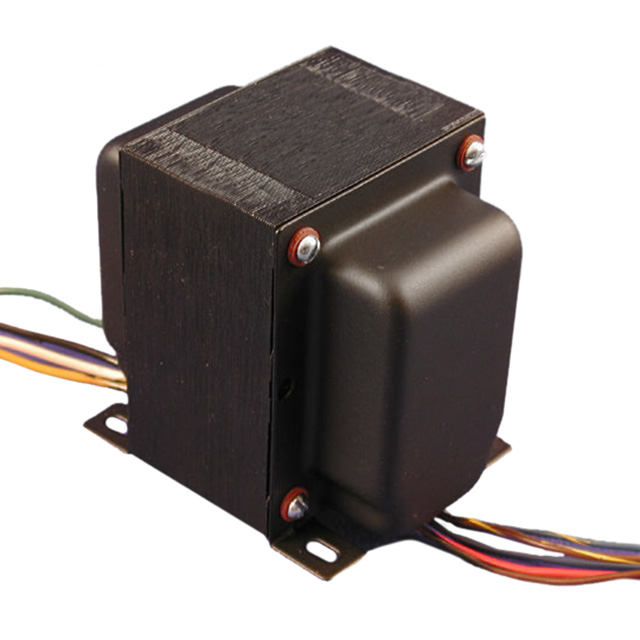

XFMR 10KCT / 4, 8, 16 CHAS MNT

Part	Weight [custom]	Weight [custom]	Mounting Type	Frequency Response	Impedance - Secondary (Ohms)	Power Level	DC Resistance (DCR) - Primary	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	Impedance - Primary (Ohms)	Frequency Range [Min]	Frequency Range [Max]	Termination Style	DC Resistance (DCR) - Secondary	Voltage - Isolation	Transformer Type
Hammond Manufacturing 1609A	2.5 lbs	1.1 kg	Chassis Mount	1 dB	4 Ohms 8 Ohms 16 Ohms	10 W	102.2 Ohm 114.3 Ohm	63.5 mm	69.85 mm	2.5 "	2.75 in	3.06 in	77.72 mm	10kCT	30 Hz	30 kHz	Wire Leads	321 mOhm 365 mOhm 476 mOhm	2000 V	Push-Pull Audiophile Ultra-Linear - Tube Output
