CDCE949-Q1 Series

AEC-Q100 programmable 4-PLL VCXO clock synthesizer with 2.5-V or 3.3-V LVCMOS outputs

Catalog

AEC-Q100 programmable 4-PLL VCXO clock synthesizer with 2.5-V or 3.3-V LVCMOS outputs

Part	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Circuits	Input	Qualification	PLL	Frequency - Max [Max]	Package / Case	Package / Case	Type	Divider/Multiplier	Output	Mounting Type	Grade	Ratio - Input:Output	Utilized IC / Part	Supplied Contents	Function
Texas Instruments CDCE949QPWRQ1	24-TSSOP	125 °C	-40 °C	1.9 V	1.7 V	1	Crystal LVCMOS	AEC-Q100	Yes with Bypass	230 MHz	24-TSSOP	0.173 in 4.4 mm	Spread Spectrum Clock Driver	Yes/No	LVCMOS	Surface Mount	Automotive	1:9
Texas Instruments CDCE949PW	24-TSSOP	85 °C	-40 °C	1.9 V	1.7 V	1	Crystal LVCMOS		Yes with Bypass	230 MHz	24-TSSOP	0.173 in 4.4 mm	PLL Clock Generator	Yes/No	LVCMOS	Surface Mount		1:9

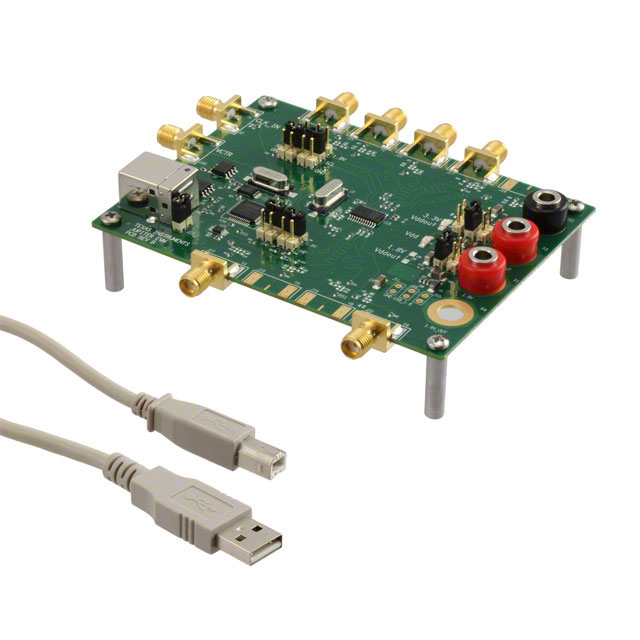

Texas Instruments CDCE949PERF-EVM													Timing						CDCE949PERF	Board(s)	Clock Generator

Catalog

AEC-Q100 programmable 4-PLL VCXO clock synthesizer with 2.5-V or 3.3-V LVCMOS outputs

Key Features

• Qualified for Automotive ApplicationsMember of Programmable Clock Generator FamilyCDCE913/CDCEL913: 1 PLLs, 3 OutputsCDCE925/CDCEL925: 2 PLLs, 5 OutputsCDCE937/CDCEL937: 3 PLLs, 7 OutputsCDCE949: 4 PLLs, 9 OutputsIn-System Programmability and EEPROMSerial Programmable Volatile RegisterNon-Volatile EEPROM to Store Customer SettingsHighly Flexible Clock DriverThree User-Definable Control Inputs [S0/S1/S2]; e.g,. SSC-Selection, Frequency Switching, Output Enable or Power DownGenerates Highly-Accurate Clocks for Video, Audio, USB, IEEE1394, RFID, Generates Common Clock Frequencies Used with TI DaVinci™, OMAP™, DSPsBlueTooth™, WLAN, Ethernet and GPSProgrammable SSC ModulationEnables 0-PPM Clock GenerationSelectable Output Frequency up to 230 MHzFlexible Input Clocking ConceptExternal Crystal: 8 to 32 MHzOn-Chip VCXO: Pull-Range ±150 ppmSingle-Ended LVCMOS up to 160 MHzLow-Noise PLL CoreIntegrated PLL Loop Filter ComponentsVery Low Period Jitter (typ 60 ps)Separate Output Supply Pins3.3 V and 2.5 V1.8 V Device Power SupplyLatch-Up Performace Meets 100 mAPer JESD 78, Class IWide Temperature Range –40°C to 125°CPackaged in TSSOPDevelopment and Programming Kit for Ease PLL Design and Programming(TI-Pro Clock)APPLICATIONSD-TV, HD-TV, STB, IP-STB, DVD-Player, DVD-Recorder, PrinterGeneral Purpose Frequency SynthesizingQualified for Automotive ApplicationsMember of Programmable Clock Generator FamilyCDCE913/CDCEL913: 1 PLLs, 3 OutputsCDCE925/CDCEL925: 2 PLLs, 5 OutputsCDCE937/CDCEL937: 3 PLLs, 7 OutputsCDCE949: 4 PLLs, 9 OutputsIn-System Programmability and EEPROMSerial Programmable Volatile RegisterNon-Volatile EEPROM to Store Customer SettingsHighly Flexible Clock DriverThree User-Definable Control Inputs [S0/S1/S2]; e.g,. SSC-Selection, Frequency Switching, Output Enable or Power DownGenerates Highly-Accurate Clocks for Video, Audio, USB, IEEE1394, RFID, Generates Common Clock Frequencies Used with TI DaVinci™, OMAP™, DSPsBlueTooth™, WLAN, Ethernet and GPSProgrammable SSC ModulationEnables 0-PPM Clock GenerationSelectable Output Frequency up to 230 MHzFlexible Input Clocking ConceptExternal Crystal: 8 to 32 MHzOn-Chip VCXO: Pull-Range ±150 ppmSingle-Ended LVCMOS up to 160 MHzLow-Noise PLL CoreIntegrated PLL Loop Filter ComponentsVery Low Period Jitter (typ 60 ps)Separate Output Supply Pins3.3 V and 2.5 V1.8 V Device Power SupplyLatch-Up Performace Meets 100 mAPer JESD 78, Class IWide Temperature Range –40°C to 125°CPackaged in TSSOPDevelopment and Programming Kit for Ease PLL Design and Programming(TI-Pro Clock)APPLICATIONSD-TV, HD-TV, STB, IP-STB, DVD-Player, DVD-Recorder, PrinterGeneral Purpose Frequency Synthesizing

Description
