DF11E Series

Catalog

CONN HEADER VERT 14POS 2MM

Part	Mated Stacking Heights	Voltage Rating	Overall Contact Length	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Contact Material	Insulation Color	Termination	Number of Positions Loaded	Mounting Type	Pitch - Mating	Pitch - Mating	Connector Type	Style	Shrouding	Insulation Material	Fastening Type	Contact Shape	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height [custom]	Insulation Height [custom]	Number of Rows [custom]	Number of Positions	Contact Length - Post	Contact Length - Post

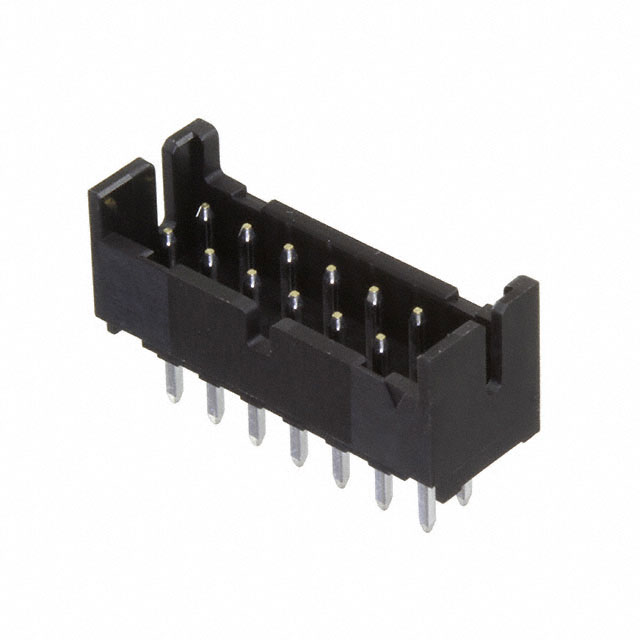

Hirose Electric Co Ltd DF11E-14DP-2DSA	7.55 7.8 mm 8.9 mm	250 V	0.299 in 7.6 mm	2 mm	0.079 in	Male Pin	Brass	Black	Solder	All	Through Hole	0.079 "	2 mm	Header	Board to Board Cable	Shrouded - 4 Wall	Nylon Polyamide (PA)	Detent Lock	Square	3 mm	0.118 in	2 A	UL94 V-0	85 °C	-30 ░C	6.6 mm	0.26 in	2	14	0.118 in	3 mm
Hirose Electric Co Ltd DF11E-26DP-2DSA	7.55 7.8 mm 8.9 mm	250 V	0.299 in 7.6 mm	2 mm	0.079 in	Male Pin	Brass	Black	Solder	All	Through Hole	0.079 "	2 mm	Header	Board to Board Cable	Shrouded - 4 Wall	Nylon Polyamide (PA)	Detent Lock	Square	3 mm	0.118 in	2 A	UL94 V-0	85 °C	-30 ░C	6.6 mm	0.26 in	2	26	0.118 in	3 mm

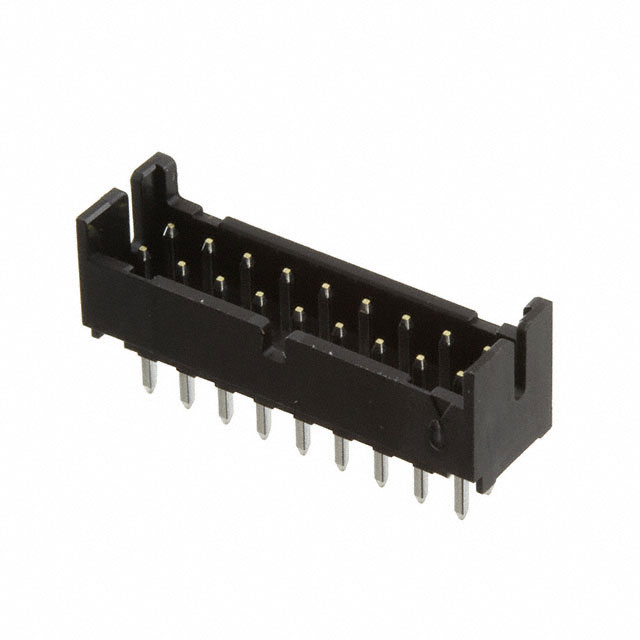

Hirose Electric Co Ltd DF11E-18DP-2DSA	7.55 7.8 mm 8.9 mm	250 V	0.299 in 7.6 mm	2 mm	0.079 in	Male Pin	Brass	Black	Solder	All	Through Hole	0.079 "	2 mm	Header	Board to Board Cable	Shrouded - 4 Wall	Nylon Polyamide (PA)	Detent Lock	Square	3 mm	0.118 in	2 A	UL94 V-0	85 °C	-30 ░C	6.6 mm	0.26 in	2	18	0.118 in	3 mm

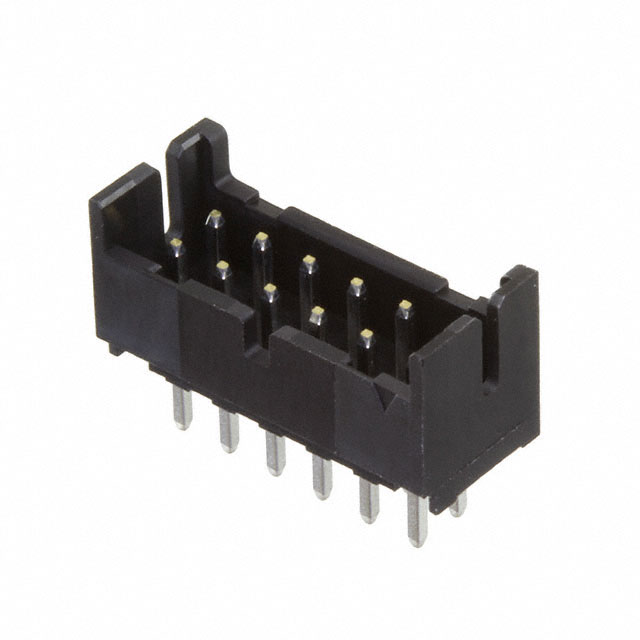

Hirose Electric Co Ltd DF11E-12DP-2DSA	7.55 7.8 mm 8.9 mm	250 V	0.299 in 7.6 mm	2 mm	0.079 in	Male Pin	Brass	Black	Solder	All	Through Hole	0.079 "	2 mm	Header	Board to Board Cable	Shrouded - 4 Wall	Nylon Polyamide (PA)	Detent Lock	Square	3 mm	0.118 in	2 A	UL94 V-0	85 °C	-30 ░C	6.6 mm	0.26 in	2	12	0.118 in	3 mm
Hirose Electric Co Ltd DF11E-20DP-2DSA(10)

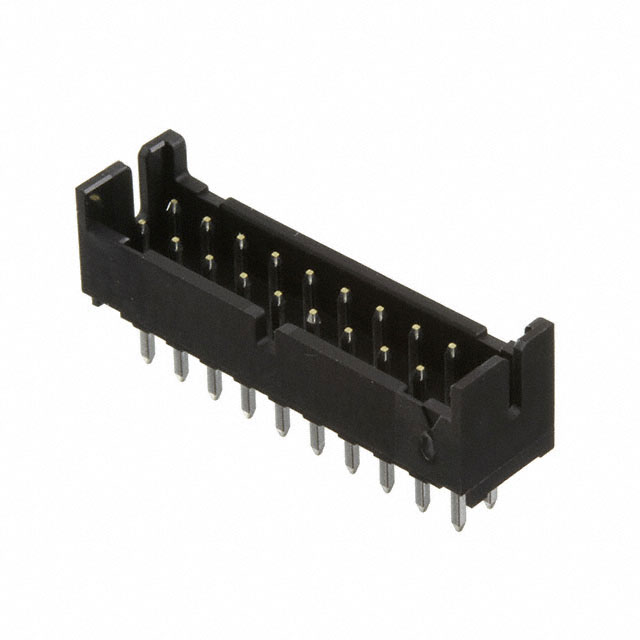

Hirose Electric Co Ltd DF11E-20DP-2DSA	7.55 7.8 mm 8.9 mm	250 V	0.299 in 7.6 mm	2 mm	0.079 in	Male Pin	Brass	Black	Solder	All	Through Hole	0.079 "	2 mm	Header	Board to Board Cable	Shrouded - 4 Wall	Nylon Polyamide (PA)	Detent Lock	Square	3 mm	0.118 in	2 A	UL94 V-0	85 °C	-30 ░C	6.6 mm	0.26 in	2	20	0.118 in	3 mm
