DF60F Series

Catalog

CONN PLUG HSG 3POS 10.16MM

Part	Note	Number of Rows	Connector Type	Features	Contact Termination	Fastening Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Pitch	Pitch	Insulation Material	Color	Contact Type	Shrouding	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Contact Shape	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Post	Current Rating (Amps)	Material Flammability Rating	Insulation Height	Insulation Height	Style	Contact Finish - Mating	Termination	Pitch - Mating	Pitch - Mating	Voltage Rating

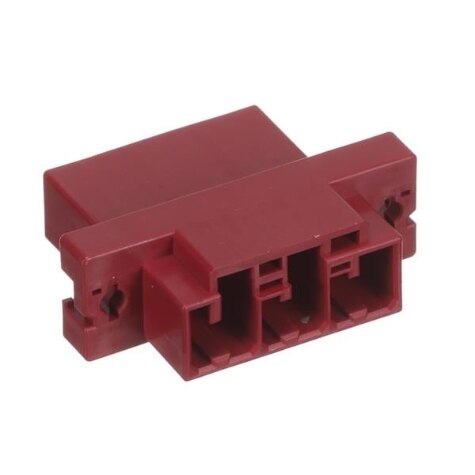

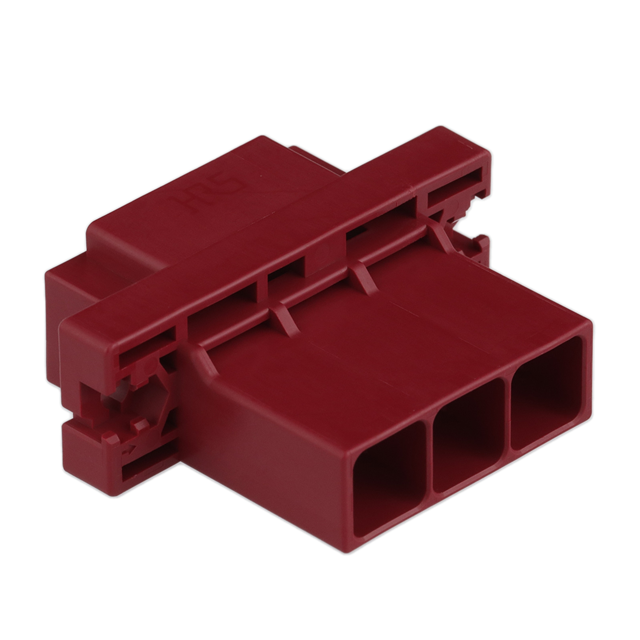

Hirose Electric Co Ltd DF60FR-3EP-10.16C	Contacts Not Included	1	Plug	Mating Flange	Crimp	Latch Holder	Free Hanging (In-Line)	-55 C	105 ░C	10.16 mm	0.4 in	Polybutylene Terephthalate (PBT) Glass Filled	Black	Blade Pin

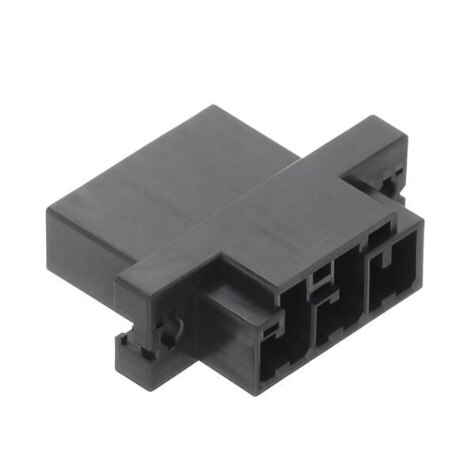

Hirose Electric Co Ltd DF60F-3EP-10.16C	Contacts Not Included	1	Plug	Mating Flange	Crimp	Latch Holder	Free Hanging (In-Line)	-55 C	105 ░C	10.16 mm	0.4 in	Polybutylene Terephthalate (PBT) Glass Filled	Black	Blade Pin

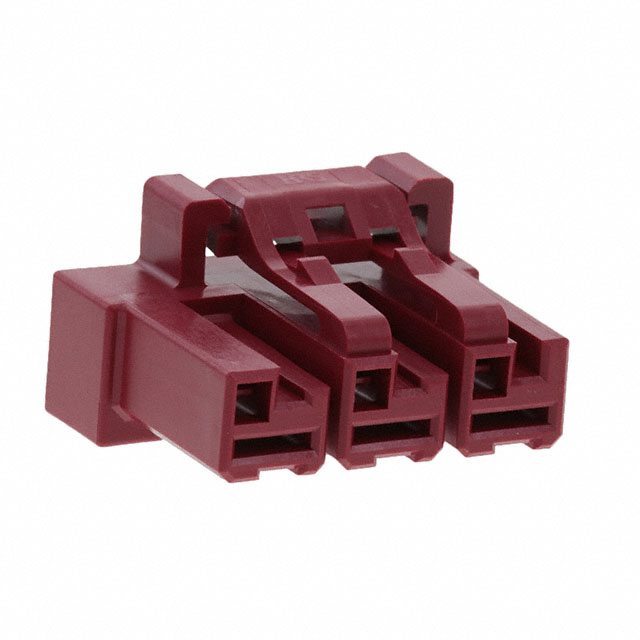

Hirose Electric Co Ltd DF60FR-3S-10.16C	Contacts Not Included	1	Receptacle		Crimp	Latch Lock	Free Hanging (In-Line)	-55 C	105 ░C	10.16 mm	0.4 in	Polybutylene Terephthalate (PBT) Glass Filled	Black	Female Socket

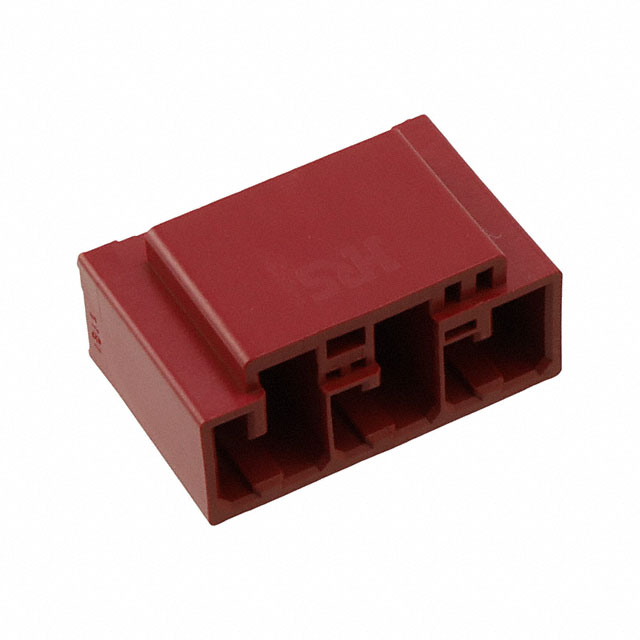

Hirose Electric Co Ltd DF60FR-3P-10.16DSA(50)		1	Header	Board Guide Glow Wire Compliant		Latch Holder	Through Hole	-55 C	105 ░C			Polybutylene Terephthalate (PBT) Glass Filled		Male Blade	Shrouded - 4 Wall	Copper Alloy	8 µin	0.203 µm	Black	Rectangular	All	3.81 mm	0.15 in	Gold	Varies by Wire Gauge	UL94 V-0	0.846 "	21.5 mm	Board to Cable/Wire	Gold	Solder	0.4 in	10.16 mm	1000 VAC
Hirose Electric Co Ltd DF60F-3S-10.16C	Contacts Not Included	1	Receptacle		Crimp	Latch Lock	Free Hanging (In-Line)	-55 C	105 ░C	10.16 mm	0.4 in	Polybutylene Terephthalate (PBT) Glass Filled	Black	Female Socket
Hirose Electric Co Ltd DF60F-3P-10.16DSA(50)		1	Header	Board Guide Glow Wire Compliant		Latch Holder	Through Hole	-55 C	105 ░C			Polybutylene Terephthalate (PBT) Glass Filled		Male Blade	Shrouded - 4 Wall	Copper Alloy	8 µin	0.203 µm	Black	Rectangular	All	3.81 mm	0.15 in	Gold	Varies by Wire Gauge	UL94 V-0	0.846 "	21.5 mm	Board to Cable/Wire	Gold	Solder	0.4 in	10.16 mm	1000 VAC
