C2895 Series
Manufacturer: Prysmian Group
Beta
⌘K

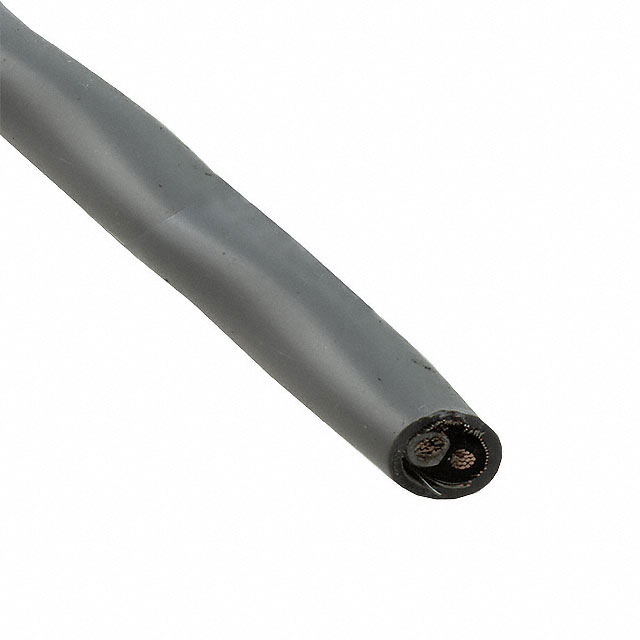

CABLE 2COND 16AWG GRAY SHLD
| Part | Length | Length | Usage | Ratings | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Conductor Material | Jacket Color | Shield Type | Wire Gauge | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [diameter] | Voltage | Conductor Insulation | Shield Coverage | Shield Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | 304.8 m | 1000 ft | Communication Control | ASTM B-33 | 6.73 mm | 0.265 in | 2 | 0.813 mm | 0.032 in | Multi-Conductor | Copper Annealed Tinned | Gray | Spiral | 16 AWG | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | 19 | 0.0117 in | 300 VDC | Poly-Vinyl Chloride (PVC) | ||
Prysmian Group | 304.8 m | 1000 ft | Communication Control | ASTM B-33 | 6.73 mm | 0.265 in | 2 | 0.813 mm | 0.032 in | Multi-Conductor | Copper Annealed Tinned | Gray | Spiral | 16 AWG | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | 19 | 0.0117 in | 300 VDC | Poly-Vinyl Chloride (PVC) | 85 % | Copper Tinned |
