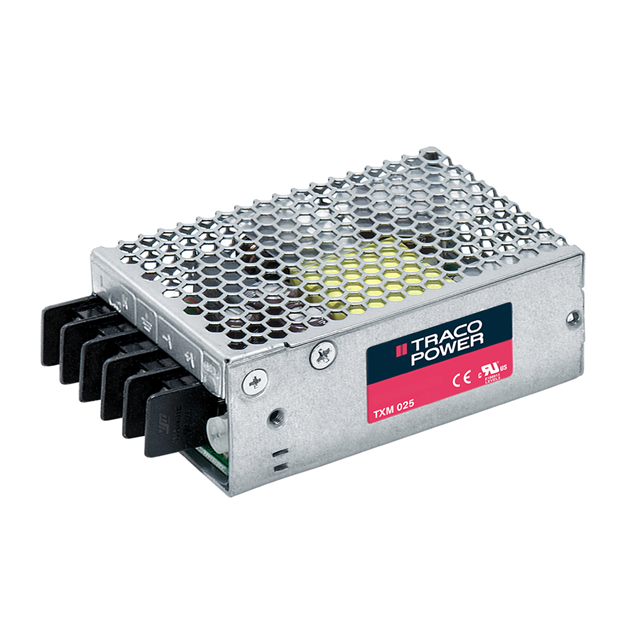

TXM 025 Series
Manufacturer: Traco Power
Beta
⌘K
AC/DC CONVERTER 3.3V 17W
| Part | Minimum Load Required | Voltage - Input [Max] | Voltage - Input [Min] | Applications | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Isolation | Voltage - Output 1 | Mounting Type | Approval Agency | Type | Current - Output 1 | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Features | Efficiency | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | 264 VAC 370 VDC | 90 VAC 127 VDC | ITE (Commercial) | 1.13 " | 28.8 mm | 79 mm | 51 mm | 2.01 " | 3.11 " | 3000 V | 3.3 V | Chassis Mount | CE cURus | Enclosed | 5 A | 1 | 70 °C | -25 °C | Adjustable Output Universal Input | 71 % | 17 W |
