BXEP-27 Series
Manufacturer: BRIDGELUX
Beta
⌘K

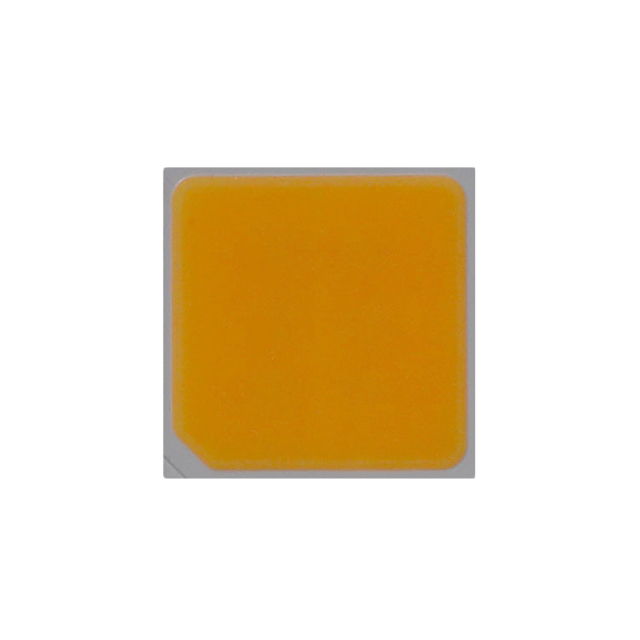

LED 5050 WARM WHT 2700K SMD
| Part | Thermal Resistance of Package | Viewing Angle | Mounting Type | CCT (K) | Current - Max [Max] | Voltage - Forward (Vf) (Typ) | Color | Supplier Device Package | Current - Test | Package / Case | Lumens/Watt @ Current - Test | CRI (Color Rendering Index) | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Flux @ 85°C, Current - Test | Height - Seated (Max) [Max] | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BRIDGELUX | 3.3 °C/W | 116 ° | Surface Mount | 2700 K | 480 mA | 9 V | Warm White | 5050 | 320 mA | 2020 (5050 Metric) | 117 lm/W | 80 | 0.197 in | 0.197 " | 5 mm | 5 mm | 338 lm | 0.031 in | 0.8 mm |
BRIDGELUX | 3.3 °C/W | 116 ° | Surface Mount | 2700 K | 240 mA | 18.1 V | Warm White | 5050 | 2020 (5050 Metric) | 117 lm/W | 80 | 0.197 in | 0.197 " | 5 mm | 5 mm | 338 lm | 0.031 in | 0.8 mm | |
BRIDGELUX | 1.9 °C/W | 116 ° | Surface Mount | 2700 K | 800 mA | 9 V | Warm White | 5050 | 500 mA | 2020 (5050 Metric) | 112 lm/W | 80 | 0.197 in | 0.197 " | 5 mm | 5 mm | 504 lm | 0.031 in | 0.8 mm |
