MCP6546U Series

Open-Drain Output Sub-Microamp Comparators

Catalog

Open-Drain Output Sub-Microamp Comparators

Part	Number of Elements	Supplier Device Package	Propagation Delay (Max) [Max]	Current - Quiescent (Max) [Max]	Mounting Type	Hysteresis	Output Type	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	Current - Input Bias (Max) [Max]	CMRR, PSRR (Typ)	Type	Current - Output (Typ)	Voltage - Input Offset (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case [custom]	Package / Case	Package / Case	Package / Case [y]	Package / Case [x]
Microchip Technology MCP6546T-E/MS	1	8-MSOP	8 µs	1 çA	Surface Mount	6.5 mV	CMOS Open-Drain Rail-to-Rail TTL	1.6 V	5.5 V	1 pA	70 dB 80 dB	General Purpose	30 mA	7 mV	125 °C	-40 °C	8-MSOP 8-TSSOP	0.118 in	3 mm
Microchip Technology MCP6546-I/MS	1	8-MSOP	8 µs	1 çA	Surface Mount	6.5 mV	CMOS Open-Drain Rail-to-Rail TTL	1.6 V	5.5 V	1 pA	70 dB 80 dB	General Purpose	30 mA	7 mV	85 °C	-40 °C	8-MSOP 8-TSSOP	0.118 in	3 mm
Microchip Technology MCP6546UT-I/LT	1	SC-70-5	8 µs	1 çA	Surface Mount	6.5 mV	CMOS Open-Drain Rail-to-Rail TTL	1.6 V	5.5 V	1 pA	70 dB 80 dB	General Purpose	30 mA	7 mV	85 °C	-40 °C	5-TSSOP SC-70-5 SOT-353
Microchip Technology MCP6546-E/P	1	8-PDIP	8 µs	1 çA	Through Hole	6.5 mV	CMOS Open-Drain Rail-to-Rail TTL	1.6 V	5.5 V	1 pA	70 dB 80 dB	General Purpose	30 mA	7 mV	125 °C	-40 °C	8-DIP		0.3 in	7.62 mm
Microchip Technology MCP6546-I/SN	1	8-SOIC	8 µs	1 çA	Surface Mount	6.5 mV	CMOS Open-Drain Rail-to-Rail TTL	1.6 V	5.5 V	1 pA	70 dB 80 dB	General Purpose	30 mA	7 mV	85 °C	-40 °C	8-SOIC				3.9 mm	0.154 in
Microchip Technology MCP6546T-E/OT	1	SOT-23-5	8 µs	1 çA	Surface Mount	6.5 mV	CMOS Open-Drain Rail-to-Rail TTL	1.6 V	5.5 V	1 pA	70 dB 80 dB	General Purpose	30 mA	7 mV	125 °C	-40 °C	SC-74A SOT-753
Microchip Technology MCP6546T-I/OT	1	SOT-23-5	8 µs	1 çA	Surface Mount	6.5 mV	CMOS Open-Drain Rail-to-Rail TTL	1.6 V	5.5 V	1 pA	70 dB 80 dB	General Purpose	30 mA	7 mV	85 °C	-40 °C	SC-74A SOT-753

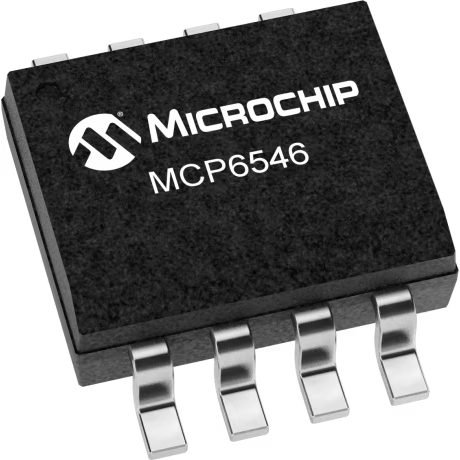

Microchip Technology MCP6546-E/SN	1	8-SOIC	8 µs	1 çA	Surface Mount	6.5 mV	CMOS Open-Drain Rail-to-Rail TTL	1.6 V	5.5 V	1 pA	70 dB 80 dB	General Purpose	30 mA	7 mV	125 °C	-40 °C	8-SOIC				3.9 mm	0.154 in
Microchip Technology MCP6546T-I/LT	1	SC-70-5	8 µs	1 çA	Surface Mount	6.5 mV	CMOS Open-Drain Rail-to-Rail TTL	1.6 V	5.5 V	1 pA	70 dB 80 dB	General Purpose	30 mA	7 mV	85 °C	-40 °C	5-TSSOP SC-70-5 SOT-353
Microchip Technology MCP6546T-E/SN	1	8-SOIC	8 µs	1 çA	Surface Mount	6.5 mV	CMOS Open-Drain Rail-to-Rail TTL	1.6 V	5.5 V	1 pA	70 dB 80 dB	General Purpose	30 mA	7 mV	125 °C	-40 °C	8-SOIC				3.9 mm	0.154 in

Catalog

Open-Drain Output Sub-Microamp Comparators

Key Features

- Open Drain Output

- Output can be level shifted up to 9V via external pull-up resistor

- 4us Propagation Delay

- Low Operating Voltage, 1.6V to 5.5V

- Low Operating Current, 600nA (typical)

- Small 5-pin SOT-23 Package

- AEC-Q100 Grade 1

Description

The MCP6546 is an Open-Drain, single comparator. This single-ended device operates from 1.6V to 5.5V, with typical quiescent current of 600 nA and a maximum of 1 microamp and is 10V output capable. This device is offered in the eight lead PDIP, SOIC, MSOP and five lead SOT-23 package. AEC-Q100 Grade 1 qualification is available for this device
