AD9250 Series
Manufacturer: Analog Devices
Beta
⌘K
2-CHANNEL DUAL ADC PIPELINED 170MSPS 14-BIT JESD204B 48-PIN LFCSP EP TRAY
| Part | Configuration | Sampling Rate (Per Second) | Input Type | Mounting Type | Supplier Device Package | Voltage - Supply, Analog [Max] | Voltage - Supply, Analog [Min] | Number of A/D Converters | Architecture | Operating Temperature [Max] | Operating Temperature [Min] | Features | Ratio - S/H:ADC | Voltage - Supply, Digital [Min] | Voltage - Supply, Digital [Max] | Data Interface | Number of Bits | Package / Case | Reference Type | Number of Inputs | Supplied Contents | Utilized IC / Part | Power (Typ) @ Conditions | Input Range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices | S/H-ADC | 170 M | Differential | Surface Mount | 48-LFCSP 7x7 | 1.9 V | 1.7 V | 2 | Pipelined | 85 °C | -40 °C | Simultaneous Sampling | 1:1 | 1.7 V | 1.9 V | JESD204B | 14 | 48-WFQFN Exposed Pad CSP | Internal | 2 | ||||

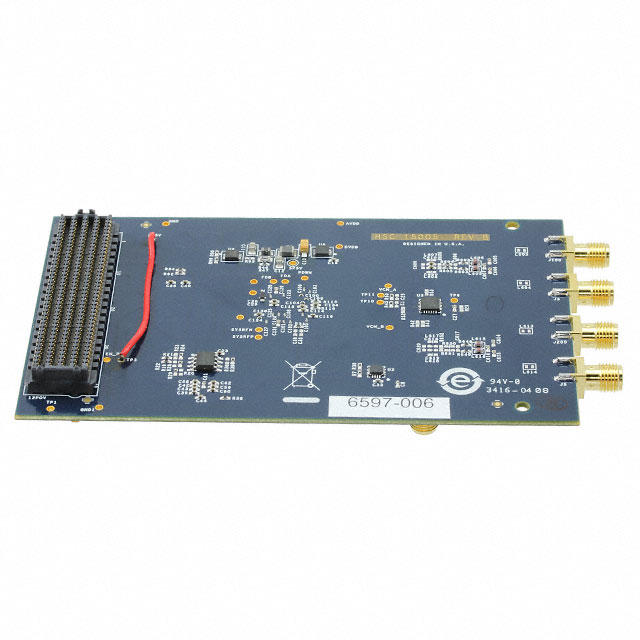

 Analog Devices | 250 M | 2 | Serial JESD204B SPI™ | 14 | Board(s) | AD9250 | 711 mW | 1.75 Vpp | ||||||||||||||||
 Analog Devices | 250 M | 2 | Serial JESD204B SPI™ | 14 | Board(s) | AD9250 | 711 mW | 1.75 Vpp |
