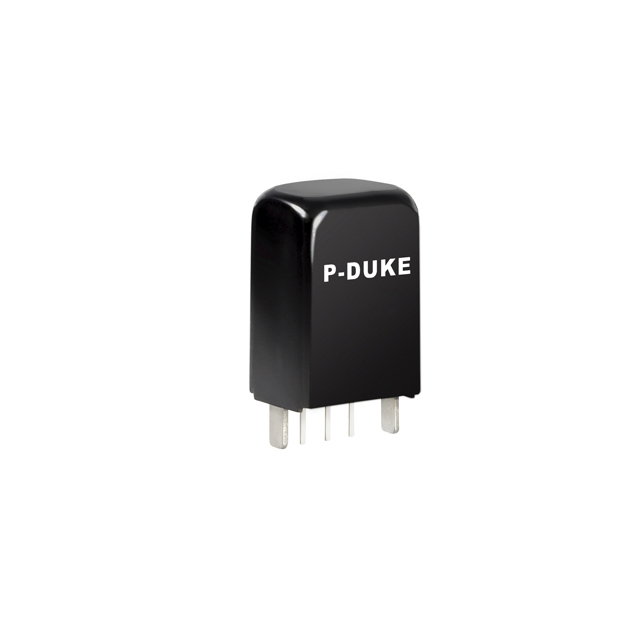

HSR01 Series
Manufacturer: P-DUKE Technology
Beta
⌘K
DC DC CONVERTER 5V 5W
| Part | Voltage - Input (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs | Package / Case | Current - Output (Max) [Max] | Applications | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Voltage - Output 1 | Voltage - Input (Min) [Min] | Type | Power (Watts) | Mounting Type | Approval Agency | Efficiency | Features | Voltage - Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 P-DUKE Technology | 72 V | 105 C | -40 °C | 1 | 3-SIP Module | 1 A | ITE (Commercial) | 0.48 in | 8.6 mm | 0.34 in | 12.1 mm | 0.69 in | 17.5 mm | 5 V | 9 V | Non-Isolated PoL Module | 5 W | Through Hole | CE | 86.5 % | ||
P-DUKE Technology | 72 V | 105 C | -40 °C | 1 | 3-SIP Module | 1 A | ITE (Commercial) | 0.48 in | 8.6 mm | 0.34 in | 12.1 mm | 0.69 in | 17.5 mm | 9 V | 14 V | 9 W | Through Hole | CE | 90 % | Remote On/Off | 500 V |
