VN450 Series

Catalog

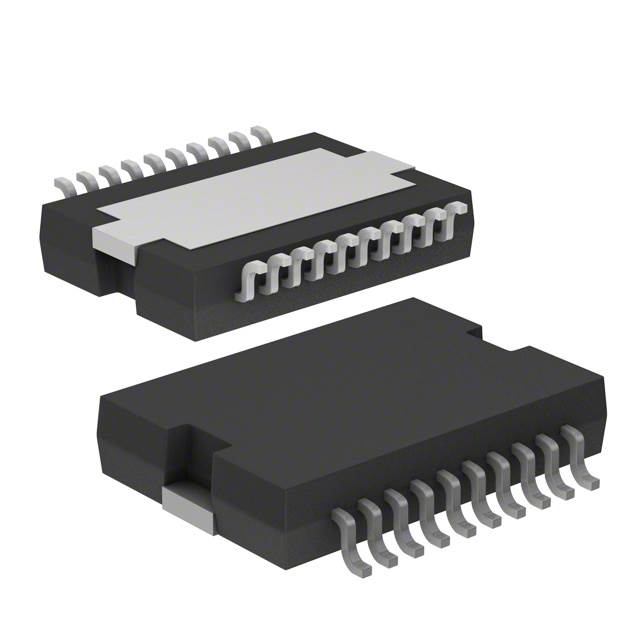

IC PWR DRIVER 1:1 PWRSO20

Part	Operating Temperature [Min]	Operating Temperature [Max]	Rds On (Typ) [Max]	Rds On (Typ)	Switch Type	Output Configuration	Current - Output (Max)	Package / Case	Number of Outputs	Fault Protection	Voltage - Supply (Vcc/Vdd)	Input Type	Ratio - Input:Output	Supplier Device Package	Mounting Type	Features	Interface	Voltage - Load [Max]	Voltage - Load [Min]
STMicroelectronics VN450P-E	-40 °C	150 °C	300 mOhm	40 mOhm	Relay Solenoid Driver	High Side	2 A 10 A	20-SOIC (0.433" 11.00mm Width) Exposed Pad	3	Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage	Not Required	Non-Inverting	1:1	PowerSO-20	Surface Mount	Status Flag	On/Off	36 V	5.5 V
STMicroelectronics VN450P13TR	-40 °C	150 °C	300 mOhm	40 mOhm	Relay Solenoid Driver	High Side	2 A 10 A	20-SOIC (0.433" 11.00mm Width) Exposed Pad	3	Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage	Not Required	Non-Inverting	1:1	PowerSO-20	Surface Mount	Status Flag	On/Off	36 V	5.5 V
