TDL 3 Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 4.5-10VIN 5V/300MA -5V/300MA 3W ISO DIP

Part	Applications	Current - Output (Max) [Max]	Features	Mounting Type	Power (Watts)	Voltage - Input (Max) [Max]	Number of Outputs	Voltage - Isolation	Voltage - Input (Min) [Min]	Voltage - Output 2	Package / Case	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Output 1	Type	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)
Traco Power TDL 3-0521	ITE (Commercial)	0.3 A	OCP SCP	Through Hole	3 W	10 V	2	1.5 kV	4.5 V	-5 V	7-DIP Module 5 Leads	0.31 "	14 mm	14 mm	0.55 "	0.55 in	8 mm	5 V	Isolated Module	70 °C	-40 C
Traco Power TDL 3-0523	ITE (Commercial)		OCP SCP	Through Hole	3 W	10 V	2	1.5 kV	4.5 V	-15 V	7-DIP Module 5 Leads	0.31 "	14 mm	14 mm	0.55 "	0.55 in	8 mm	15 V	Isolated Module	70 °C	-40 C	85 %	100 mA	100 mA
Traco Power TDL 3-2422	ITE (Commercial)		OCP SCP	Through Hole	3 W	36 V	2	1.5 kV	18 V	-12 V	7-DIP Module 5 Leads	0.31 "	14 mm	14 mm	0.55 "	0.55 in	8 mm	12 V	Isolated Module	70 °C	-40 C	86 %			125 mA
Traco Power TDL 3-1210	ITE (Commercial)	600 mA	OCP SCP	Through Hole	2 W	18 V	1	1.5 kV	9 V		7-DIP Module 4 Leads	0.31 "	14 mm	14 mm	0.55 "	0.55 in	8 mm	3.3 V	Isolated Module	70 °C	-40 C	80 %
Traco Power TDL 3-4823	ITE (Commercial)		OCP SCP	Through Hole	3 W	75 V	2	1.5 kV	36 V	-15 V	7-DIP Module 5 Leads	0.31 "	14 mm	14 mm	0.55 "	0.55 in	8 mm	15 V	Isolated Module	70 °C	-40 C	85 %	100 mA	100 mA
Traco Power TDL 3-4821	ITE (Commercial)	0.3 A	OCP SCP	Through Hole	3 W	75 V	2	1.5 kV	36 V	-5 V	7-DIP Module 5 Leads	0.31 "	14 mm	14 mm	0.55 "	0.55 in	8 mm	5 V	Isolated Module	70 °C	-40 C
Traco Power TDL 3-2412	ITE (Commercial)	250 mA	OCP SCP	Through Hole	3 W	36 V	1	1.5 kV	18 V		7-DIP Module 4 Leads	0.31 "	14 mm	14 mm	0.55 "	0.55 in	8 mm	12 V	Isolated Module	70 °C	-40 C	87 %
Traco Power TDL 3-1212	ITE (Commercial)	250 mA	OCP SCP	Through Hole	3 W	18 V	1	1.5 kV	9 V		7-DIP Module 4 Leads	0.31 "	14 mm	14 mm	0.55 "	0.55 in	8 mm	12 V	Isolated Module	70 °C	-40 C	87 %
Traco Power TDL 3-1222	ITE (Commercial)		OCP SCP	Through Hole	3 W	18 V	2	1.5 kV	9 V	-12 V	7-DIP Module 5 Leads	0.31 "	14 mm	14 mm	0.55 "	0.55 in	8 mm	12 V	Isolated Module	70 °C	-40 C	86 %			125 mA

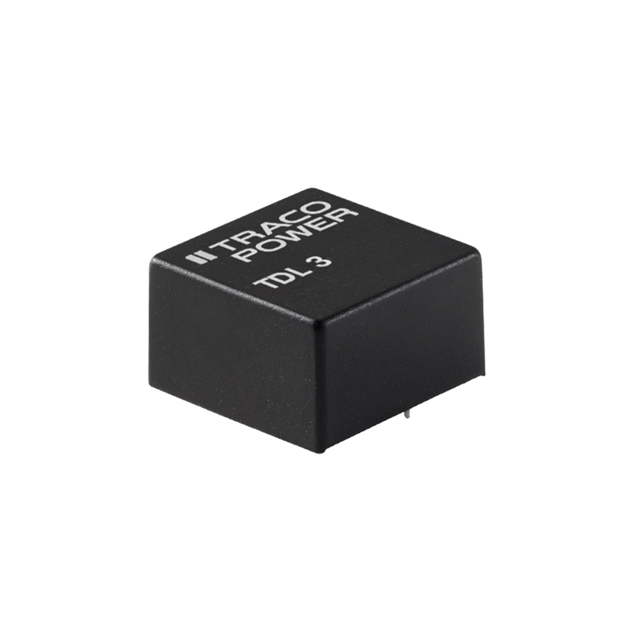

Traco Power TDL 3-0510	ITE (Commercial)	600 mA	OCP SCP	Through Hole	2 W	10 V	1	1.5 kV	4.5 V		7-DIP Module 4 Leads	0.31 "	14 mm	14 mm	0.55 "	0.55 in	8 mm	3.3 V	Isolated Module	70 °C	-40 C	79 %
