GBI25 Series

Catalog

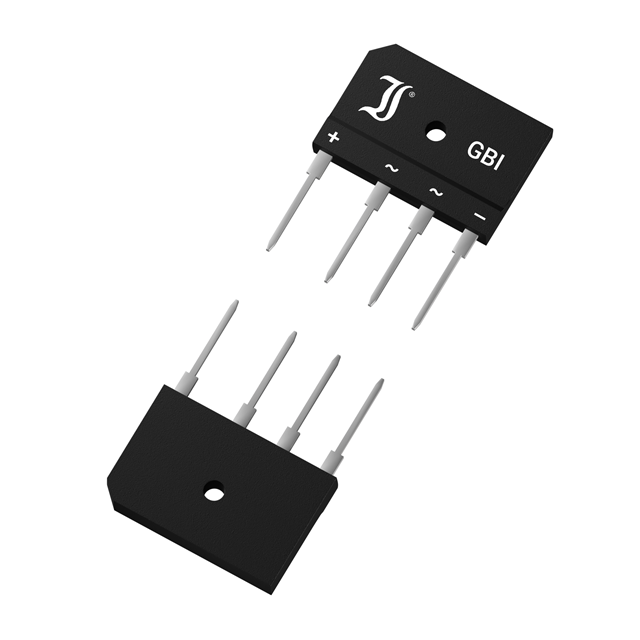

BRIDGE RECT 1PHASE 1KV 4.2A GBI

Part	Package / Case	Mounting Type	Supplier Device Package	Technology	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Forward (Vf) (Max) @ If [Max]	Current - Reverse Leakage @ Vr	Diode Type	Current - Average Rectified (Io)	Voltage - Peak Reverse (Max) [Max]	Voltage - Peak Reverse (Max)	Voltage - Forward (Vf) (Max) @ If
Diotec Semiconductor GBI25M	4-SIP GBI	Through Hole	GBI	Standard	-50 °C	150 °C	1.1 V	5 µA	Single Phase	4.2 A	1 kV
Diotec Semiconductor GBI25W	4-SIP GBI	Through Hole	GBI	Standard	-50 °C	150 °C	1.1 V	5 µA	Single Phase	5 A		1.6 kV
Diotec Semiconductor GBI25K	4-SIP GBI	Through Hole	GBI	Standard	-50 °C	150 °C	1.1 V	5 µA	Single Phase	4.2 A		800 V
Diotec Semiconductor GBI25D	4-SIP GBI	Through Hole	GBI	Standard	-50 °C	150 °C	1.1 V	5 ÁA	Single Phase	4.2 A		200 V
Diotec Semiconductor GBI25J-T	4-SIP GBI	Through Hole	GBI	Standard	-50 °C	150 °C	1.1 V	5 µA	Single Phase	4.2 A	600 V
Diotec Semiconductor GBI25A	4-SIP GBI	Through Hole	GBI	Standard	-50 °C	150 °C	1.1 V	5 µA	Single Phase	4.2 A	50 V
Diotec Semiconductor GBI25B	4-SIP GBI	Through Hole	GBI	Standard	-50 °C	150 °C	1.1 V	5 µA	Single Phase	4.2 A	100 V
Diotec Semiconductor GBI25J-LV	4-SIP GBI	Through Hole	GBI	Standard	-50 °C	150 °C		5 µA	Single Phase	4.2 A	600 V		0.92 V
