HR10A Series

Catalog

CONN RCPT FMALE 6P SOLDER CUP

...

Part	Connector Type	Current Rating (Amps)	Contact Material	Mounting Type	Shielding	Material Flammability Rating	Shell Finish	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insert Material [custom]	Insert Material [custom]	Shell Material	Number of Positions	Voltage Rating	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Feature	Color	Primary Material	Fastening Type	Shell Size - Insert	Orientation	Insert Material	Termination	Shell Size - Insert [custom]	Contact Type	Contact Shape	Contact Size	Housing Color	Features	Note	Type	Backshell Material, Plating	Shell Size - Insert [custom]

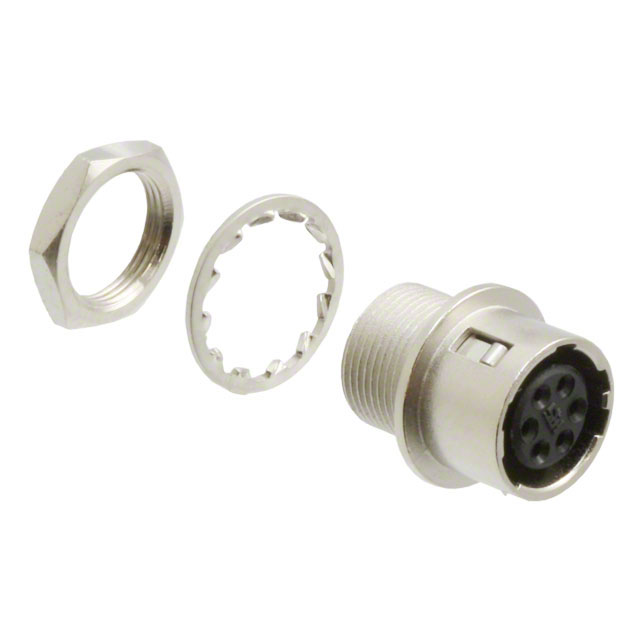

Hirose Electric Co Ltd HR10A-7R-6S(73)	Receptacle Female Sockets	2 A	Phosphor Bronze	Panel Mount	Unshielded	UL94 V-0	Nickel	78.7 µin	2 µm	Nylon	Polyamide (PA)	Zinc Alloy	6	100 VAC 140 VDC	Silver	85 °C	-25 °C	Bulkhead - Rear Side Nut	Silver	Metal	Push-Pull	7	Keyed

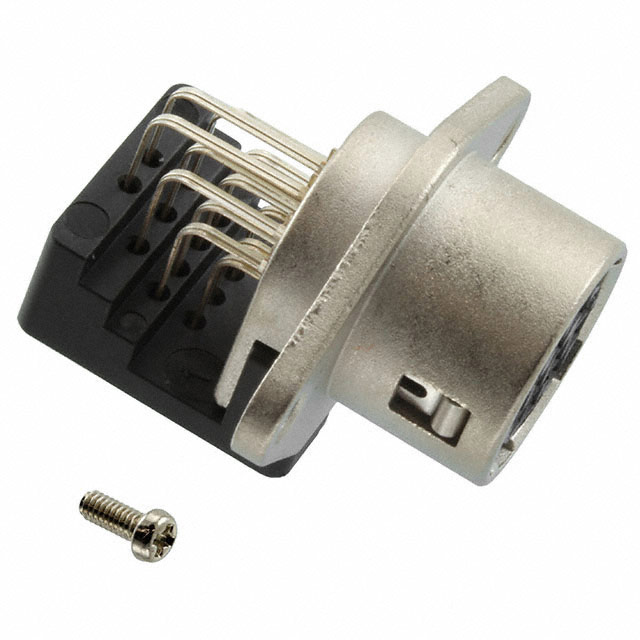

Hirose Electric Co Ltd HR10A-10R-12SADL	Receptacle Female Sockets	2 A	Phosphor Bronze	Right Angle Through Hole	Unshielded	UL94 V-0	Nickel	31.5 µin	0.8 µm			Zinc Alloy	12	100 VAC 140 VDC	Silver	85 °C	-25 °C	Flange	Silver	Metal	Push-Pull		Keyed	Polybutylene Terephthalate (PBT)	Solder	10
Hirose Electric Co Ltd HR10A-10WTR-12S(74)

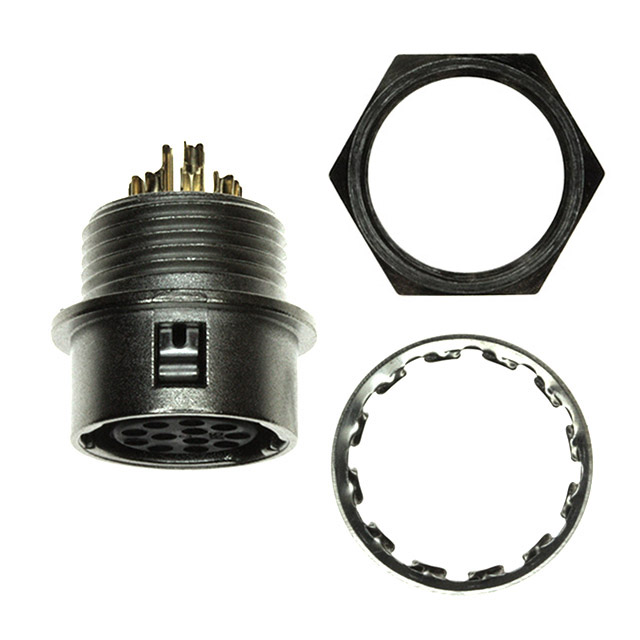

Hirose Electric Co Ltd HR10A-10R-12S(72)	Receptacle Female Sockets	2 A	Phosphor Bronze	Panel Mount	Unshielded	UL94 V-0	Nickel	8 µin	0.203 µm	Nylon	Polyamide (PA)	Zinc Alloy	12	100 VAC 140 VDC	Gold	85 °C	-25 °C	Bulkhead - Rear Side Nut	Silver	Metal	Push-Pull		Keyed			10
Hirose Electric Co Ltd HR10A-7P-6SC	Plug Housing			Free Hanging (In-Line)	Unshielded	UL94 V-0	Nickel					Zinc Alloy	6			85 °C	-20 ░C				Push-Pull	7	Keyed	Polybutylene Terephthalate (PBT)			Crimp	Circular	1 mm	Silver	Backshell Cable Clamp Strain Relief	Contacts Not Included	For Female Sockets

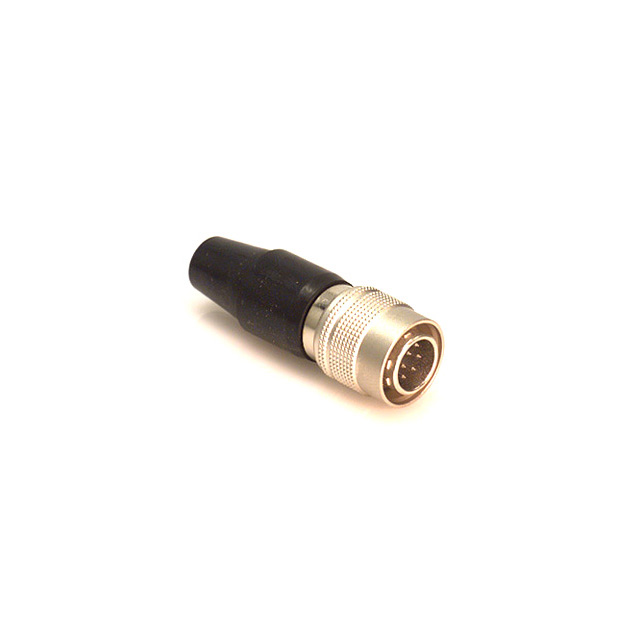

Hirose Electric Co Ltd HR10A-10P-10P(73)	Plug Male Pins	2 A	Brass	Free Hanging (In-Line)	Unshielded	UL94 V-0	Nickel	78.7 µin	2 µm	Nylon	Polyamide (PA)	Zinc Alloy	10	100 VAC 140 VDC	Silver	85 °C	-25 °C		Silver	Metal	Push-Pull		Keyed			10					Backshell Clamp Strain Relief			Brass Nickel

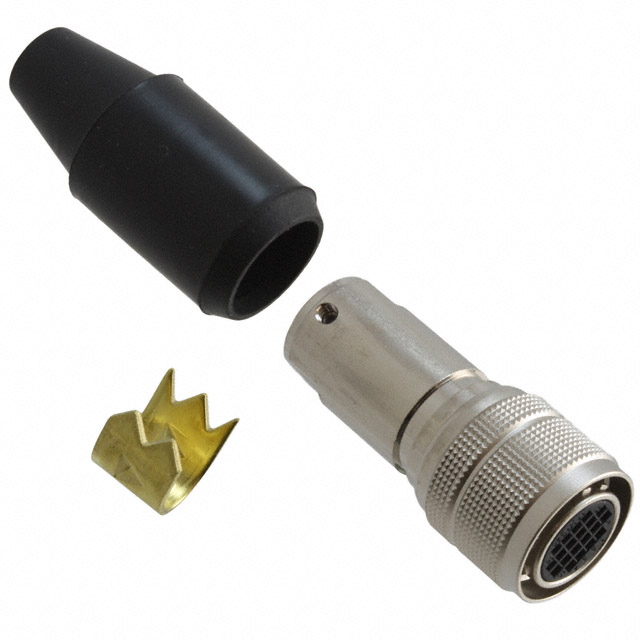

Hirose Electric Co Ltd HR10A-13P-20SC(73)	Plug Housing			Free Hanging (In-Line)	Unshielded	UL94 V-0	Nickel					Zinc Alloy	20			85 °C	-20 ░C				Push-Pull		Keyed	Polybutylene Terephthalate (PBT)			Crimp	Circular	1 mm	Silver	Backshell Cable Clamp Strain Relief	Contacts Not Included	For Female Sockets		13

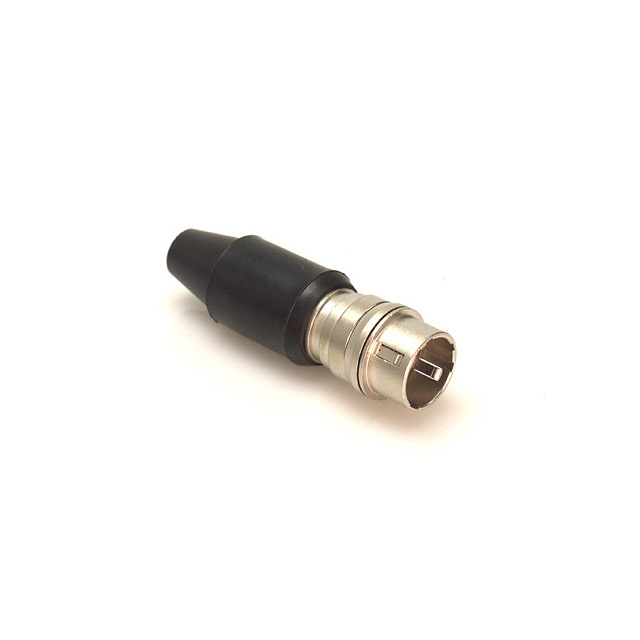

Hirose Electric Co Ltd HR10A-13J-20PC	Jack Housing			Free Hanging (In-Line)	Unshielded	UL94 V-0	Nickel					Zinc Alloy	20			85 °C	-20 ░C				Push-Pull		Keyed	Polybutylene Terephthalate (PBT)			Crimp	Circular	1 mm	Silver	Backshell Cable Clamp Strain Relief	Contacts Not Included	For Male Pins		13

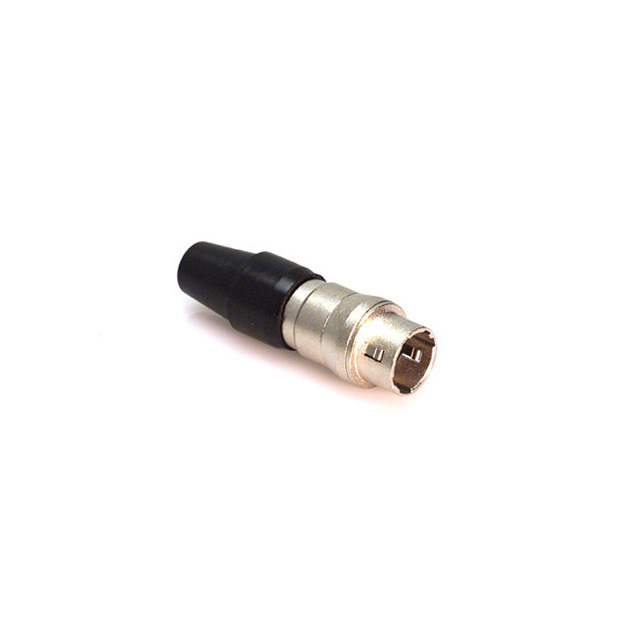

Hirose Electric Co Ltd HR10A-7J-6PC	Jack Housing			Free Hanging (In-Line)	Unshielded	UL94 V-0	Nickel					Zinc Alloy	6			85 °C	-20 ░C				Push-Pull	7	Keyed	Polybutylene Terephthalate (PBT)			Crimp	Circular	1 mm	Silver	Backshell Cable Clamp Strain Relief	Contacts Not Included	For Male Pins
Hirose Electric Co Ltd HR10A-13TR-20SB(74)	Receptacle Female Sockets	2 A		Panel Mount Through Hole	Unshielded								20	100 VAC 140 VDC		85 °C	-25 °C	Bulkhead - Rear Side Nut			Threaded		Keyed		Solder										13
