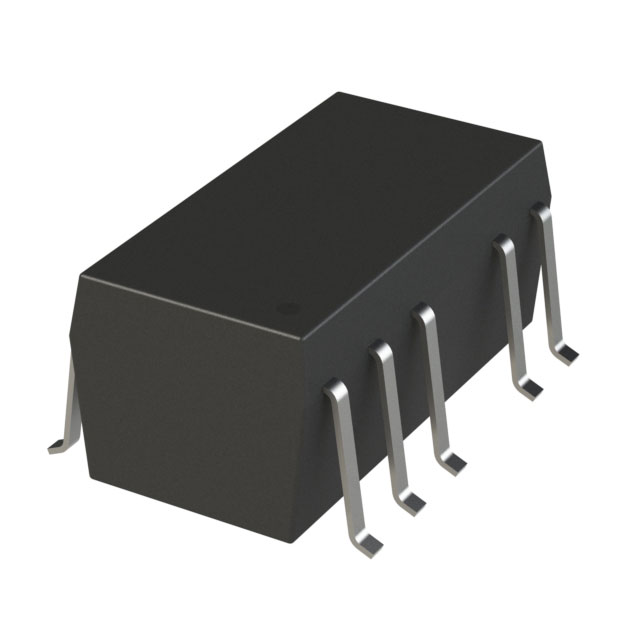

TSV Series
Manufacturer: Traco Power
Beta
⌘K
ISOLATED DC/DC CONVERTERS - SMD 5VIN +/-15V +/-30MA 1W SMT ISO
| Part | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Voltage - Isolation | Power (Watts) | Efficiency | Mounting Type | Voltage - Output 2 | Voltage - Output 1 | Features | Applications | Voltage - Input (Max) [Max] | Number of Outputs | Type | Voltage - Input (Min) [Min] | Package / Case | Current - Output (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | 0.31 in | 15.2 mm | 0.6 " | 0.27 " | 7 mm | 8 mm | 3000 V | 0.9 W | 79 % | Surface Mount | -15 V | 15 V | SCP | ITE (Commercial) | 5.5 V | 2 | Isolated Module | 4.5 V | 22-SMD Module 10 Leads | 30 mA | 85 °C | -40 C |
