WM012 Series

Manufacturer: Serpac

Catalog

BOX ABS GRAY 3.62"L X 2.27"W

Part	Weight	Weight	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Ratings	Container Type	Color	Design	Area (L x W)	Area (L x W)	Height [z]	Height [z]	Features	Material	Material Flammability Rating	Thickness	Thickness	Area (L x W) [custom]	Area (L x W) [custom]

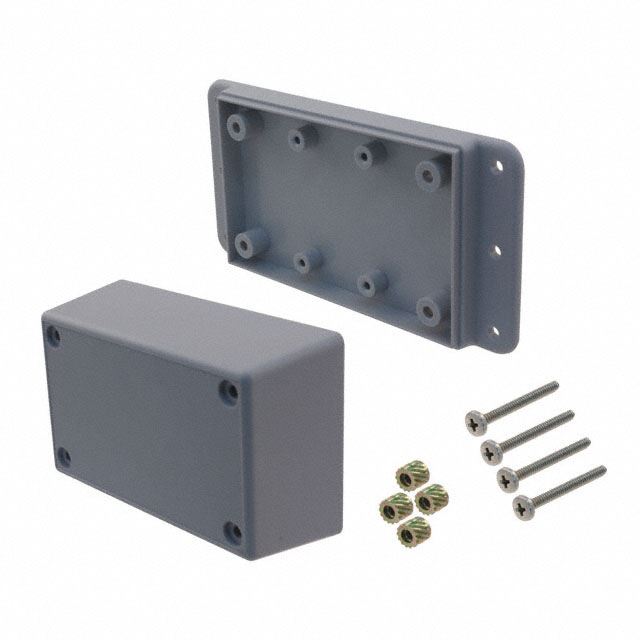

Serpac WM012RI,GY	68.04 g	0.15 lb	3.62 "	2.27 in	57.66 mm	91.95 mm	IP40 NEMA 1	Box	Gray	Cover Included	53 cm²	8.22 in²	1.6 "	40.64 mm	Front Access Mounting Flange PCB Supports Wall Mount	ABS Plastic	UL94 HB	2.54 mm	0.1 in
Serpac WM012RI,BK	68.04 g	0.15 lb	3.62 "	2.27 in	57.66 mm	91.95 mm	IP40 NEMA 1	Box	Black	Cover Included	53 cm²	8.22 in²	1.6 "	40.64 mm	Front Access Mounting Flange PCB Supports Wall Mount	ABS Plastic	UL94 HB	2.54 mm	0.1 in

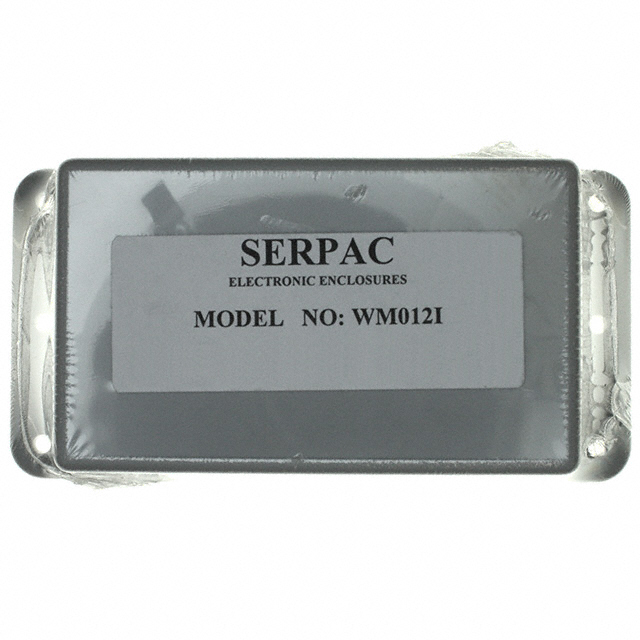

Serpac WM012I,GY	68.04 g	0.15 lb	3.6 "	2.25 in	57.15 mm	91.44 mm	IP40 NEMA 1	Box	Gray	Cover Included			1.6 "	40.64 mm	Mounting Flange PCB Supports Wall Mount	ABS Plastic	UL94 HB	2.54 mm	0.1 in	8.1 in²	52.3 cm²
Serpac WM012I,AL	68.04 g	0.15 lb	3.6 "	2.25 in	57.15 mm	91.44 mm	IP40 NEMA 1	Box	Almond	Cover Included			1.6 "	40.64 mm	Mounting Flange PCB Supports Wall Mount	ABS Plastic	UL94 HB	2.54 mm	0.1 in	8.1 in²	52.3 cm²

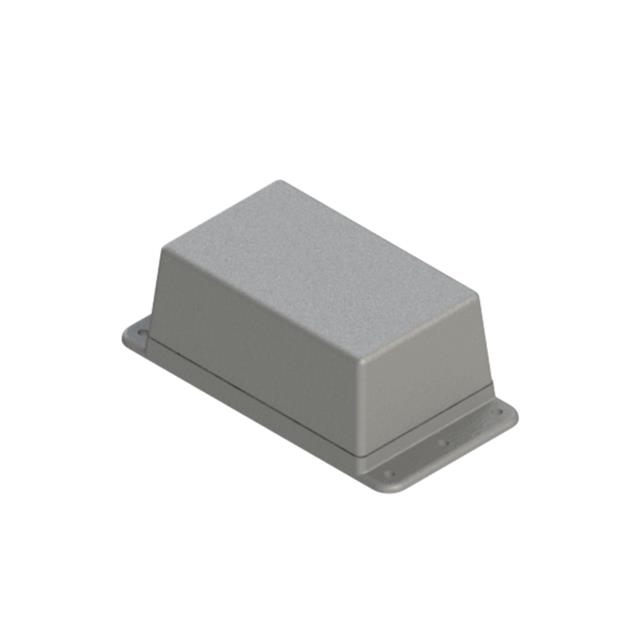

Serpac WM012,GY	68.04 g	0.15 lb	3.6 "	2.25 in	57.15 mm	91.44 mm	IP40 NEMA 1	Box	Gray	Cover Included			1.6 "	40.64 mm	Mounting Flange PCB Supports Wall Mount	ABS Plastic	UL94 HB	2.54 mm	0.1 in	8.1 in²	52.3 cm²
Serpac WM012,BK	68.04 g	0.15 lb	3.6 "	2.25 in	57.15 mm	91.44 mm	IP40 NEMA 1	Box	Black	Cover Included	52.3 cm²	8.1 in²	1.6 "	40.64 mm	Mounting Flange PCB Supports Wall Mount	ABS Plastic	UL94 HB	2.54 mm	0.1 in	8.1 in²	52.3 cm²

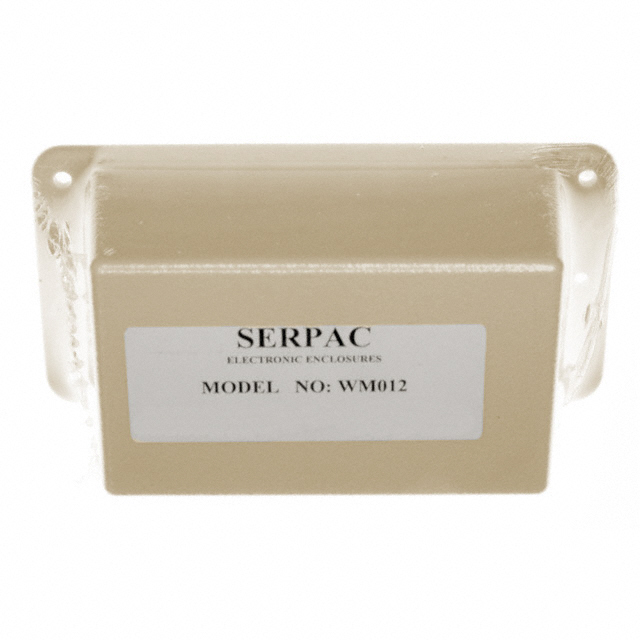

Serpac WM012,AL	68.04 g	0.15 lb	3.6 "	2.25 in	57.15 mm	91.44 mm	IP40 NEMA 1	Box	Almond	Cover Included			1.6 "	40.64 mm	Mounting Flange PCB Supports Wall Mount	ABS Plastic	UL94 HB	2.54 mm	0.1 in	8.1 in²	52.3 cm²

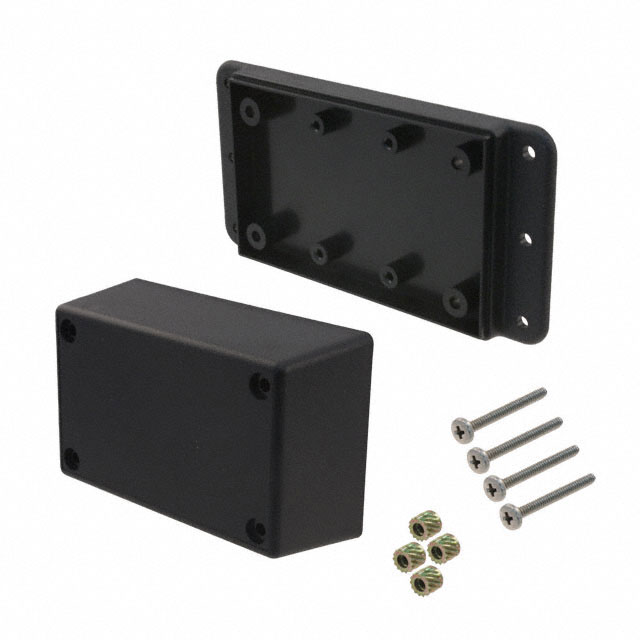

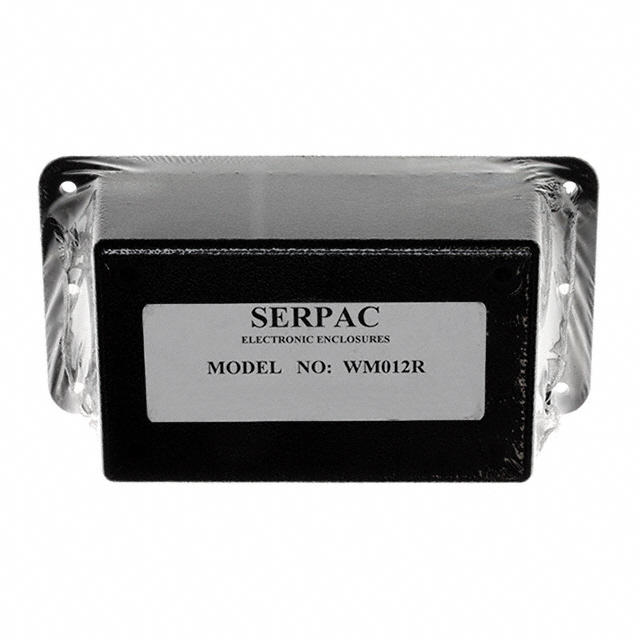

Serpac WM012R,BK	68.04 g	0.15 lb	3.62 "	2.27 in	57.66 mm	91.95 mm	IP40 NEMA 1	Box	Black	Cover Included	53 cm²	8.22 in²	1.6 "	40.64 mm	Front Access Mounting Flange PCB Supports Wall Mount	ABS Plastic	UL94 HB	2.54 mm	0.1 in

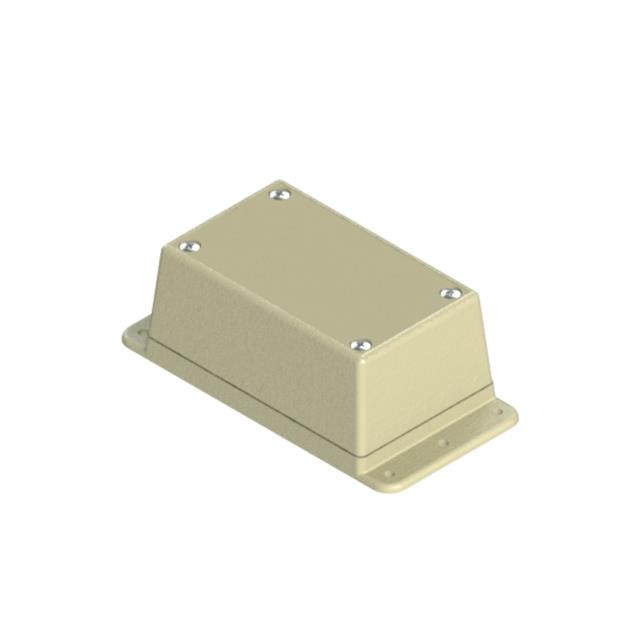

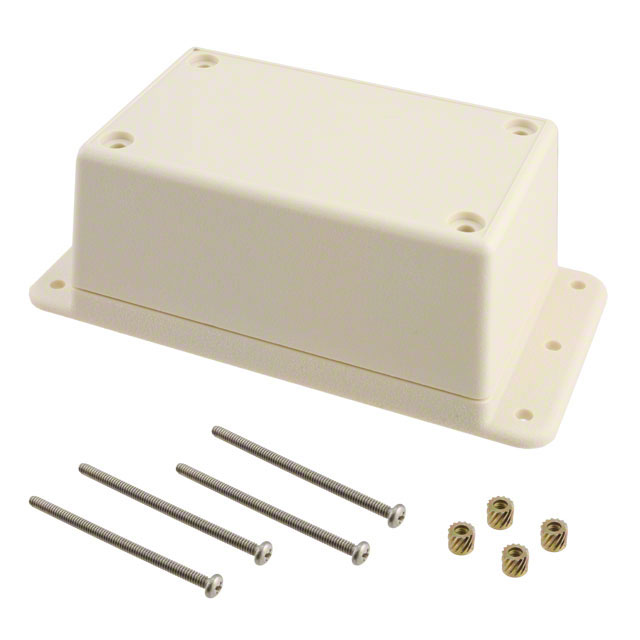

Serpac WM012RI,AL	68.04 g	0.15 lb	3.62 "	2.27 in	57.66 mm	91.95 mm	IP40 NEMA 1	Box	Almond	Cover Included	53 cm²	8.22 in²	1.6 "	40.64 mm	Front Access Mounting Flange PCB Supports Wall Mount	ABS Plastic	UL94 HB	2.54 mm	0.1 in

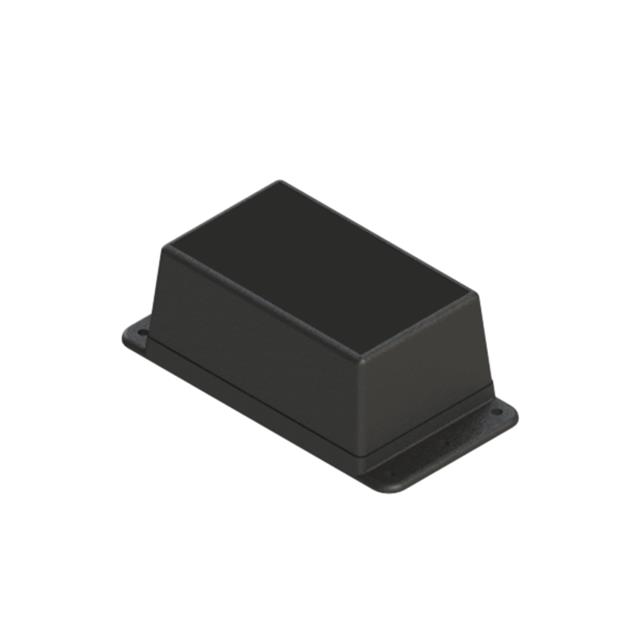

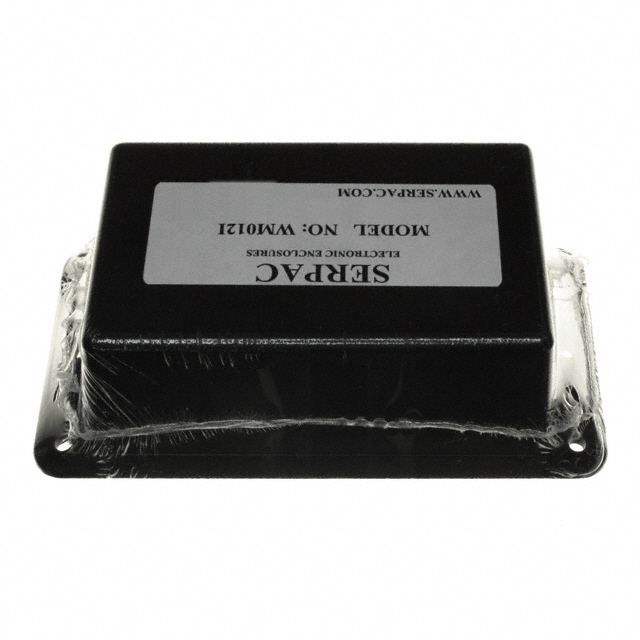

Serpac WM012I,BK	68.04 g	0.15 lb	3.6 "	2.25 in	57.15 mm	91.44 mm	IP40 NEMA 1	Box	Black	Cover Included	52.3 cm²	8.1 in²	1.6 "	40.64 mm	Mounting Flange PCB Supports Wall Mount	ABS Plastic	UL94 HB	2.54 mm	0.1 in	8.1 in²	52.3 cm²
