EMIF06 Series

6-line EMI filter and ESD protection for mini and micro SD card interfaces

Catalog

6-line EMI filter and ESD protection for mini and micro SD card interfaces

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Filter Order	Number of Channels [custom]	Values	Attenuation Value	Applications	Mounting Type	Resistance - Channel (Ohms)	Package / Case	Type	Technology	Operating Temperature [Max]	Operating Temperature [Min]	Height [z]	Height [z]	Current	Height	Height	Size / Dimension	Center / Cutoff Frequency

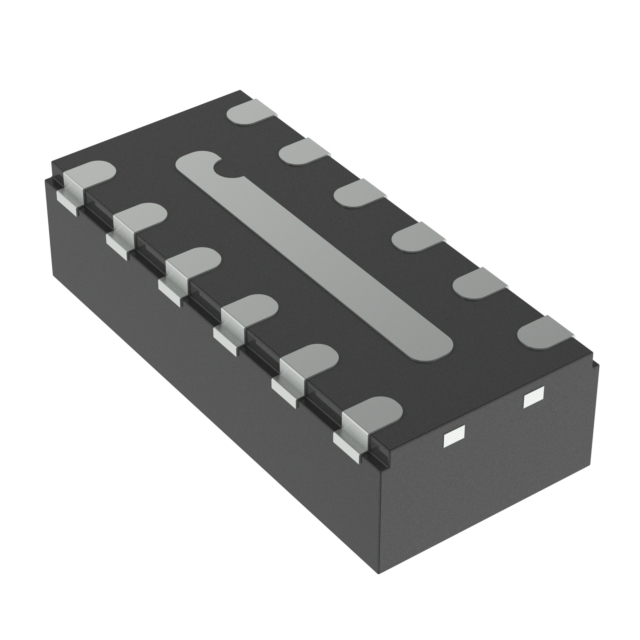

STMicroelectronics EMIF06-1005M12	1.5 mm	2.5 mm	0.098 in	0.059 in	2	6	45 pF 100 Ohms	-34 dB	Data Lines for Mobile Devices	Surface Mount	100 Ohms	12-UFDFN Exposed Pad	Low Pass	RC (Pi)	85 °C	-40 C	0.024 in	0.6 mm

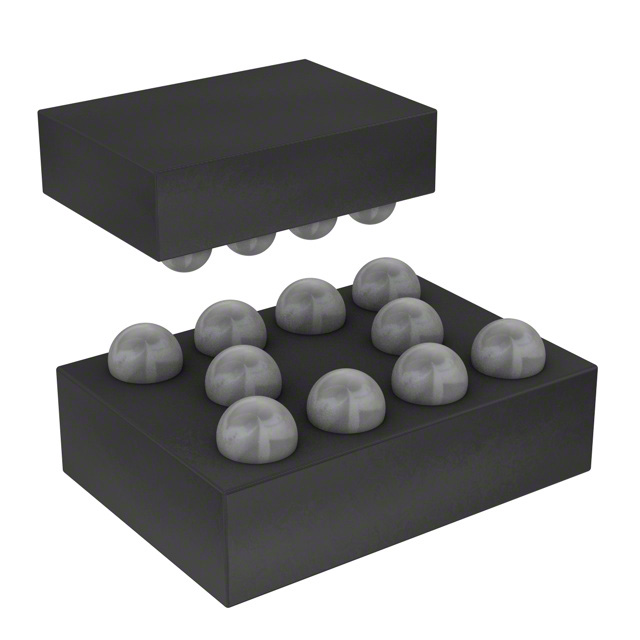

STMicroelectronics EMIF06-10006F2	1.29 mm	2.92 mm	0.115 "	0.051 in	2	6	60 pF 100 Ohms		Data Lines for Mobile Devices	Surface Mount	100 Ohms	15-WFBGA FCBGA	Low Pass	RC (Pi)	85 °C	-40 C	0.028 in	0.7 mm	10 mA
STMicroelectronics EMIF06-USD14F3	1.54 mm	1.54 mm	0.061 in	0.061 in	2	6	7.5 pF 40 Ohms		Data Lines for Mobile Devices	Surface Mount	40 Ohms	15-UFBGA FCBGA	Low Pass	RC (Pi)	85 °C	-30 ░C				5.5 mm	0.217 in
STMicroelectronics EMIF06-USD04F3			0.061 in	0.061 in	2	6	10 pF 40 Ohms		General Purpose	Surface Mount	40 Ohms	15-UFBGA FCBGA	Low Pass	RC	85 °C	-30 ░C	0.022 in	0.56 mm				1.55 mm

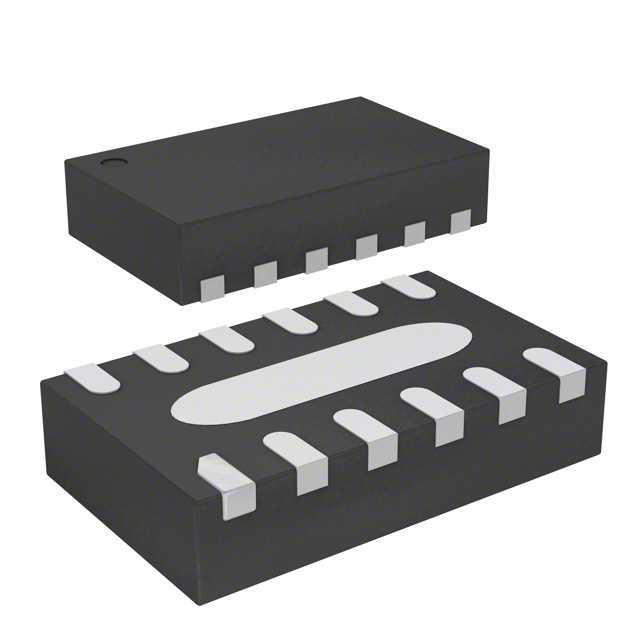

STMicroelectronics EMIF06-1005MX12Y	1.35 mm	3 mm	0.118 "	0.053 "	2	6	45 pF 100 Ohms	-34 dB	Data Lines for Mobile Devices	Surface Mount Wettable Flank	100 Ohms	12-WFDFN Exposed Pad	Low Pass	RC (Pi)	150 °C	-55 C				0.8 mm	0.032 in
STMicroelectronics EMIF06-HMC01F2	1.92 mm	1.92 mm	0.076 in	0.076 "	2	6	20 pF 50 Ohms		Data Lines for Mobile Devices	Surface Mount	50 Ohms	16-WFBGA FCBGA	Low Pass	RC (Pi)	85 °C	-40 C	0.028 in	0.7 mm

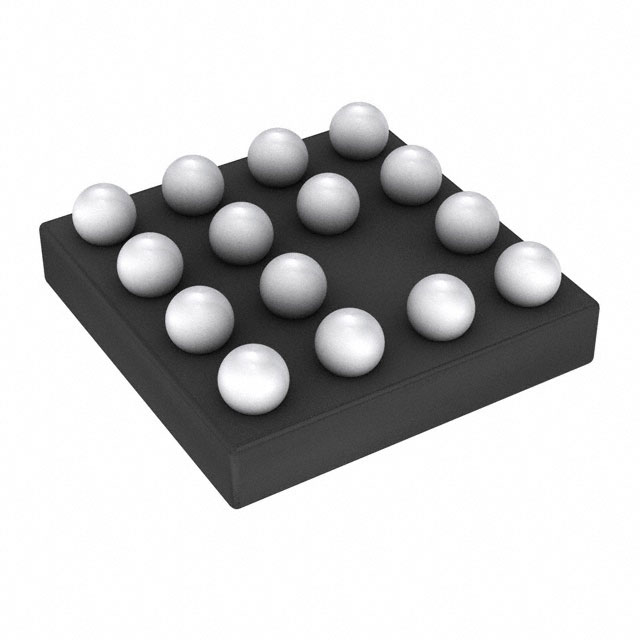

STMicroelectronics EMIF06-HSD04F3	1.62 mm	1.62 mm	0.064 in	0.064 in	2	6	1 Ohm 4.5 pF		Data Lines for Mobile Devices	Surface Mount	1 Ohms	15-UFBGA FCBGA	Low Pass	RC (Pi)	85 °C	-40 C	0.022 in	0.55 mm
STMicroelectronics EMIF06-MSD04F3	1.54 mm	1.54 mm	0.061 in	0.061 in	2	6	7.5 pF 40 Ohms		Data Lines for Mobile Devices	Surface Mount	40 Ohms	16-WFBGA FCBGA	Low Pass	RC (Pi)	85 °C	-40 C	0.026 in	0.65 mm					550 MHz
STMicroelectronics EMIF06-VID01C2	1.29 mm	2.92 mm	0.115 "	0.051 in	2	6	16 pF 100 Ohms	-40 dB	Data Lines for Mobile Devices	Surface Mount	100 Ohms	15-WFBGA FCBGA	Low Pass	RC (Pi)	85 °C	-40 C	0.03 in	0.76 mm

Catalog

6-line EMI filter and ESD protection for mini and micro SD card interfaces

Description

The EMIF06-1005M12 is a 6-line, highly integrated device designed to suppress EMI/RFI noise in all systems exposed to electromagnetic interference. This filter includes ESD protection circuitry, which prevents damage to the application when subjected to ESD surges up to 15 kV on the input pins.
