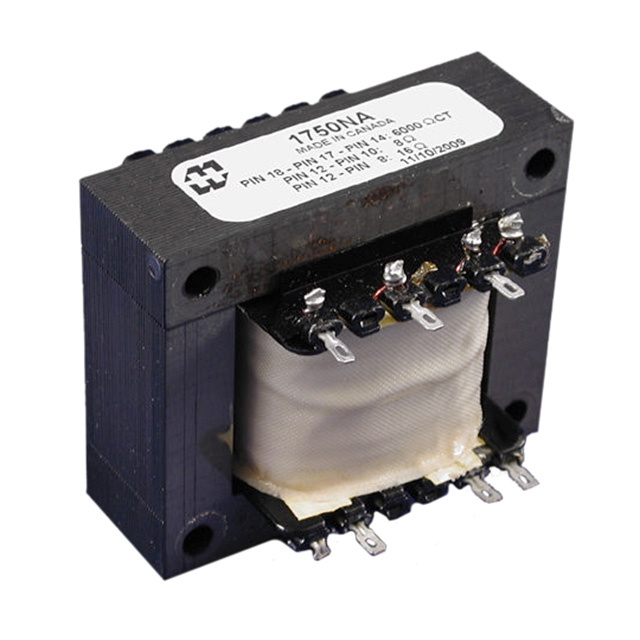

1750N Series
Manufacturer: Hammond Manufacturing
Beta
⌘K
AUDIO XFMR 6KCT / 8, 16 CHAS MNT
| Part | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Voltage - Isolation | DC Resistance (DCR) - Primary | Power Level | DC Resistance (DCR) - Secondary | Impedance - Secondary (Ohms) | Mounting Type | Termination Style | Frequency Range [Max] | Frequency Range [Min] | Impedance - Primary (Ohms) | Frequency Response |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hammond Manufacturing | 3 " | 2.465 " | 62.61 mm | 76.2 mm | 2.525 " | 64.14 mm | 2500 V | 73.2 Ohm 74.41 Ohm 147.4 Ohm | 30 W | 300 mOhm 580 mOhm 820 mOhm | 8 Ohms 16 Ohms | Chassis Mount | Solder Lug | 12 kHz | 50 Hz | 6kCT | 1 dB |
