PCIe® 5.0, 32-Gbps, 16-lane linear redriver
Key Features

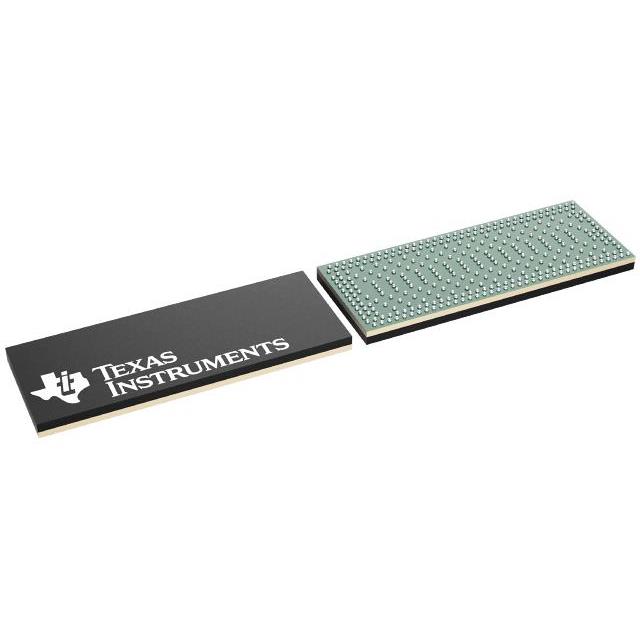

• 16-lane linear redriver supporting PCIe 5.0, CXL 2.0, CCIX , and UPI 2.0Supports data rates up to 32-GbpsIntel retimer common footprint compatible64 integrated AC coupling capacitors on Tx pins inside package saving board spaceCTLE boosts of 21 dB at 16 GHzUltra-low latency of 130 psLow additive random jitter of 50 fs for PRBS dataSingle 3.3 V supplyLow active power of 164 mW/channelI 2C/SMBus or EEPROM programmingAutomatic receiver detection for PCIe use casesSeamless support for PCIe link trainingInternal voltage regulator provides immunity to supply noiseSupport for x4, x8, x16 bus width8.90 mm × 22.80 mm BGA package16-lane linear redriver supporting PCIe 5.0, CXL 2.0, CCIX , and UPI 2.0Supports data rates up to 32-GbpsIntel retimer common footprint compatible64 integrated AC coupling capacitors on Tx pins inside package saving board spaceCTLE boosts of 21 dB at 16 GHzUltra-low latency of 130 psLow additive random jitter of 50 fs for PRBS dataSingle 3.3 V supplyLow active power of 164 mW/channelI 2C/SMBus or EEPROM programmingAutomatic receiver detection for PCIe use casesSeamless support for PCIe link trainingInternal voltage regulator provides immunity to supply noiseSupport for x4, x8, x16 bus width8.90 mm × 22.80 mm BGA package
Description
AI
The DS320PR1601 is a 32-channel (16-channel in each direction) or x16 (16-lane) low-power high-performance linear repeater or redriver designed to support PCIe 5.0, CXL 2.0, UPI 2.0 and other interfaces up to 32 Gbps.
The DS320PR1601 receivers deploy continuous time linear equalizers (CTLE) to provide a programmable high-frequency boost. The equalizer can open an input eye that is completely closed due to inter-symbol interference (ISI) induced by an interconnect medium, such as PCB traces. The CTLE receiver is followed by a linear output driver. The linear datapaths of DS320PR1601 preserves transmit preset signal characteristics. The linear redriver becomes part of the passive channel that as a whole get link trained for best transmit and receive equalization settings. This transparency in the link training protocol results in best electrical link and lowest possible latency. Low channel-channel cross-talk, low additive jitter and excellent return loss makes the device almost a passive element in the link, but with its equalization.
.
.
The DS320PR1601 is a 32-channel (16-channel in each direction) or x16 (16-lane) low-power high-performance linear repeater or redriver designed to support PCIe 5.0, CXL 2.0, UPI 2.0 and other interfaces up to 32 Gbps.
The DS320PR1601 receivers deploy continuous time linear equalizers (CTLE) to provide a programmable high-frequency boost. The equalizer can open an input eye that is completely closed due to inter-symbol interference (ISI) induced by an interconnect medium, such as PCB traces. The CTLE receiver is followed by a linear output driver. The linear datapaths of DS320PR1601 preserves transmit preset signal characteristics. The linear redriver becomes part of the passive channel that as a whole get link trained for best transmit and receive equalization settings. This transparency in the link training protocol results in best electrical link and lowest possible latency. Low channel-channel cross-talk, low additive jitter and excellent return loss makes the device almost a passive element in the link, but with its equalization.
.
.
