DF1-3 Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN HEADER VERT 3POS 2.5MM
| Part | Contact Type | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Current Rating (Amps) | Contact Length - Post | Contact Length - Post | Insulation Material | Contact Length - Mating | Contact Length - Mating | Insulation Height [z] | Insulation Height [z] | Connector Type | Mounting Type | Material Flammability Rating | Contact Shape | Shrouding | Voltage Rating | Overall Contact Length | Overall Contact Length | Style | Contact Finish - Post | Fastening Type | Number of Positions Loaded | Termination | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Color | Contact Material | Features | For Use With/Related Products | Accessory Type | Insulation Height [custom] | Insulation Height [custom] | Contact Finish | Wire Gauge | Color | Pitch | Pitch | Cable Termination | Features | Wire Type | Features [Max] | Features [Min] | Note | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

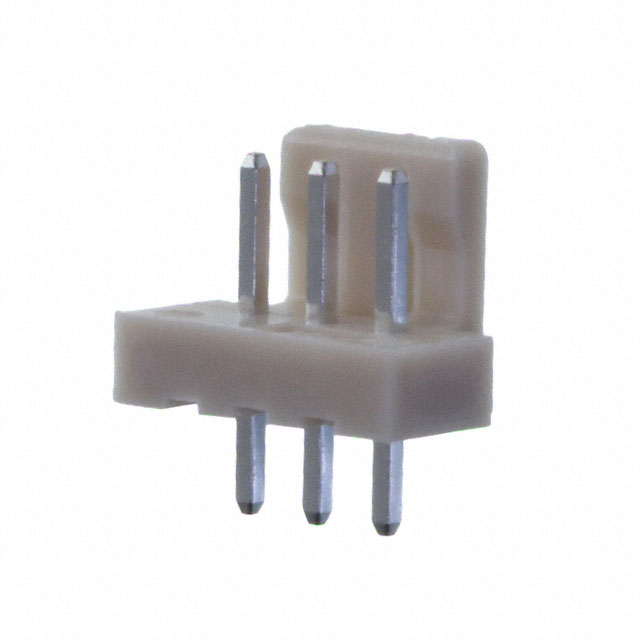

 Hirose Electric Co Ltd | Male Pin | 2.5 mm | 0.098 in | 39.4 µin | 1 µm | 3 A | 0.118 in | 3 mm | Nylon Polyamide (PA) | 0.177 in | 4.5 mm | 7.5 mm | 0.295 in | Header | Through Hole | UL94 V-0 | Square | Shrouded - 1 Wall | 250 V | 10 mm | 0.394 in | Board to Cable/Wire | Tin | Friction Lock | All | Solder | 1 | 85 °C | -30 ░C | Brown | Brass | |||||||||||||||||

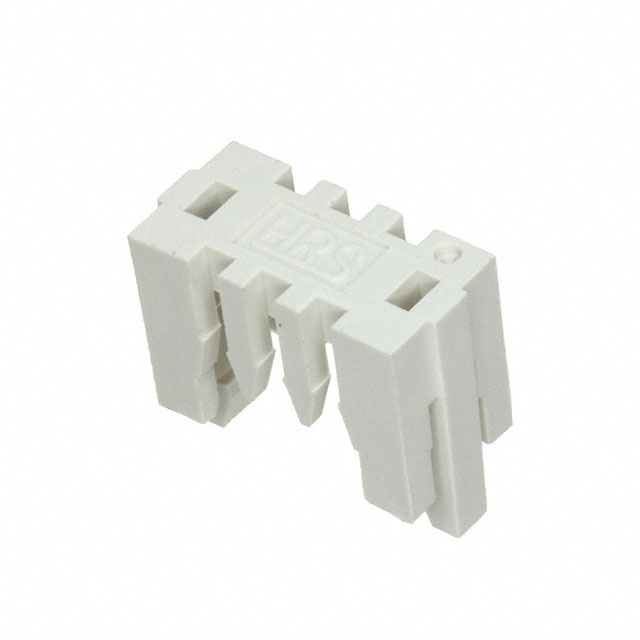

 Hirose Electric Co Ltd | 24 AWG | DF1 Series | Cap (Cover) | |||||||||||||||||||||||||||||||||||||||||||||

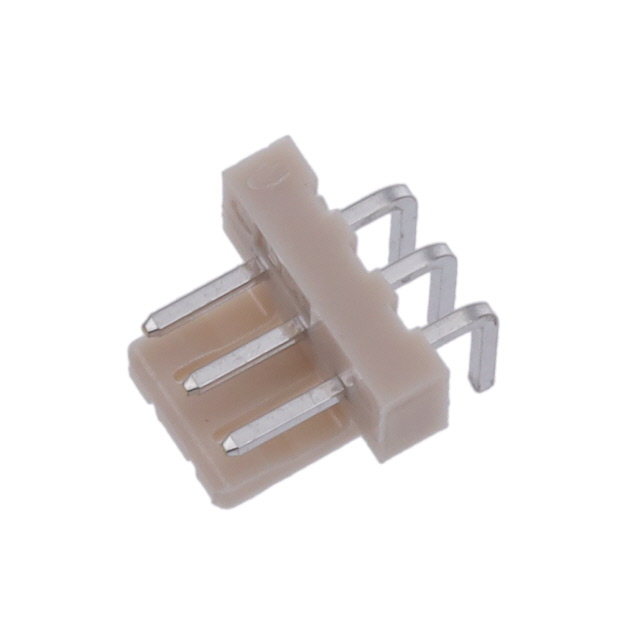

 Hirose Electric Co Ltd | Male Pin | 2.5 mm | 0.098 in | 39.4 µin | 1 µm | 3 A | 0.118 in | 3 mm | Nylon Polyamide (PA) | 0.177 in | 4.5 mm | Header | Right Angle Through Hole | UL94 V-0 | Square | Shrouded - 1 Wall | 250 V | Board to Cable/Wire | Tin | Friction Lock | All | Solder | 1 | 85 °C | -30 ░C | Brown | Brass | 0.236 " | 6 mm | |||||||||||||||||||

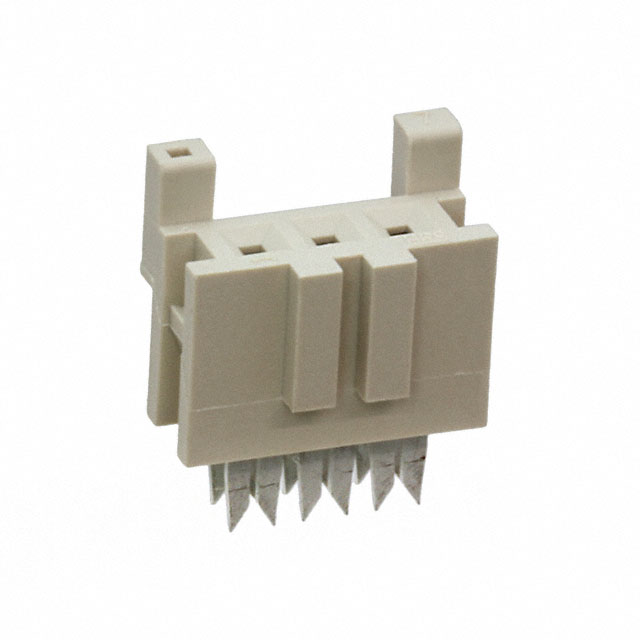

 Hirose Electric Co Ltd | Female Socket | Socket | Free Hanging (In-Line) | 1 | Tin | 24 AWG | Brown | 2.5 mm | 0.098 in | IDC | Feed Through | Discrete | ||||||||||||||||||||||||||||||||||||
 Hirose Electric Co Ltd | DF1 Series | Cap (Cover) | 28 AWG | 26 AWG | ||||||||||||||||||||||||||||||||||||||||||||
 Hirose Electric Co Ltd | Female Socket | Nylon Polyamide (PA) | Socket | Free Hanging (In-Line) | 1 | 85 °C | -30 ░C | Brown | 2.5 mm | 0.098 in | Contacts Not Included | Crimp |
