AM3T Series

Manufacturer: aimtec

Catalog

DC DC CONVERTER 5V 3W

Part	Voltage - Input (Max) [Max]	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Number of Outputs	Mounting Type	Voltage - Input (Min) [Min]	Voltage - Output 1	Applications	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Package / Case	Power (Watts)	Type	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2	Voltage - Output 1 [Max] [custom]	Voltage - Output 1 [Min] [custom]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Current - Output (Max)	Package / Case	Approval Agency
aimtec AM3T-1205SZ	18 V	1.5 kV	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	1	Through Hole	9 V	5 V	ITE (Commercial)	600 mA	85 °C	-40 C	76 %	24-DIP Module	3 W	Isolated Module
aimtec AM3T-2415DZ	36 V	1.5 kV	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	2	Through Hole	18 V		ITE (Commercial)		85 °C	-40 C	80 %	24-DIP Module	3 W	Isolated Module	100 mA	100 mA	-15 V	15 V	-15 V
aimtec AM3T-2415D-PNZ	36 V	1.5 kV	0.8 "	0.4 "	31.6 mm	10.2 mm	20.3 mm	1.24 in	2	Through Hole	18 V		ITE (Commercial)		85 °C	-40 C	84 %	24-DIP Module	3 W	Isolated Module	100 mA	100 mA	-15 V	15 V	-15 V
aimtec AM3T-2405SH30-PNZ	36 V	3000 V	0.8 "	0.4 "	31.6 mm	10.2 mm	20.3 mm	1.24 in	1	Through Hole	18 V	5 V	ITE (Commercial)	600 mA	85 °C	-40 C	81 %	24-DIP Module 10 Leads	3 W	Isolated Module
aimtec AM3T-2412D-PNZ	36 V	1.5 kV	0.8 "	0.4 "	31.6 mm	10.2 mm	20.3 mm	1.24 in	2	Through Hole	18 V		ITE (Commercial)		85 °C	-40 C	84 %	24-DIP Module	3 W	Isolated Module			-12 V			-12 V	12 V	125 mA
aimtec AM3T-2412SH35Z	36 V	3.5 kV	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	1	Through Hole	18 V	12 V	ITE (Commercial)	250 mA	85 °C	-40 C		24-DIP Module	3 W	Isolated Module
aimtec AM3T-2415DH35Z	36 V	3.5 kV	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	2	Through Hole	18 V		ITE (Commercial)		85 °C	-40 C	80 %	24-DIP Module	3 W	Isolated Module	100 mA	100 mA	-15 V	15 V	-15 V

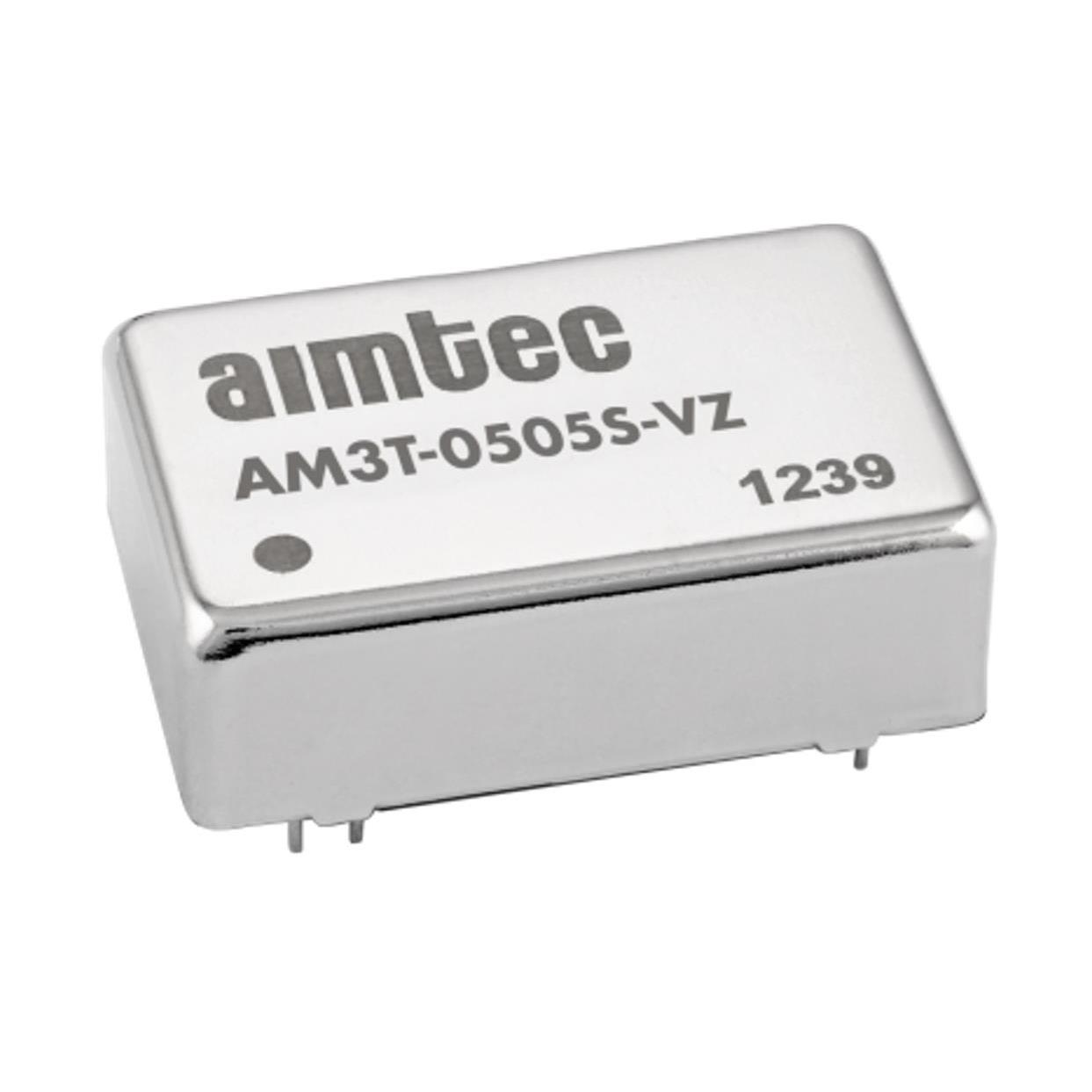

aimtec AM3T-1205S-VZ	18 V	1.5 kV	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	1	Through Hole	9 V	5 V	ITE (Commercial)	600 mA	85 °C	-40 C	76 %	24-DIP Module	3 W	Isolated Module									12 Leads
aimtec AM3T-2412S-NZ	36 V	1.5 kV	0.8 "	1.25 in	10.2 mm	31.8 mm	20.3 mm	0.4 "	1	Through Hole	18 V	12 V	ITE (Commercial)	250 mA	85 °C	-40 C	86 %	24-DIP Module	3 W	Isolated Module
aimtec AM3T-4805S-VZ	72 V	1.5 kV	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	1	Through Hole	36 V	5 V	ITE (Commercial)	600 mA	85 °C	-40 C	77 %	24-DIP Module	3 W	Isolated Module									12 Leads	CE
