BXRV-DR-18 Series

Manufacturer: BRIDGELUX

Catalog

LED MODULES UNI-COLOR WHITE 2-PIN TRAY

Part	Current - Max [Max]	Size / Dimension [x]	Size / Dimension [y]	CRI (Color Rendering Index)	Lumens/Watt @ Current - Test	Viewing Angle	Type	Lens Type	Current - Test	Luminous Flux @ Current/Temperature	Height [z]	CCT (K)	CCT (K) [Max]	CCT (K) [Min]	CCT (K)	Light Emitting Surface (LES) [diameter]	Temperature - Test	Configuration	Color	Voltage - Forward (Vf) (Typ)	Height	Features	Size / Dimension [diameter]
BRIDGELUX BXRV-DR-1827H-1000-A-13	420 mA	15 mm	12 mm	95	83 lm/W	110 °	Chip On Board (COB)	Flat	350 mA	494 lm	1.7 mm	2250 K	2700 K	1800 K	3-Step MacAdam Ellipse	9.3 mm	25 °C	Rectangle	Warm White
BRIDGELUX BXRV-DR-1830H-2000-A-13	720 mA	24 mm	20 mm	95	101 lm/W	110 °	Chip On Board (COB)	Flat	600 mA	2028 lm	1.7 mm	2400 K	3000 K	1800 K		14 mm	25 °C	Rectangle	Warm White	33.5 V
BRIDGELUX BXRV-DR-1827G-3000-A-13	1.05 A	24 mm	20 mm	90	105 lm/W	110 °	Chip On Board (COB)	Flat	950 mA		1.7 mm	2250 K	2700 K	1800 K	3-Step MacAdam Ellipse	16.2 mm	25 °C	Rectangle	Warm White	34.1 V
BRIDGELUX BXRV-DR-1830G-2000-A-13	720 mA	24 mm	20 mm	90	115 lm/W	110 °	Chip On Board (COB)	Flat	600 mA	2312 lm	1.7 mm	2400 K	3000 K	1800 K		14 mm	25 °C	Rectangle	Warm White	33.5 V
BRIDGELUX BXRV-DR-1830G-1000-G-13	300 mA	15 mm	12 mm	90	115 lm/W	110 °	Chip On Board (COB)	Flat	250 mA		1.7 mm	2400 K	3000 K	1800 K		9.3 mm	25 °C	Rectangle	Warm White
BRIDGELUX BXRV-DR-1827G-0600-A-13	420 mA	15 mm	12 mm	90	103 lm/W	110 °	Chip On Board (COB)	Flat	350 mA	613 lm	1.7 mm				1800K 3-Step MacAdam Ellipse 2700K 3-Step MacAdam Ellipse	9.3 mm	25 °C	Rectangle	Warm White
BRIDGELUX BXRV-DR-1827H-2000-A-13	720 mA	24 mm	20 mm	95	83 lm/W	110 °	Chip On Board (COB)	Flat	600 mA		1.7 mm	2250 K	2700 K	1800 K	3-Step MacAdam Ellipse	14 mm	25 °C	Rectangle	Warm White	33.5 V
BRIDGELUX BXRV-DR-1830H-3000-A-13	1.05 A	24 mm	20 mm	95	102 lm/W	110 °	Chip On Board (COB)	Flat	950 mA	3300 lm	1.7 mm	2400 K	3000 K	1800 K		16.2 mm	25 °C	Rectangle	Warm White	34.1 V

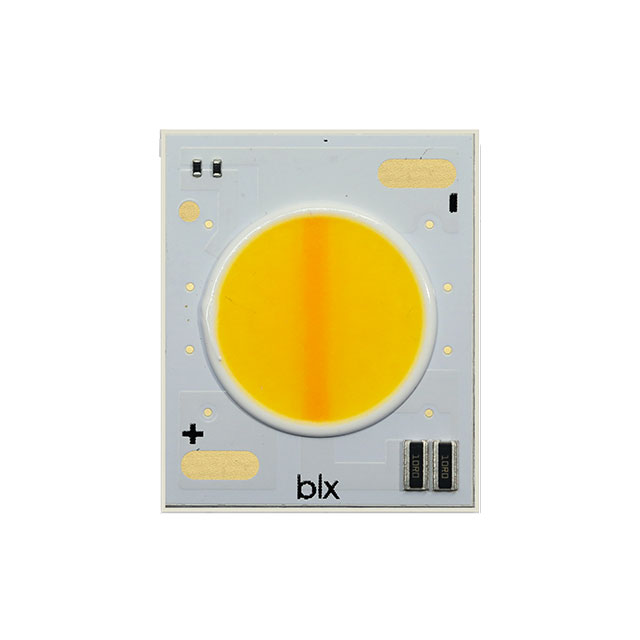

BRIDGELUX BXRV-DR-1830H-1000-A-13	420 mA	15 mm	12 mm	95	96 lm/W	110 °	Chip On Board (COB)	Flat	350 mA	570 lm	1.7 mm	2400 K	3000 K	1800 K		9.3 mm	25 °C	Rectangle	Warm White
BRIDGELUX BXRV-DR-1830G-1000-A-13-S2	420 mA			90	103 lm/W	110 °	Chip On Board (COB)	Flat	350 mA	613 lm		1800 K 3000 K				9.1 mm	25 °C	Round	Warm White		3.8 mm	With Holder	30.8 mm
