HV2802 Series

Low Harmonic Distortion, 32-Channel SPST, High-Voltage Analog Switch

Catalog

Low Harmonic Distortion, 32-Channel SPST, High-Voltage Analog Switch

Part	Switch Circuit	On-State Resistance (Max) [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	Voltage - Supply, Dual (V±) [Max]	Voltage - Supply, Dual (V±) [Min]	Applications	Supplier Device Package	Package / Case	Multiplexer/Demultiplexer Circuit	Number of Channels [custom]
Microchip Technology HV2802GA-G	SPST	38 Ohm	Surface Mount	70 °C	0 °C	40 V	200 V	160 V	-40 V	Ultrasound	78-VFBGA (9x9)	78-VFBGA	1:1	32

Catalog

Low Harmonic Distortion, 32-Channel SPST, High-Voltage Analog Switch

Key Features

• + 32-channel high voltage analog switch in SPST configuration

• + 3.0A peak analog signal current per channel

• + 3.3V or 5.0V CMOS input logic level

• + 20MHz data shift clock frequency

• + HVCMOS technology for high performance

• + Very low quiescent power dissipation

• + Low parasitic capacitance

• + DC to 50MHz analog signal frequency

• + -60dB typical OFF-isolation at 5.0MHz

• + CMOS logic circuitry for low power

• + Excellent noise immunity

• + Cascadable serial data register with latches

• + Flexible operating supply voltages

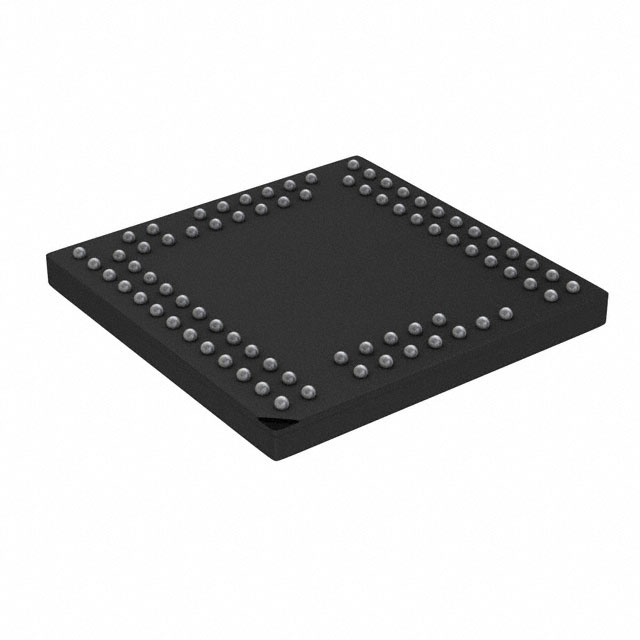

• + 9 x 9 x 1.0 mm VFBGA package

Description

HV2802 is a low charge injection 32-channel SPST high voltage analog switch integrated circuit (IC) intended for use in applications requiring high voltage switching controlled by low voltage control signals, such as medical ultrasound imaging, piezoelectric transducer driver, and printers. Input data are shifted into a 32-bit shift registers that can then be retained in a 32-bit latch. To reduce any possible clock feed through noise, the latch enable bar should be left high until all bits are clocked in. Data are clocked in during the rising edge of the clock. Using HVCMOS technology, this device combines high voltage bilateral DMOS switches and low power CMOS logic to provide efficient control of high voltage analog signals. The device is suitable for various combinations of high voltage supplies, e.g., VPP/VNN: +40V/-160V, +100V/-100V, and +160V/-40V.
