Ultralow Quiescent Current, 150 mA, CMOS Linear Regulators
| Part | Current - Supply (Max) [Max] | Mounting Type | Voltage - Output (Min/Fixed) | Number of Regulators | Protection Features | Output Configuration | Supplier Device Package | Control Features | Current - Quiescent (Iq) | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Max) [Max] | Output Type | Package / Case | Current - Output | Voltage - Output (Min/Fixed) [Min] | PSRR [Max] | PSRR [Min] | Supplied Contents | Utilized IC / Part | Voltage - Output | Board Type | Channels per IC | Voltage - Input [Min] | Voltage - Input [Max] | Regulator Type | Voltage Dropout (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices | 65 µA | Surface Mount | 1.8 V | 1 | Over Current Over Temperature Under Voltage Lockout (UVLO) | Positive | 4-WLCSP (0.96x0.96) | Enable | 1.25 µA | 125 °C | -40 °C | 5.5 V | 1.81 mOhm | 4-WFBGA WLCSP | 150 mA | ||||||||||||
Analog Devices | 65 µA | Surface Mount | 1 | Over Current Over Temperature Under Voltage Lockout (UVLO) | Positive | 4-WLCSP (0.96x0.96) | Enable | 1.25 µA | 125 °C | -40 °C | 5.5 V | 1.81 mOhm | 4-WFBGA WLCSP | 150 mA | 2.3 V | ||||||||||||
 Analog Devices | 65 µA | Surface Mount | 2.5 V | 1 | Over Current Over Temperature Under Voltage Lockout (UVLO) | Positive | Enable | 1.25 µA | 125 °C | -40 °C | 5.5 V | 1.81 mOhm | SOT-23-5 Thin TSOT-23-5 | 150 mA | 65 dB | 50 dB | |||||||||||
Analog Devices | 65 µA | Surface Mount | 3.2 V | 1 | Over Current Over Temperature Under Voltage Lockout (UVLO) | Positive | 4-WLCSP (0.96x0.96) | Enable | 1.25 µA | 125 °C | -40 °C | 5.5 V | 1.81 mOhm | 4-WFBGA WLCSP | 150 mA | ||||||||||||
Analog Devices | 65 µA | Surface Mount | 2.8 V | 1 | Over Current Over Temperature Under Voltage Lockout (UVLO) | Positive | Enable | 1.25 µA | 125 °C | -40 °C | 5.5 V | 1.81 mOhm | SOT-23-5 Thin TSOT-23-5 | 150 mA | |||||||||||||
Analog Devices | 65 µA | Surface Mount | 4.2 V | 1 | Over Current Over Temperature Under Voltage Lockout (UVLO) | Positive | 4-WLCSP (0.96x0.96) | Enable | 1.25 µA | 125 °C | -40 °C | 5.5 V | 1.81 mOhm | 4-WFBGA WLCSP | 150 mA | ||||||||||||

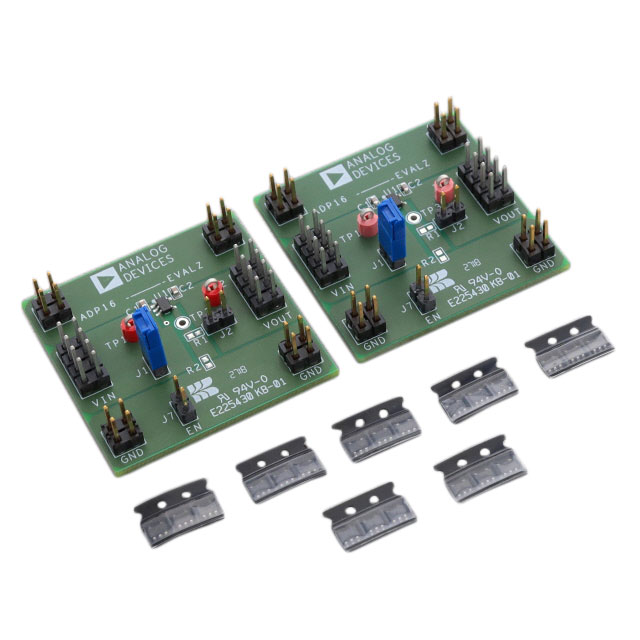

 Analog Devices | 150 mA | Board(s) | ADP162 | 3.3 V 4.2 V | Fully Populated | 1 - Single | 2.2 V | 5.5 V | Positive Fixed | ||||||||||||||||||
Analog Devices | 65 µA | Surface Mount | 3.3 V | 1 | Over Current Over Temperature Under Voltage Lockout (UVLO) | Positive | Enable | 1.25 µA | 125 °C | -40 °C | 5.5 V | 1.81 mOhm | SOT-23-5 Thin TSOT-23-5 | 150 mA | 60 dB | 50 dB | 0.225 V | ||||||||||
Analog Devices | 65 µA | Surface Mount | 1.2 V | 1 | Over Current Over Temperature Under Voltage Lockout (UVLO) | Positive | 4-WLCSP (0.96x0.96) | Enable | 1.25 µA | 125 °C | -40 °C | 5.5 V | 1.81 mOhm | 4-WFBGA WLCSP | 150 mA | 72 dB | 62 dB | ||||||||||
 Analog Devices | 65 µA | Surface Mount | 1.8 V | 1 | Over Current Over Temperature Under Voltage Lockout (UVLO) | Positive | Enable | 1.25 µA | 125 °C | -40 °C | 5.5 V | 1.81 mOhm | SOT-23-5 Thin TSOT-23-5 | 150 mA |
Key Features
• Ultralow quiescent currentIQ= 560 nA with 0 μA loadIQ= 860 nA with 1 μA load
• Stable with 1 μF ceramic input and output capacitors
• Maximum output current: 150 mA
• Input voltage range: 2.2 V to 5.5 V
• Low shutdown current: <50 nA typical
• Low dropout voltage: 195 mV @ 150 mA load
• Initial accuracy: ±1%
• Accuracy over line, load, and temperature: ±3.5%
• 15 fixed output voltage options: 1.2 V to 4.2 V
• Adjustable output available
• PSRR performance of 72 dB @ 100 Hz
• See data sheet for additional features
Description
AI
TheADP160/ADP161/ADP162/ADP163are ultralow quiescent current, low dropout, linear regulators that operate from 2.2 V to 5.5 V and provide up to 150 mA of output current. The low 195 mV dropout voltage at 150 mA load improves efficiency and allows operation over a wide input voltage range.The ADP16x are specifically designed for stable operation with tiny 1 μF ± 30% ceramic input and output capacitors to meet the requirements of high performance, space-constrained applications.The ADP160 is available in 15 fixed output voltage options, ranging from 1.2 V to 4.2 V. The ADP160/ADP161 also include a switched resistor to discharge the output automatically when the LDO is disabled. The ADP162 is identical to the ADP160 but does not include the output discharge function. The ADP161and ADP163 are available as a adjustable output voltage regulators. They are only available in a 5-lead TSOT package. The ADP163 is identical to the ADP161 but does not include the output discharge function.Short-circuit and thermal overload protection circuits prevent damage in adverse conditions. The ADP160 and ADP162 are available in a tiny 5-lead TSOT and a 4-ball, 0.5 mm pitch WLCSP package for the smallest footprint solution to meet a variety of portable power applications.ApplicationsMobile phonesDigital cameras and audio devicesPortable and battery-powered equipmentPost dc-to-dc regulationPortable medical devices
