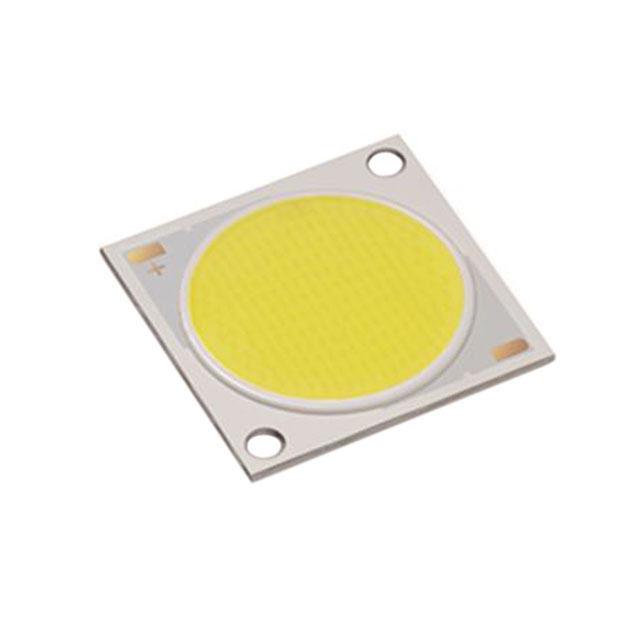

CLU048 Series

Catalog

LED COB CLU048 WM WHT SQ 3000K

Part	Light Emitting Surface (LES) [diameter]	CRI (Color Rendering Index)	Size / Dimension [y]	Size / Dimension [x]	Lumens/Watt @ Current - Test	Current - Test	Luminous Flux @ Current/Temperature	Temperature - Test	Voltage - Forward (Vf) (Typ)	Lens Type	CCT (K)	CCT (K)	Height [z]	Current - Max [Max]	Color	Type	Configuration
Citizen Finedevice Co Ltd CLU048-1818C4-30AL7K3	22 mm	70	28 mm	28 mm	149 lm/W	1.62 A	12552 lm	85 °C	52 V	Flat	3-Step MacAdam Ellipse	3000 K	1.4 mm	4.14 A	Warm White	Chip On Board (COB)	Square
Citizen Finedevice Co Ltd CLU048-1812C4-273M2K1	22 mm	80	28 mm	28 mm	139 lm/W	1.08 A	7787 lm	85 °C	52 V	Flat	3-Step MacAdam Ellipse	2700 K	1.4 mm	2.76 A	Warm White	Chip On Board (COB)	Square
Citizen Finedevice Co Ltd CLU048-1812C4-653M2K1	22 mm	80	28 mm	28 mm	154 lm/W	1.08 A	8664 lm	85 °C	52 V	Flat		6500 K	1.4 mm	2.76 A	Cool White	Chip On Board (COB)	Square
Citizen Finedevice Co Ltd CLU048-1818C4-273M2K1	22 mm	80	28 mm	28 mm	135 lm/W	1.62 A	11367 lm	85 °C	52 V	Flat	3-Step MacAdam Ellipse	2700 K	1.4 mm	4.14 A	Warm White	Chip On Board (COB)	Square
Citizen Finedevice Co Ltd CLU048-1212C4-40AL7K3	22 mm	70	28 mm	28 mm		1.08 A	6069 lm	85 °C	34.6 V	Flat	3-Step MacAdam Ellipse	4000 K	1.4 mm	2.76 A	Neutral White	Chip On Board (COB)	Square
Citizen Finedevice Co Ltd CLU048-1812C4-40AL7K3	22 mm	70	28 mm	28 mm	158 lm/W	1.08 A	8883 lm	85 °C	52 V	Flat	3-Step MacAdam Ellipse	4000 K	1.4 mm	2.76 A	Neutral White	Chip On Board (COB)	Square
Citizen Finedevice Co Ltd CLU048-1212C4-353M2K1	22 mm	80	28 mm	28 mm	152 lm/W	1.08 A	5674 lm	85 °C	34.6 V	Flat	3-Step MacAdam Ellipse	3500 K	1.4 mm	2.76 A	Warm White	Chip On Board (COB)	Square
Citizen Finedevice Co Ltd CLU048-1812C4-353H5K2	22 mm	90	28 mm	28 mm	122 lm/W	1.08 A	6848 lm	85 °C	52 V	Flat	3-Step MacAdam Ellipse	3500 K	1.4 mm	2.76 A	Warm White	Chip On Board (COB)	Square
Citizen Finedevice Co Ltd CLU048-1812C4-273H5K2	22 mm	90	28 mm	28 mm	115 lm/W	1.08 A	6432 lm	85 °C	52 V	Flat	3-Step MacAdam Ellipse	2700 K	1.4 mm	2.76 A	Warm White	Chip On Board (COB)	Square
Citizen Finedevice Co Ltd CLU048-1812C4-30AL7K3	22 mm	70	28 mm	28 mm	153 lm/W	1.08 A	8601 lm	85 °C	52 V	Flat	3-Step MacAdam Ellipse	3000 K	1.4 mm	2.76 A	Warm White	Chip On Board (COB)	Square
