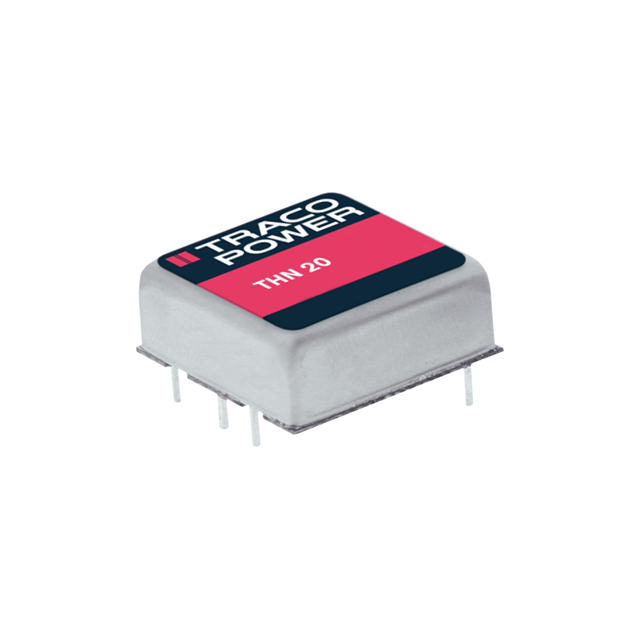

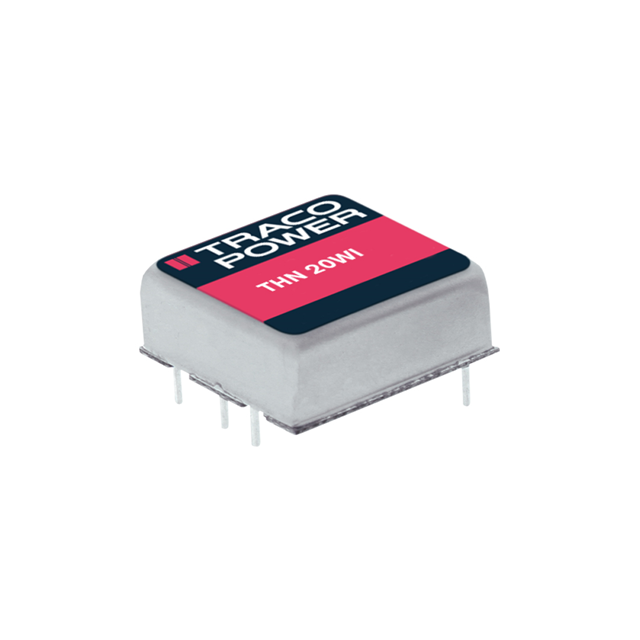

THN 20 Series
Manufacturer: Traco Power
Beta
⌘K
DC DC CONVERTER +/-12V 20W
| Part | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Approval Agency | Applications | Type | Voltage - Output 1 | Number of Outputs | Features | Voltage - Isolation | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency | Current - Output (Max) | Current - Output (Max) | Voltage - Output 2 | Package / Case | Power (Watts) | Mounting Type | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | 36 V | 9 V | CB cURus | ITE (Commercial) | Isolated Module | 12 V | 2 | OVP Remote On/Off SCP | 1.5 kV | 75 °C | -40 °C | 89 % | 833 mA | 833 mA | -12 V | 6-DIP Module | 20 W | Through Hole | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | |
Traco Power | 36 V | 9 V | CB cURus | ITE (Commercial) | Isolated Module | 3.3 V | 1 | OVP Remote On/Off SCP | 1.5 kV | 75 °C | -40 °C | 86 % | 6-DIP Module | 15 W | Through Hole | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 4.5 A | |||
 Traco Power | 75 V | 36 V | ITE (Commercial) | Isolated Module | 15 V | 1 | OVP Remote On/Off SCP | 1.5 kV | 75 °C | -40 °C | 90 % | 6-DIP Module | 20 W | Through Hole | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 1.33 A | ||||
 Traco Power | 75 V | 36 V | ITE (Commercial) | Isolated Module | 3.3 V | 1 | OVP Remote On/Off SCP | 1.5 kV | 75 °C | -40 °C | 86 % | 6-DIP Module | 15 W | Through Hole | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 4.5 A | ||||
 Traco Power | 36 V | 18 V | ITE (Commercial) | Isolated Module | 5 V | 1 | OVP Remote On/Off SCP | 1.5 kV | 75 °C | -40 °C | 90 % | 6-DIP Module | 20 W | Through Hole | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 4 A | ||||
Traco Power | 18 V | 9 V | ITE (Commercial) | Isolated Module | 5 V | 1 | OVP Remote On/Off SCP | 1.5 kV | 75 °C | -40 °C | 90 % | 6-DIP Module | 20 W | Through Hole | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 4 A | ||||
Traco Power | 18 V | 9 V | ITE (Commercial) | Isolated Module | 3.3 V | 1 | OVP Remote On/Off SCP | 1.5 kV | 75 °C | -40 °C | 86 % | 6-DIP Module | 15 W | Through Hole | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 4.5 A | ||||
Traco Power | 75 V | 36 V | ITE (Commercial) | Isolated Module | 12 V | 2 | OVP Remote On/Off SCP | 1.5 kV | 75 °C | -40 °C | 90 % | 833 mA | 833 mA | -12 V | 6-DIP Module | 20 W | Through Hole | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | ||
Traco Power | 36 V | 18 V | ITE (Commercial) | Isolated Module | 3.3 V | 1 | OVP Remote On/Off SCP | 1.5 kV | 75 °C | -40 °C | 86 % | 6-DIP Module | 15 W | Through Hole | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 4.5 A | ||||
Traco Power | 36 V | 9 V | CB cURus | ITE (Commercial) | Isolated Module | 5 V | 1 | OVP Remote On/Off SCP | 1.5 kV | 75 °C | -40 °C | 89 % | 6-DIP Module | 20 W | Through Hole | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 4 A |
