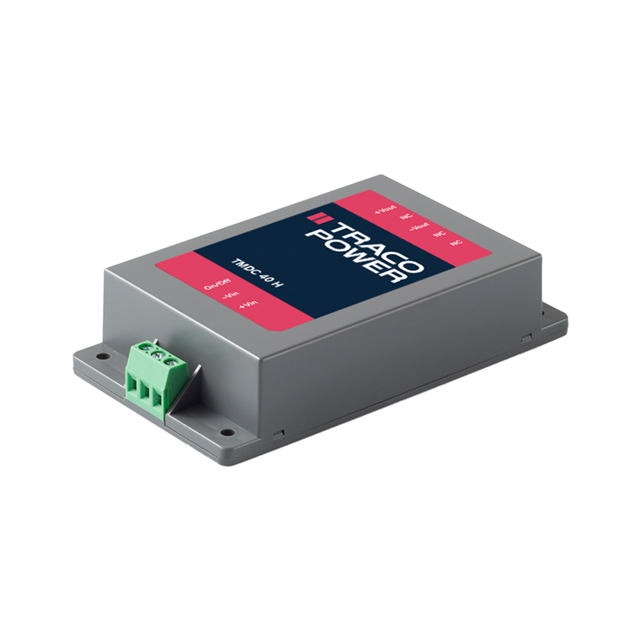

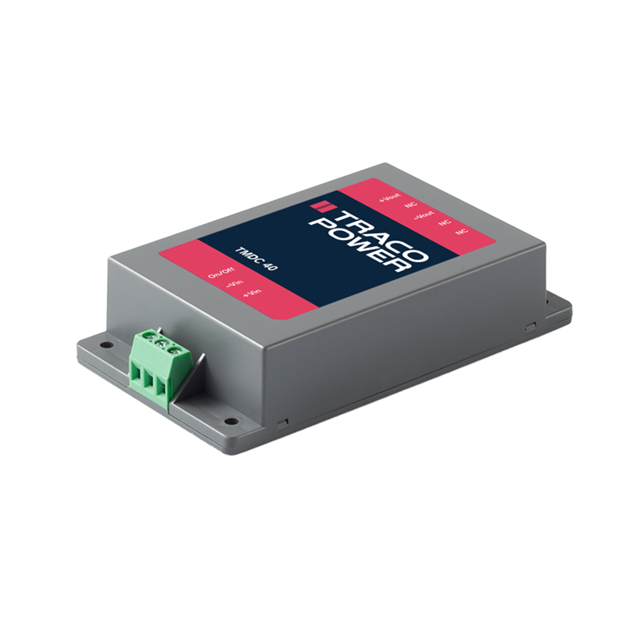

TMDC 40 Series
Manufacturer: Traco Power
Beta
⌘K
ISOLATED DC/DC CONVERTERS - CHASSIS MOUNT 40W DC/DC CONVERTER ISOLATED, REGULATED IN A CHASSIS MOUNT PLASTIC CASE
| Part | Voltage - Isolation | Voltage - Input (Max) [Max] | Power (Watts) | Voltage - Output 1 | Approval Agency | Efficiency | Applications | Current - Output (Max) [Max] | Number of Outputs | Voltage - Input (Min) [Min] | Type | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | 2500 V | 75 V | 41 W | 5.1 V | CB CE cURus | 89 % | ITE (Commercial) | 8 A | 1 | 18 V | Enclosed | -40 °C | 85 °C | Chassis Mount | 25.7 mm | 2.51 " | 112 mm | 1.01 " | 4.41 " | 63.8 mm |
 Traco Power | 2500 V | 75 V | 40 W | 12 V | CB CE cURus | 91 % | ITE (Commercial) | 3.33 A | 1 | 18 V | Enclosed | -40 °C | 85 °C | Chassis Mount | 25.7 mm | 2.51 " | 112 mm | 1.01 " | 4.41 " | 63.8 mm |
 Traco Power | 3000 V | 160 V | 40 W | 15 V | CB CE cURus | 89 % | ITE (Commercial) | 2.67 A | 1 | 80 V | Enclosed | -40 C | 90 °C | Chassis Mount | 25.7 mm | 2.51 " | 112 mm | 1.01 " | 4.41 " | 63.8 mm |
