AZ9731 Series
Manufacturer: American Zettler
Beta
⌘K
RELAY AUTOMOTIVE SPST 40A 12V
| Part | Coil Resistance | Contact Material | Coil Power | Coil Current | Coil Type | Operating Temperature [Max] | Operating Temperature [Min] | Must Operate Voltage | Must Release Voltage | Contact Form | Contact Rating (Current) | Termination Style | Operate Time | Coil Voltage | Switching Voltage [Max] | Mounting Type | Release Time | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 American Zettler | 90 Ohms | Silver Tin Oxide (AgSnO) | 1.6 W | 133.3 mA | Non Latching | 125 °C | -40 C | 7.8 VDC | 1.8 VDC | SPST-NO (1 Form A) | 40 A | Plug In Quick Connect - 0.250" (6.3mm) | 7 ms | 12 VDC | 75 VDC | Chassis Mount | 5 ms | MINI-ISO w/ Steel Mounting Bracket |
 American Zettler | 90 Ohms | Silver Tin Oxide (AgSnO) | 1.6 W | 133.3 mA | Non Latching | 125 °C | -40 C | 7.8 VDC | 1.8 VDC | SPDT (1 Form C) | 30 A | Plug In Quick Connect - 0.250" (6.3mm) | 7 ms | 12 VDC | 75 VDC | Socketable | 5 ms | MINI-ISO |
American Zettler | 90 Ohms | Silver Tin Oxide (AgSnO) | 1.6 W | 133.3 mA | Non Latching | 125 °C | -40 C | 7.8 VDC | 1.8 VDC | SPDT (1 Form C) | 30 A | Plug In Quick Connect - 0.250" (6.3mm) | 7 ms | 12 VDC | 75 VDC | Chassis Mount | 5 ms | MINI-ISO w/ Steel Mounting Bracket Resistor |

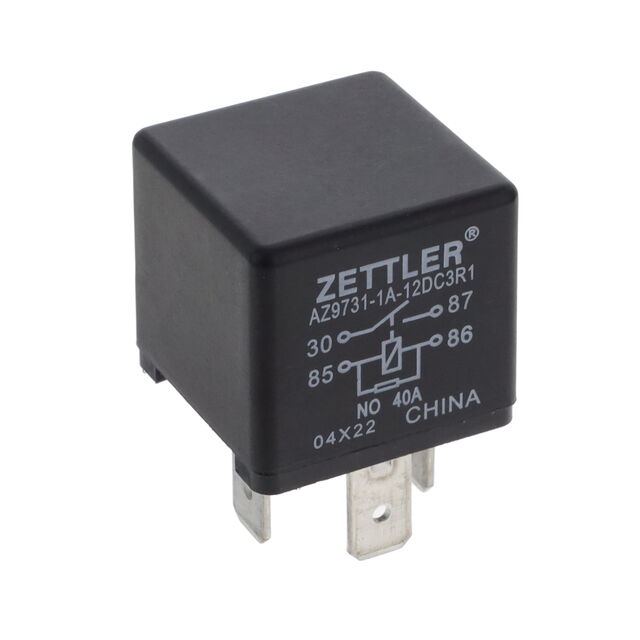

 American Zettler | 90 Ohms | Silver Tin Oxide (AgSnO) | 1.6 W | 133.3 mA | Non Latching | 125 °C | -40 C | 7.8 VDC | 1.8 VDC | SPST-NO (1 Form A) | 40 A | Plug In Quick Connect - 0.250" (6.3mm) | 7 ms | 12 VDC | 75 VDC | Socketable | 5 ms | MINI-ISO Resistor |

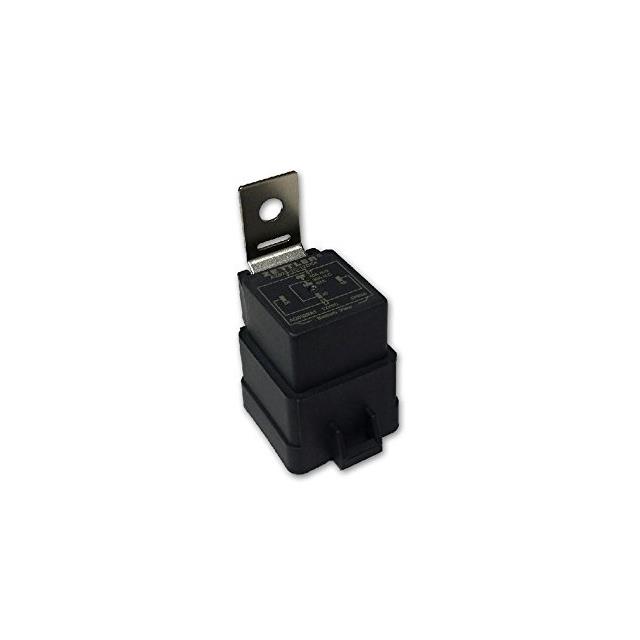

 American Zettler | 90 Ohms | Silver Tin Oxide (AgSnO) | 1.6 W | 133.3 mA | Non Latching | 125 °C | -40 C | 7.8 VDC | 1.8 VDC | SPDT (1 Form C) | 30 A | Plug In Quick Connect - 0.250" (6.3mm) | 7 ms | 12 VDC | 75 VDC | Chassis Mount | 5 ms | MINI-ISO Shrouded w/ Steel Bracket |

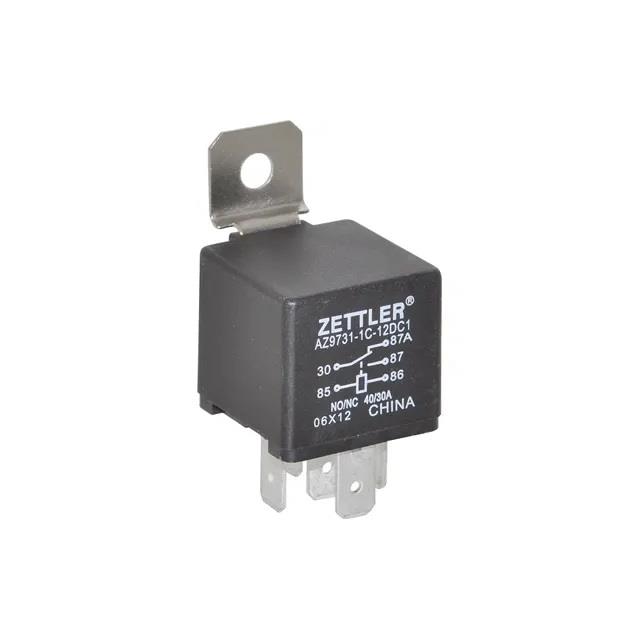

American Zettler | 90 Ohms | Silver Tin Oxide (AgSnO) | 1.6 W | 133.3 mA | Non Latching | 125 °C | -40 C | 7.8 VDC | 1.8 VDC | SPDT (1 Form C) | 30 A | Plug In Quick Connect - 0.250" (6.3mm) | 7 ms | 12 VDC | 75 VDC | Chassis Mount | 5 ms | MINI-ISO w/ Steel Mounting Bracket |
American Zettler | 90 Ohms | Silver Tin Oxide (AgSnO) | 1.6 W | 133.3 mA | Non Latching | 125 °C | -40 C | 7.8 VDC | 1.8 VDC | SPST-NO (1 Form A) | 40 A | Plug In Quick Connect - 0.250" (6.3mm) | 7 ms | 12 VDC | 75 VDC | Chassis Mount | 5 ms | MINI-ISO Resistor Shrouded w/ Steel Bracket Sealed - Epoxy |
American Zettler | 90 Ohms | Silver Tin Oxide (AgSnO) | 1.6 W | 133.3 mA | Non Latching | 125 °C | -40 C | 7.8 VDC | 1.8 VDC | SPST-NO (1 Form A) | 40 A | Plug In Quick Connect - 0.250" (6.3mm) | 7 ms | 12 VDC | 75 VDC | Chassis Mount | 5 ms | MINI-ISO Shrouded w/ Steel Bracket |
American Zettler | 90 Ohms | Silver Tin Oxide (AgSnO) | 1.6 W | 133.3 mA | Non Latching | 125 °C | -40 C | 7.8 VDC | 1.8 VDC | SPDT (1 Form C) | 30 A | Plug In Quick Connect - 0.250" (6.3mm) | 7 ms | 12 VDC | 75 VDC | Chassis Mount | 5 ms | MINI-ISO Resistor Shrouded w/ Steel Bracket Sealed - Epoxy |
 American Zettler | 90 Ohms | Silver Tin Oxide (AgSnO) | 1.6 W | 133.3 mA | Non Latching | 125 °C | -40 C | 7.8 VDC | 1.8 VDC | SPDT (1 Form C) | 30 A | Plug In Quick Connect - 0.250" (6.3mm) | 7 ms | 12 VDC | 75 VDC | Socketable | 5 ms | MINI-ISO Resistor |
