AOUS664 Series

Catalog

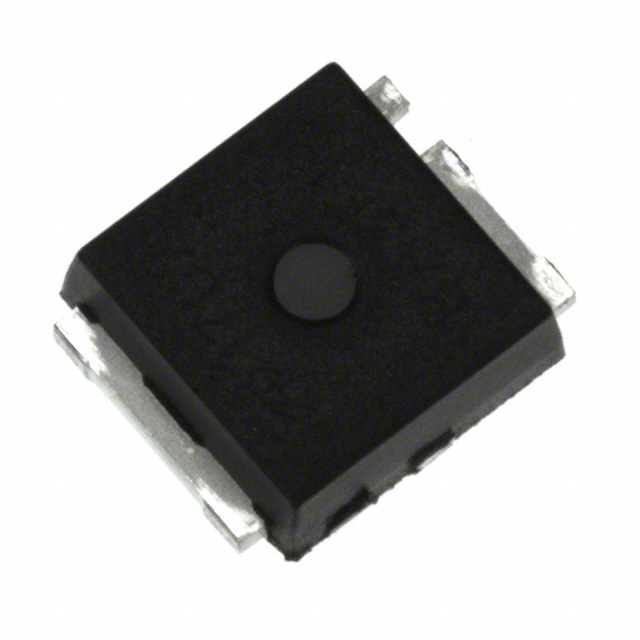

MOSFET N-CH 40V 33A/69A ULTRASO8

Part	Technology	Current - Continuous Drain (Id) @ 25°C	Gate Charge (Qg) (Max) @ Vgs	Drain to Source Voltage (Vdss)	Input Capacitance (Ciss) (Max) @ Vds [Max]	FET Type	Vgs (Max)	Supplier Device Package	Power Dissipation (Max)	Drive Voltage (Max Rds On, Min Rds On)	Package / Case	Vgs(th) (Max) @ Id	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Rds On (Max) @ Id, Vgs	Gate Charge (Qg) (Max) @ Vgs [Max]
Alpha & Omega Semiconductor Inc. AOUS66416	MOSFET (Metal Oxide)	33 A 69 A	50 nC	40 V	2575 pF	N-Channel	20 V	UltraSO-8™	6.2 W 73.5 W	4.5 V 10 V	3-PowerSMD Flat Leads	2.5 V	150 °C	-55 °C	Surface Mount	3.3 mOhm
Alpha & Omega Semiconductor Inc. AOUS66414	MOSFET (Metal Oxide)	40 A 92 A		40 V	4350 pF	N-Channel	20 V	UltraSO-8™	6.2 W 92 W	4.5 V 10 V	3-PowerSMD Flat Leads	2.3 V	150 °C	-55 °C	Surface Mount	2.2 mOhm	80 nC
