MAX77813 Series

Catalog

IC REG BUCK BST

Part	Topology	Function	Regulator Topology	Board Type	Frequency - Switching	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output	Utilized IC / Part	Voltage - Output	Outputs and Type	Outputs and Type	Main Purpose	Supplied Contents	Voltage - Input (Min) [Min]	Output Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed)	Package / Case	Output Type	Voltage - Output (Max) [Max]	Mounting Type	Supplier Device Package [y]	Supplier Device Package	Supplier Device Package [x]	Number of Outputs
Analog Devices Inc./Maxim Integrated MAX77813EWP+T	Boost Buck	Step-Down Step-Up/Step-Down

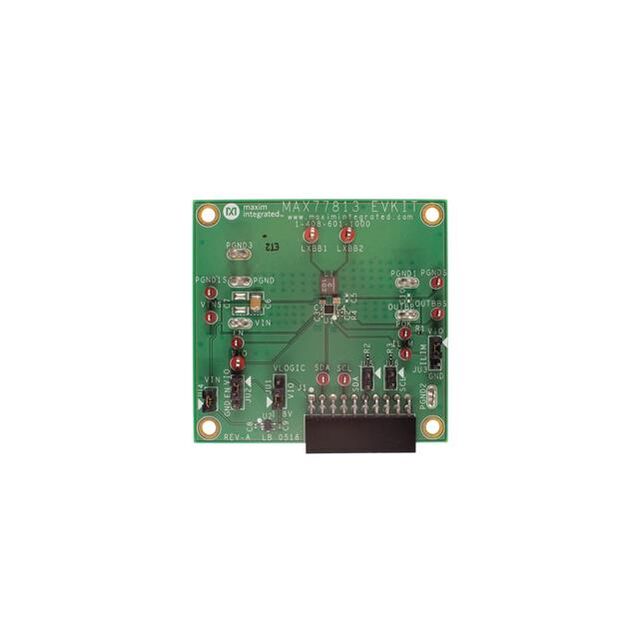

Analog Devices Inc./Maxim Integrated MAX77813EVKIT#			Buck-Boost	Fully Populated	2.5 MHz	2.3 V	5.5 V	2 A	MAX77813	3.3 V	Non-Isolated	1	DC/DC Step Up or Down	Board(s)
Analog Devices Inc./Maxim Integrated MAX77813EWP33+T	Buck-Boost	Step-Down Step-Up/Step-Down			2.5 MHz			2 A							2.3 V	Positive	-40 °C	125 ¯C	5.5 V	2.6 V	20-WFBGA WLBGA	Programmable	5.14 V	Surface Mount	2.13	20-WLP	1.83	1
Analog Devices Inc./Maxim Integrated MAX77813EWP33+	Buck-Boost	Step-Down Step-Up/Step-Down			2.5 MHz			2 A							2.3 V	Positive	-40 °C	125 ¯C	5.5 V	2.6 V	20-WFBGA WLBGA	Programmable	5.14 V	Surface Mount	2.13	20-WLP	1.83	1
