STEVAL-IPE014V1 Series

Multiphase energy meter daughterboard based on the STPMS2 smart sensor device

Catalog

Multiphase energy meter daughterboard based on the STPMS2 smart sensor device

Part	Supplied Contents	Embedded	Type	Contents	Function	Utilized IC / Part	Secondary Attributes	Primary Attributes
STMicroelectronics STEVAL-IPE014V1	Board(s)		Power Management	Board(s)	Energy/Power Meter	STPMC1 STPMS2L	On-Board LEDs	1 Phase 2 Phase 3 Phase

Catalog

Multiphase energy meter daughterboard based on the STPMS2 smart sensor device

Description

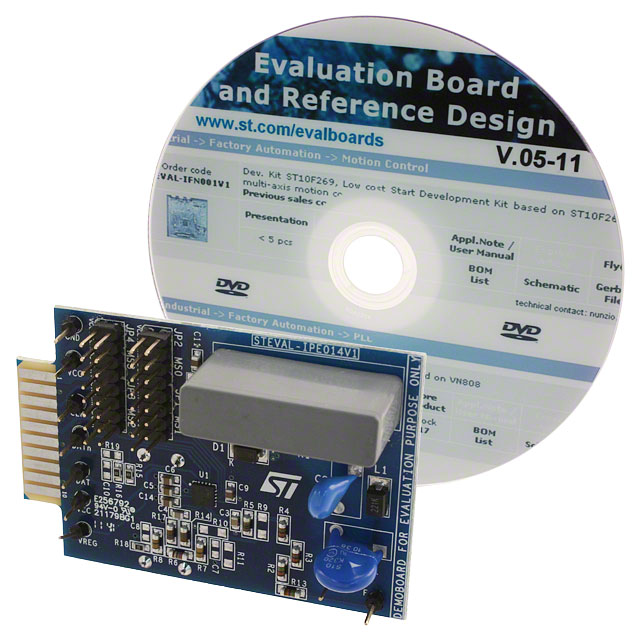

The STEVAL-IPE014V1 is a daughterboard based on the STPMS2 "smart sensor" device, and is designed for use with the STPMC1-based STEVAL-IPE010V1 motherboard. Together the system provides a complete, ready-to-use energy meter application. When connected to the motherboard, each STEVAL-IPE014V1 daughterboard serves a single phase, converting and multiplexing the voltage and current information and sending the stream to the STPMC1 energy calculator IC.
