MIP50 Series

Catalog

IGBT MODULES 1200V 50A, E1A

Part	Input Capacitance (Cies) @ Vce	Vce(on) (Max) @ Vge, Ic	Package / Case	Current - Collector (Ic) (Max)	NTC Thermistor	Power - Max [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Mounting Type	Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Input	Current - Collector Cutoff (Max) [Max]

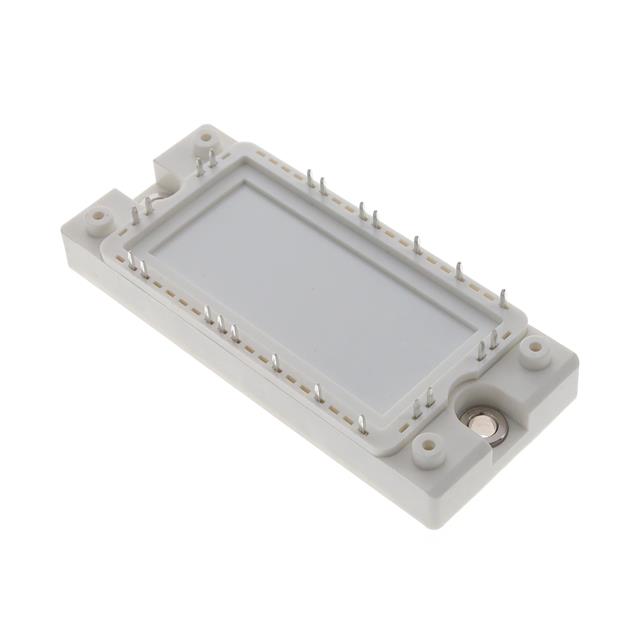

Micro Commercial Components MIP50R12E1ATN-BP	2.6 nF	2.3 V	Module	50 A		288 W	1200 V	Chassis Mount	Three Phase Inverter	150 °C	-40 °C	E1A	Three Phase Bridge Rectifier	1 mA
Micro Commercial Components MIP50R12E2ATN-BP	2.6 nF	2.3 V	Module	50 A		288 W	1200 V	Chassis Mount	Three Phase Inverter	150 °C	-40 °C	E2A	Three Phase Bridge Rectifier	1 mA
