TEQ 20 Series

Catalog

DC/DC CONVERTER 15V 20W

Part	Voltage - Output 1	Voltage - Input (Min) [Min]	Mounting Type	Voltage - Input (Max) [Max]	Applications	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Current - Output (Max) [Max]	Type	Number of Outputs	Voltage - Isolation	Power (Watts)	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 2	Approval Agency	Current - Output (Max)	Current - Output (Max)

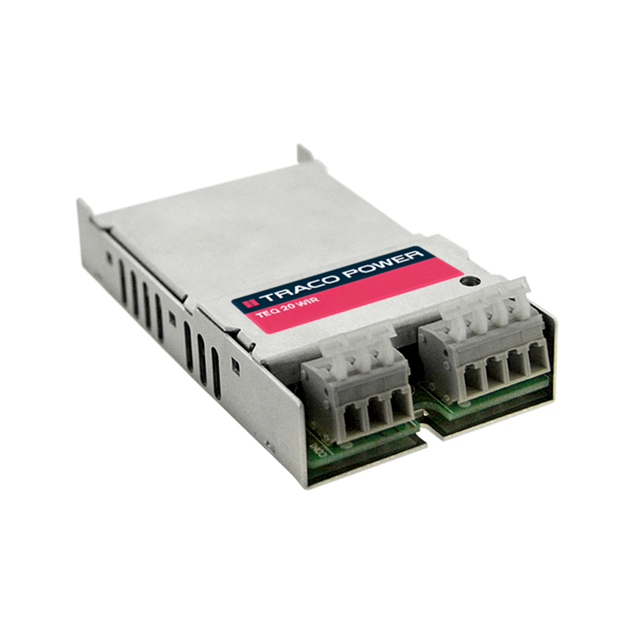

Traco Power TEQ 20-2413WIR	15 V	9 V	Chassis Mount	36 V	ITE (Commercial) Railway	57.2 mm	2.25 in	4.06 in	103.1 mm	26.2 mm	1.03 in	1.33 A	Enclosed	1	2250 VDC	20 W	87 %	-40 °C	93 °C
Traco Power TEQ 20-4815WIR	24 V	18 V	Chassis Mount	75 V	ITE (Commercial) Railway	57.2 mm	2.25 in	4.06 in	103.1 mm	26.2 mm	1.03 in	833 mA	Enclosed	1	2250 VDC	20 W	87 %	-40 °C	93 °C
Traco Power TEQ 20-4813WIR	15 V	18 V	Chassis Mount	75 V	ITE (Commercial) Railway	57.2 mm	2.25 in	4.06 in	103.1 mm	26.2 mm	1.03 in	1.33 A	Enclosed	1	2250 VDC	20 W	88 %	-40 °C	93 °C
Traco Power TEQ 20-4812WIR	12 V	18 V	Chassis Mount	75 V	ITE (Commercial) Railway	57.2 mm	2.25 in	4.06 in	103.1 mm	26.2 mm	1.03 in	1.67 A	Enclosed	1	2250 VDC	20 W	88 %	-40 °C	93 °C
Traco Power TEQ 20-4811WIR	5 V	18 V	Chassis Mount	75 V	ITE (Commercial) Railway	57.2 mm	2.25 in	4.06 in	103.1 mm	26.2 mm	1.03 in	4 A	Enclosed	1	2250 VDC	20 W	87 %	-40 °C	93 °C
Traco Power TEQ 20-7223WIR	15 V	43 V	Chassis Mount	160 V	ITE (Commercial) Railway	57.2 mm	2.25 in	4.06 in	103.1 mm	26.2 mm	1.03 in		Enclosed	2	2250 VDC	20 W	88 %	-40 °C	93 °C	-15 V	CB CE cURus	667 mA	667 mA
Traco Power TEQ 20-4823WIR	15 V	18 V	Chassis Mount	75 V	ITE (Commercial) Railway	57.2 mm	2.25 in	4.06 in	103.1 mm	26.2 mm	1.03 in		Enclosed	2	2250 VDC	20 W	88 %	-40 °C	93 °C	-15 V	CB CE cURus	667 mA	667 mA
