AME60 Series

Manufacturer: aimtec

Catalog

AC/DC CONVERTER 12V 60W

Part	Weight	Weight	Voltage - Output 1	Number of Outputs	Package / Case	Mounting Type	Voltage - Input [Min]	Voltage - Input [Max]	Type	Line Regulation	Power (Watts)	Standard Number	Applications	Current - Output (Max)	Load Regulation	Efficiency	Load Regulation	Approval Agency	Features	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output 1	Current - Output (Max) [Max]
aimtec AME60-12S277VZ	0.661 lb	300 g	12 V	1	6-DIP Module	Through Hole	85 VAC 100 V	305 VAC 430 VDC	Enclosed	0.5 %	60 W	62368-1	ITE (Commercial)	5 A	±1%	86 %
aimtec AME60-12SMJZ	0.683 lb	310 g	12 V	1	6-DIP Module	Through Hole	90 VAC	264 VAC	Enclosed	0.5 %	60 W		ITE (Commercial)	5 A		86 %	0.5 %	CE cURus	Adjustable Output Universal Input

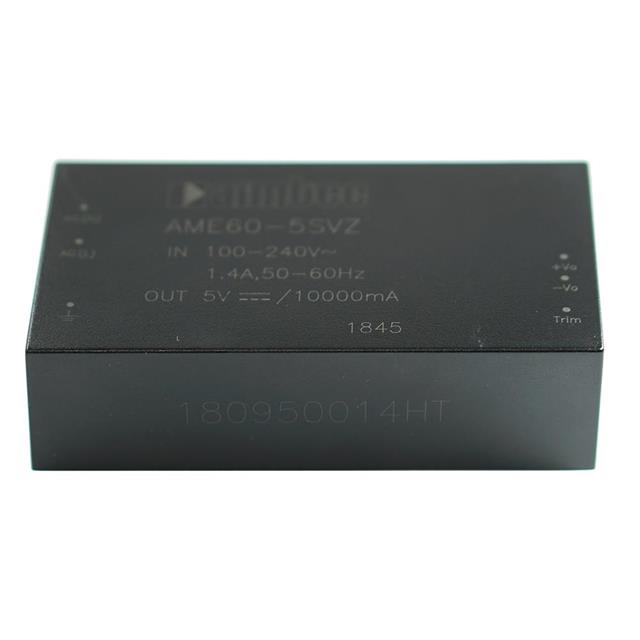

aimtec AME60-24SVZ-ST			24 V	1		Chassis Mount	85 VAC 100 V	264 VAC 370 VDC	Enclosed		60 W		ITE (Commercial)			86 %			Universal Input	4000 V	70 mm	1.52 in	5.32 "	2.76 "	38.5 mm	135 mm	70 °C	-40 C	2.5 A

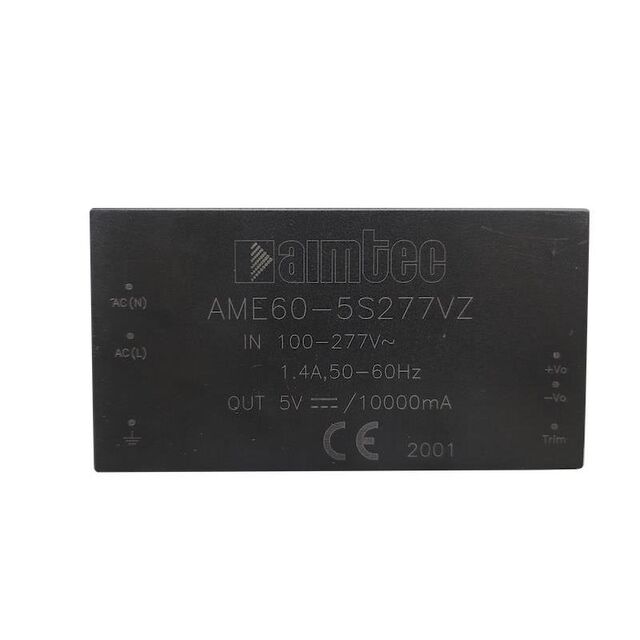

aimtec AME60-15S277VZ	0.661 lb	300 g	15 V	1	6-DIP Module	Through Hole	85 VAC 100 V	305 VAC 430 VDC	Enclosed	0.5 %	60 W	62368-1	ITE (Commercial)		±1%	86 %														4 A
aimtec AME60-5SVZ	0.683 lb	310 g	5 V	1	6-DIP Module	Through Hole	85 VAC 100 V	264 VAC 370 VDC	Enclosed	0.5 %	50 W		ITE (Commercial)		±1%				Universal Input											10 A
aimtec AME60-15SVZ	0.683 lb	310 g	15 V	1	6-DIP Module	Through Hole			Enclosed	0.5 %	60 W		ITE (Commercial)		±1%	86 %			Universal Input											4 A
aimtec AME60-48SVZ	0.683 lb	310 g	48 V	1	6-DIP Module	Through Hole			Enclosed	0.5 %	60 W		ITE (Commercial)		±1%	86 %			Universal Input											1.25 A
aimtec AME60-24S277VZ	0.661 lb	300 g	24 V	1	6-DIP Module	Through Hole	85 VAC 100 V	305 VAC 430 VDC	Enclosed	0.5 %	60 W	62368-1	ITE (Commercial)		±1%	86 %														2.5 A
aimtec AME60-12SVZ-ST			12 V	1		Chassis Mount	85 VAC 100 V	264 VAC 370 VDC	Enclosed		60 W		ITE (Commercial)			86 %			Universal Input	4000 V	70 mm	1.52 in	5.32 "	2.76 "	38.5 mm	135 mm	70 °C	-40 C	5 A
aimtec AME60-48SVZ-ST			48 V	1		Chassis Mount			Enclosed		60 W	62368-1	ITE (Commercial)			86 %			Adjustable Output Universal Input	4000 V	70 mm	1.52 in	5.23 in	2.76 "	38.5 mm	135 mm			1.25 A
