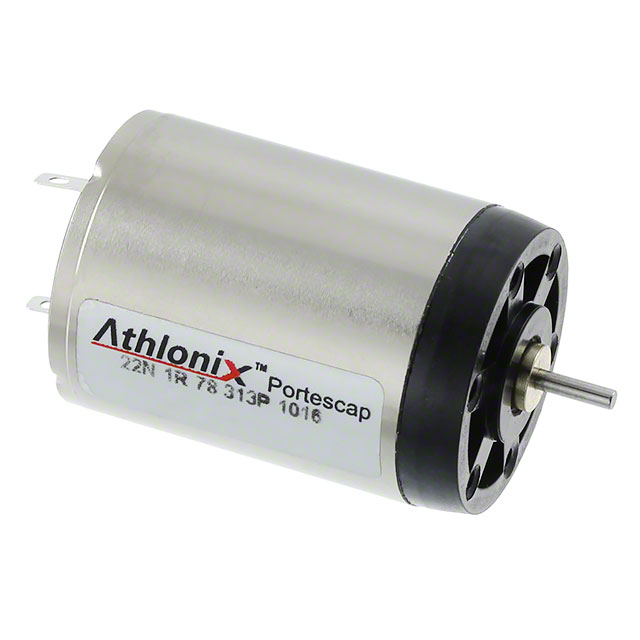

22N 1R 78 Series
Manufacturer: Portescap
Beta
⌘K
STANDARD MOTOR 10000 RPM 9V
| Part | Weight | Weight | RPM | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] | Torque - Rated (oz-in / mNm) | Torque - Rated (oz-in / mNm) | Power - Rated | Length - Shaft and Bearing | Length - Shaft and Bearing [x] | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Type | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Motor Type | Size / Dimension | Size / Dimension | Function | Voltage - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Portescap | 0.117 lb | 53.07 g | 10000 RPM | 17 mm | 0.669 in | 14.5 mNm | 2.05 oz-in | 12 W | 7.5 mm | 0.295 " | 1.5 mm | 0.059 in | DC Motor | Solder Tab | 85 °C | -30 ░C | Brushed | Round | 0.866 in 22 mm | Standard | 9 V |
