X0403 Series

Catalog

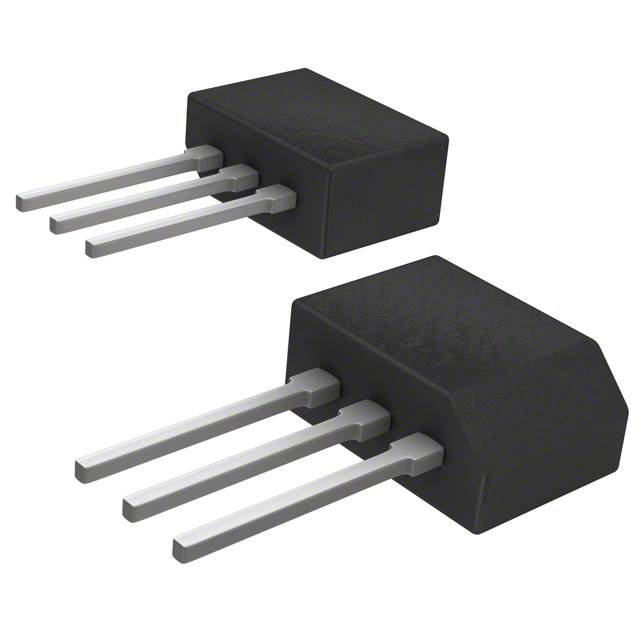

SCR 600V 1.35A TO202-3

Part	SCR Type	Current - On State (It (RMS)) (Max) [Max]	Current - Off State (Max) [Max] [custom]	Current - On State (It (AV)) (Max) [Max]	Voltage - On State (Vtm) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Voltage - Off State	Package / Case	Current - Hold (Ih) (Max) [Max]	Supplier Device Package	Voltage - Gate Trigger (Vgt) (Max)	Current - Gate Trigger (Igt) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type
STMicroelectronics X0403MF 1AA2	Sensitive Gate	1.35 A	5 µA	900 mA	1.8 V	30 A 33 A	600 V	TO-202 No Tab	5 mA	TO-202-3	800 mV	200 µA	125 °C	-40 C	Through Hole
