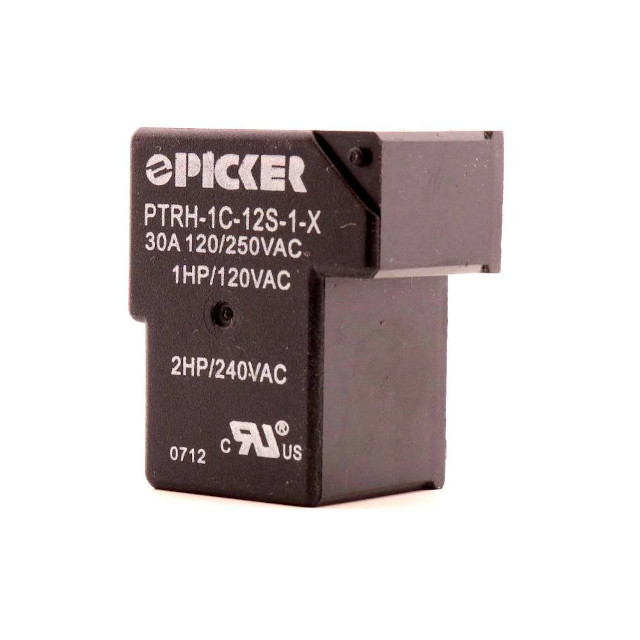

PTRH-1C Series
Manufacturer: Picker Components
Beta
⌘K
RELAY GEN PURPOSE SPDT 30A 12V
| Part | Coil Resistance | Termination Style | Relay Type | Contact Rating (Current) | Mounting Type | Must Release Voltage | Coil Type | Coil Current | Approval Agency | Contact Form | Operating Temperature (Max) | Operating Temperature (Min) | Seal Rating | Load - Max Switching (Apparent Power) | Load - Max Switching (Real Power) | Operate Time | Switching Voltage AC (Max) | Switching Voltage DC (Max) | Contact Material | Release Time | Coil Insulation | Must Operate Voltage | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Picker Components | 150 Ohms | PC Pin | General Purpose | 30 A | Through Hole | 1.2 V | Non Latching | 80 mA | cUL cURus UL | 1 C Form SPDT | 100 °C | -40 °C | Fully Sealed | 9000 VA | 3300 W | 15 ms | 300 VAC | 110 VDC | Silver Cadmium Oxide (AgCdO) | 10 ms | Class B | 9 VDC | 12 VAC |
